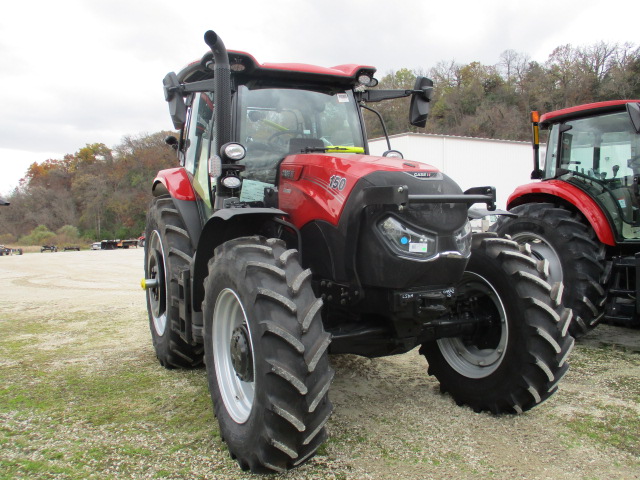

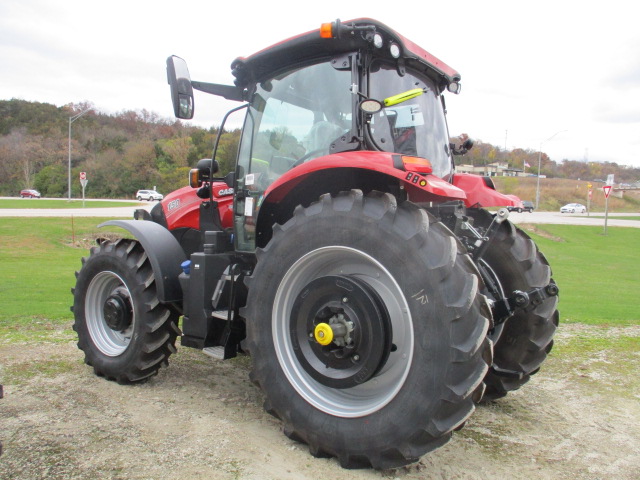

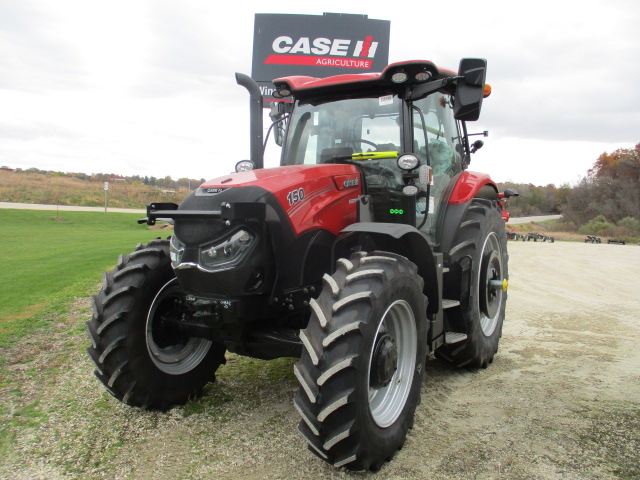

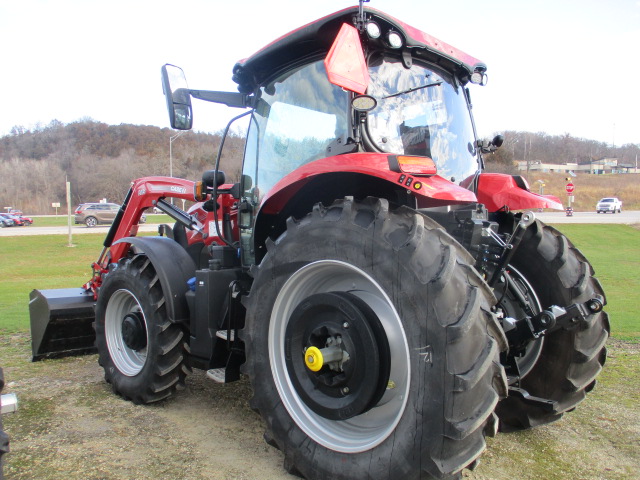

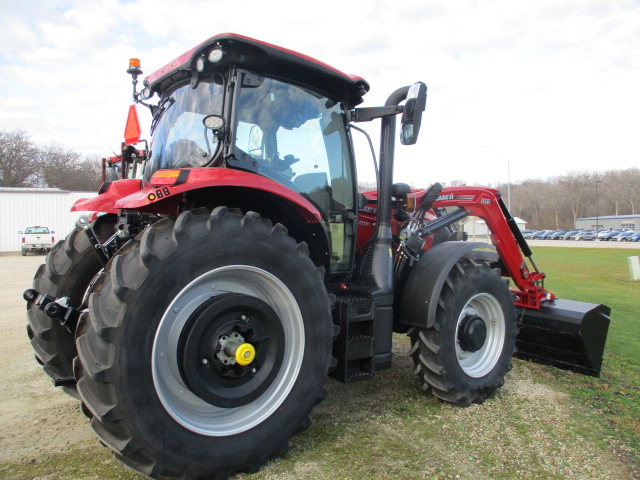

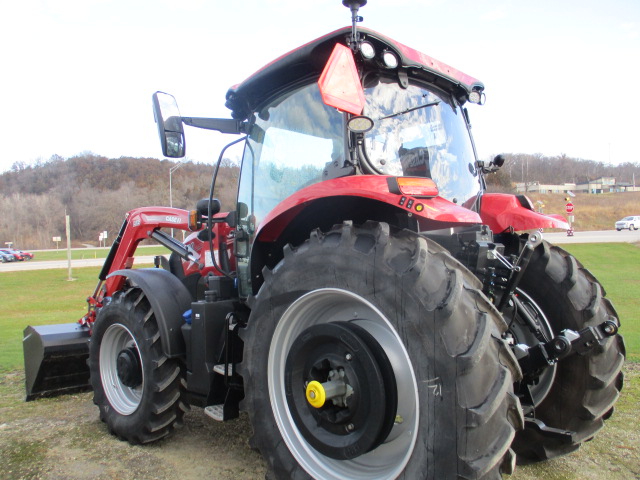

2025 Case IH MAXXUM 150HP ACTIVEDRIVE8 STGV Tractor

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

• CIH Standard Package / Includes: ENG STG V W/Boost, Vistronic Fan, Std Fuel / Tank+Guard OR Large Fuel Tank+Guard, Basic Auto Feature / OR ADV Trans Auto Feat, HD Flange Multi-Diff OR HID Bar / Steel Multi-Diff, STD. Heavy Duty Brake Discs, End of Row / Function, HD Battery 176AH OR HVY DTY BTY MECH ISO, / Less Radar, A Pillar CIH Enhanced Instru, Deluxe Radio, / STD L/ 7P PLUG ON F, CCLS PUMP, 3 ELECT HYD Rear / Remote Valve OR 4 ELECT HYD Rear Remote Valve, Low- / Pressure Return, Deluxe Air U
• Suspended_Cab / Two shocks mounted in rear of cab increase operator comfort / Reduces shock loads transmitted to the tractor by up to 25% / When coupled with a suspended axle, the ultimate in ride comfort / is achieved / Includes tinted rear window
• Deluxe Mounitor Bracket / Deluxe monitor rail with harness guide and 2 USB Power Ports.
• Less Armrest Monitor.
• Deluxe radio with blue tooth and high premium speakers
• Deluxe Air Up/Down Head Rest / Deluxe Seat with Low Frequency Air Suspension
• Instructional Seat with Belt / Includes seatbelt / Cloth/Leather will match operator seat
• Less Rear Cab Storage Box
• Air Conditioning_ / Air Conditioning
• Rear Window Wiper / Includes a rear windshield wiper: Allows for easier rear window / cleaning, especially in dusty conditions with sharp sun angles into / the cab
• No Rear Window Sunshade
• Std Steering Wheel / Standard, non-leather steering wheel
• Standard Steering
• Smart Self Cancekkubg Stalks
• 2 Tele/Heat/Rem Adj Mirror / 2 Telescopic, Heated, Remote Adjustable Mirrors: Shatter proof / with Large Head and Spotter 7.9" x 11.8" (200 x 300 mm)
• A Pillar CIH Enhanced Instrum / Includes oil, brake, PTO speed, hitch, reset, electronic remote flow / and timer (when equipped), engine hours, fault codes, egress light settings. / Also includes A-Post data display, slip control, area worked, tractor performance monitoring.

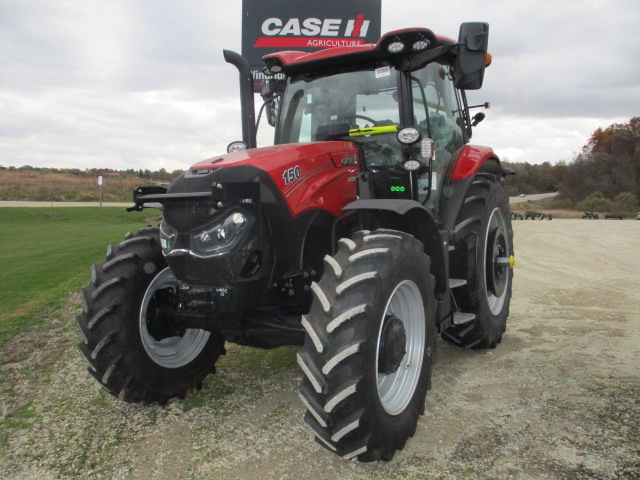

• New Grill Styling with LED High Spec Hood Lights / 2 halogen roadlights 4 led worklights 2 led signature lights
• 12 LED High Power Hi-Roof / High Power LED lights produce 1950 Lumens / 4 front roof-mounted LED work lights / 4 rear roof-mounted LED work lights / 2 front grab rail-mounted LED work lights / 2 rear post-mounted LED work lights / 2 halogen road hood lights / 2 halogen work hood lights
• High Headlight Righthand DIP / 2 Grab Rail-mounted headlights - remain on for road transport. / These lights assist in visibility during transport with a loader or / front 3-point hitch mounted implement.
• LED Rotary Beacon LHS
• Less P&CM Module & HW / Less P&CM Module & HW
• End of Row Function
• Less Telematics
• Less Autoguidance
• Enigne Stage V With Boost / Elect. Fuel pump - 4 valves with Power Boost
• Vistronic Fan / Can vary speed independent of engine speed, based on the / demand for cooling
• 170A ALTERNATOR
• Engine Speed Management / Constant Engine RPM (CERPM) Functions / Allows operator to set and switch between two engine RPM / set-points / Switches located on RH console
• Grid_Heater + 110V Pack / Improves cold weather starting abilities; transmission heat / maintainer / 110V Electrical Plug in / Engine block heater includes 2 heaters: 1 for engine block heater / and 1 for transmission and hydraulic heat maintainer / Plugs located side by side, below door opening
• Heavy Duty Battery Mech ISO / Includes mechanical battery isolator switch / Mechanical switch disconnects battery to prevent battery drainage
• Std Fuel Tank+Guard / Includes fuel tank guards / Capacity - 210L (55.4 Gal)
• 40 KPH DCT FD Pump / 23 Speed ActiveDrive 8 Transmission (DCT Style Transmission) up / to 8 Power Shifts per range over 3 ranges / Pushbutton shift, No need for mechanical range lever, No need / to clutch between ranges
• Basic Auto Features / Pedal Kick Down: Enhances acceleration while in autoshift mode / during transport applications / / AutoShift: Automates shifting of gears based on engine load / / Active Clutch II: Allows operator finite inching control by utilizing brake pedal on the tractor
• Less Radar
• Less Pneumatic Trailer Brakes
• Less trailer brakes
• Less Front Linkage
• Standard Less 7P Plug on FHPL / Front Implement Lighting Connector
• Less Tubes for FHPL

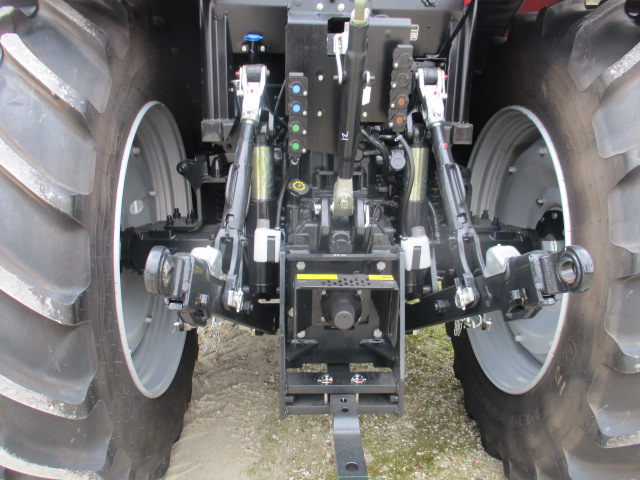

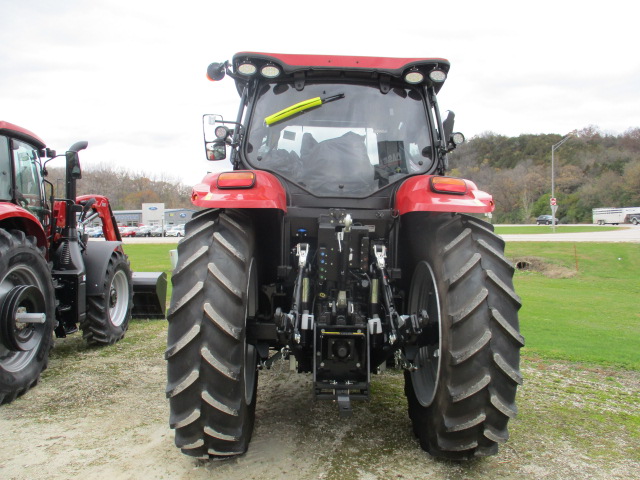

• EDC Base Hydraulic Lift Cyl. / 3-Point Hitch Capacity with two 80mm lift cylinders / 6,990 lbs. (3,170 kg) OECD rated lift capacity / through the whole range per Nebraska Tractor Test
• Cat II/III Flex Links / Telescopic link ends
• CCLS Pump / Pressure Flow Compensating (PFC) Closed Center Load Sensing / Required for electronic rear remote valves and optional for / mechanical rear remote valves / / Max flow available @ remotes* (combined flow) or / power beyond (l/min)considering 90% efficiency- 35.6 gpm (134 l/m)
• 4 Elect Hyd. Rear Remote Valve / 4 electronic rear remotes
• Low-Pressure Return / Low pressure return line with 1/2" hydraulic quick coupler. / ISO 7241 Series A hydraulic quick coupler, non-flat face design. / Does not include load sense line / Requires male end on implement 83972881 (CNH Industrial Parts)
• 540/1000 - Reversible
• Less Auto PTO
• Class 4 Hydraulic Lock / Class 4 MFD axle with multi-plate fully locking, front differential / with steering sensors / 10,803 maximum carrying capacity / Requires 113 L/min pump (758441) / Hydraulic Differential Lock: Multiplate differential lock, engages / when operator engages the rear differential lock / Incompatible with 34 inch rear wheels /
• 380/85(14.9)R30 R1W MI-FI-CM / Brands: Firestone, Mitas, Alliance / Requires 18.4R42 R1W or 14.9R46 R1W
• HD Bar Steel Multi-Diff / HD 98" (2,489 mm) Bar, Hydraulic, Steel Wheel Rims
• 460/85(18.4)R42R1W MI,F,T,C,A / Brands: Alliance, Firestone, Mitas
• Fender EDC/PTO/Rem Valv Contrl / Fender mounted switches for rear PTO, rear three-point hitch, and / third electronic rear remote.
• Front Fender 420mm Dynamic / Recommended for tire sizes less than 420/16.9" / Dynamic front fenders allow the fenders to turn with the tires
• Standard Fenders
• Advanced EH joystick with "live" 3rd function switch. / Included gear shift w/F-R shuttle.
• 2 Electronic MMV / 2 Electronic Mid-Mount Valves / Requires Electronic Joystick

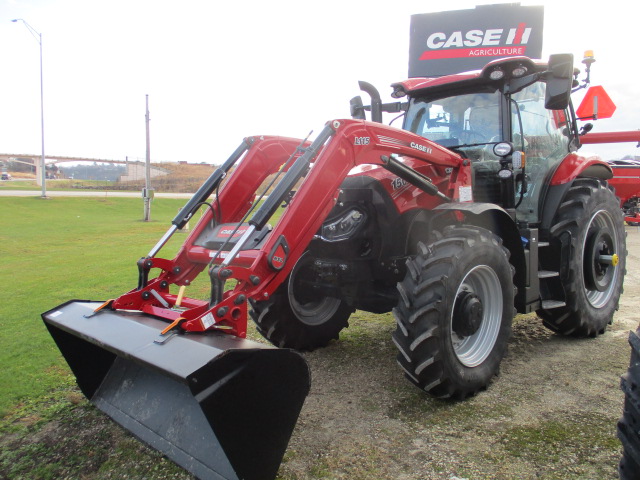

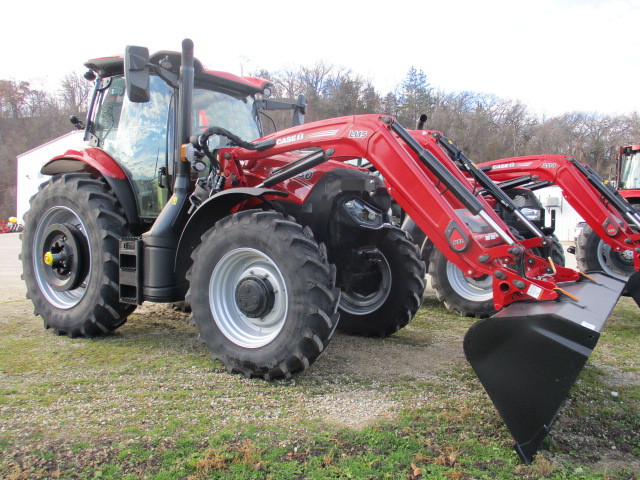

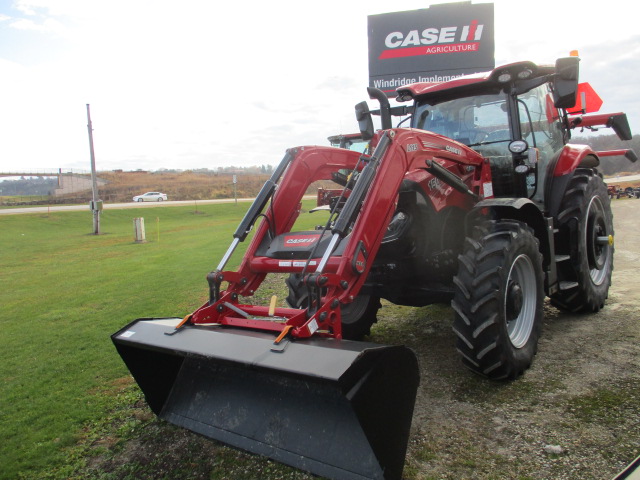

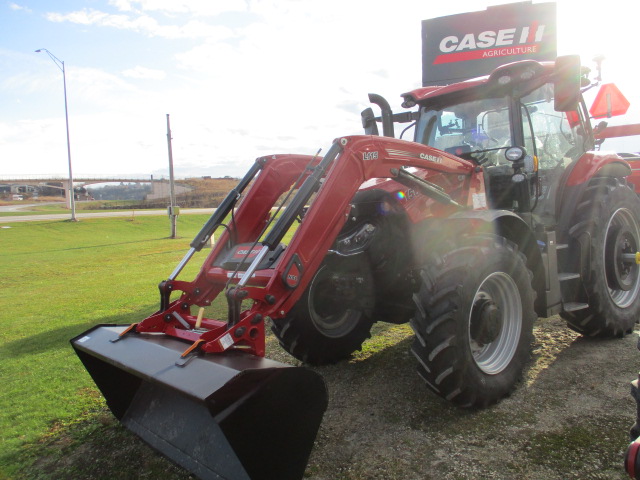

• Ldr Rdy 2 EHMMV+ADVProJoy SL4U / Complete Loader Ready includes: / Advanced Joystick 763174: EHSTICK ADV +/- PROP / 2 Electronic MMV 743689 / TPS Mount Bracket Set (with Grill Guard) and / (Includes valve, joystick, cables, hose kit, and Single-Lever / Hyd Coupler System SL4U)
• No External Air Line_ / No External Air Line
• Tow Hook-Only / Tow Hook 251 lbs/114 kg / Not allowed with Front hitch (743699 or 743700)

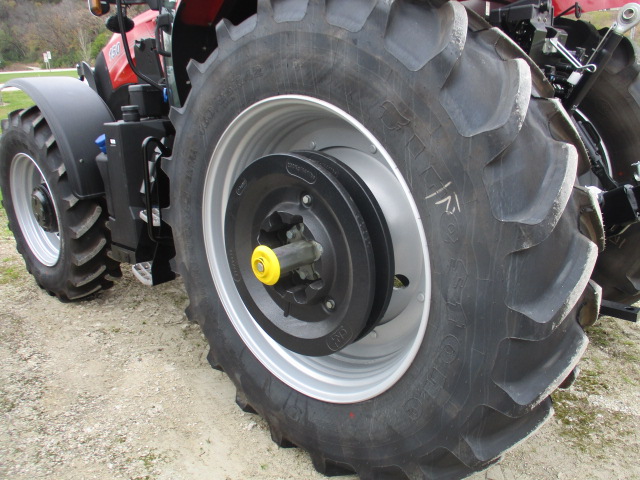

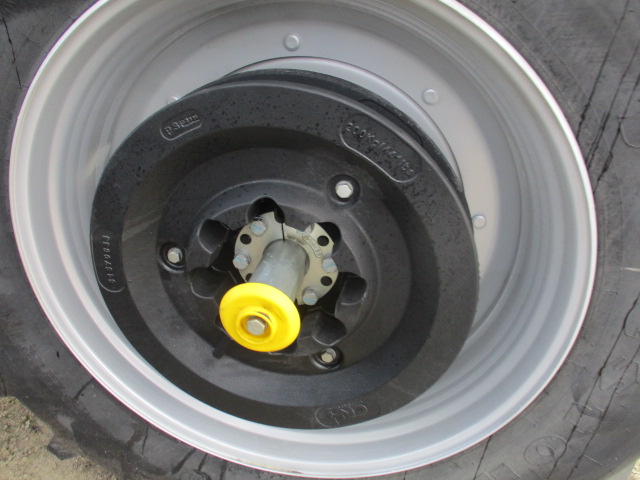

• Rear Wheel Weights 4X200 / Total weight 1760 lbs.
• Less Electronic Parkbrake Lock / Less EPL will prevent full functionality of ISOBUS CL3 automation / There is no DIA kit to install this feature at a later date / EPL must be ordered from the factory
• Extended-Life Brake Discs / Made of a carbon mesh material for a significantly longer life than / the standard brake packs / Recommended for haulage applications
• ISO Class 2+9 Pin In Cab
• Large Toolbox / 5.5 in. x 16.5 in. (140 mm x 420 mm) / Great for larger tools, like hammers and larger wrenches
• Base Color ISO
• Firestone
• English USA / Extra Operators Manual
• NASO Cold Configuration / NASO COLD CONFIG
• NAR Configuration_ / NAR Configuration
• MATERIAL SURCHARGE
