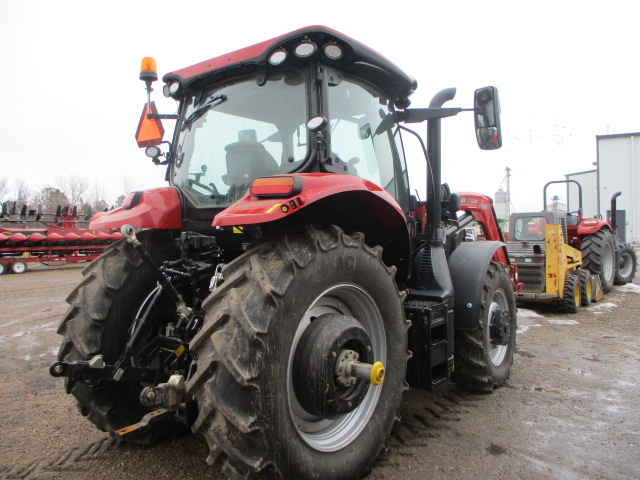

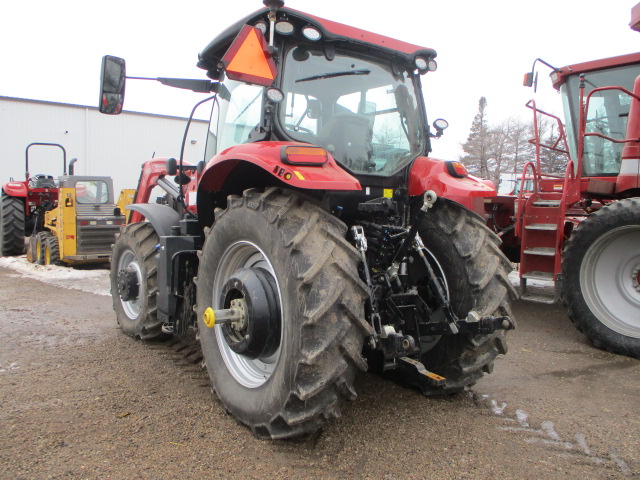

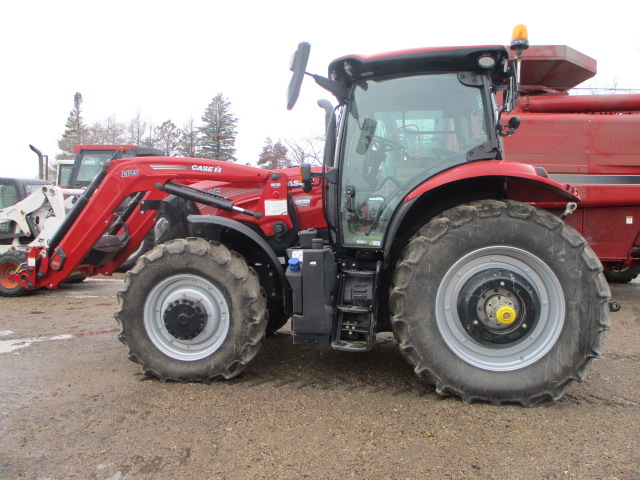

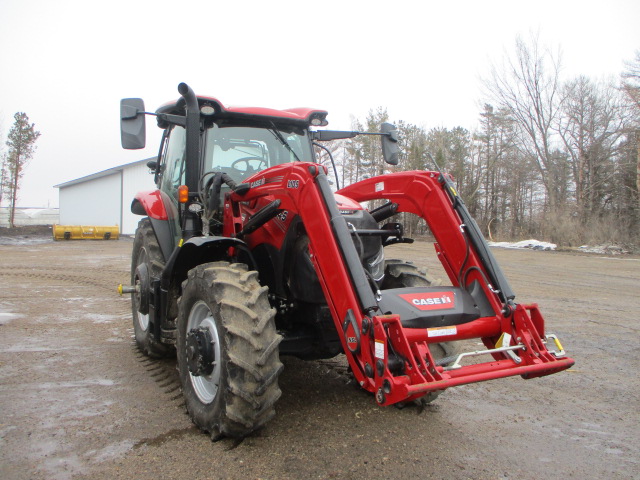

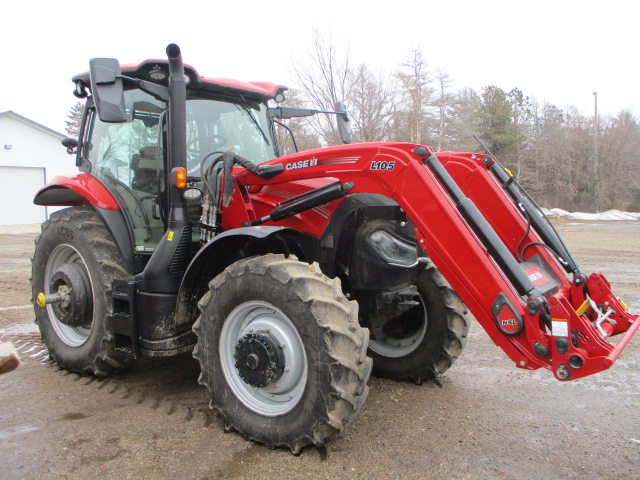

2021 Case IH MAXXUM 145 ACTIVEDRIVE8 ST5 Tractor

Usage

• Eng Hours: 1139.0

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

• *MAXXUM 145 ACTIVEDRIVE8 ST5
• *Less Packaging / No Package selected; Custom premium pricing included in base
• *Suspended_Cab / Two shocks mounted in rear of cab increase operator comfort / Reduces shock loads transmitted to the tractor by up to 25% / When coupled with a suspended axle, the ultimate in ride comfort / is achieved / Includes tinted rear window
• *Deluxe Radio with Bluetooth / Bluetooth Radio including: AM, FM, Micro SD, USB, AUX, and / Bluetooth with noise cancelling microphone. Includes speakers / and wiring.
• *Deluxe Air Up/Down Head Rest / Deluxe Seat with Low Frequency Air Suspension
• *Instructional Seat with Belt / Includes seatbelt / Cloth/Leather will match operator seat
• *Less Rear Cab Storage Box / L/REAR STORAGE BOX
• *Air Conditioning W/ATC / Automatic Temperature Control (ATC). Operator sets desired / temperature and system maintains set temperature.
• *Rear Window Wiper / Includes a rear windshield wiper: Allows for easier rear window / cleaning, especially in dusty conditions with sharp sun angles into / the cab
• *Sunshade, Rear Window / Pull down perforated material sunscreen
• *Std Steering Wheel / Standard, non-leather steering wheel
• *Standard Steering
• *Self-Cancel + Audible Turn / Cancels automatically with the turn of the steering wheel / Sound and dash light indicates turn signal active
• *2 Tele/Heat/Rem Adj Mirror / 2 Telescopic, Heated, Remote Adjustable Mirrors: Shatter proof / with Large Head and Spotter 7.9" x 11.8" (200 x 300 mm)
• *A Pillar CIH Enhanced Instru / Includes oil, brake, PTO speed, hitch, reset, electronic remote flow / and timer (when equipped), engine hours, fault codes, egress light settings. / Also includes A-Post data display, slip control, area worked, tractor performance monitoring.
• *BASIC HOOD LIGHTS / New Grill Styling with updated hoodlights / 2 halogen roadlights 2 halogen worklights
• *14 LED High Power Hi-Roof / High Power LED lights produce 1950 Lumens / 4 front roof-mounted LED work lights / 6 rear roof-mounted LED work lights / 2 front grab rail-mounted LED work lights / 2 rear post-mounted LED work lights / 2 halogen road hood lights / 2 halogen work hood lights
• *Less High Mounted Headlamp / L/HIGH MOUNTED HEADLAMPS
• *Rotary Beacon Lefthand Side / Single Rotary Beacon placed on rear left of tractor for increased / safety and visibility
• *Monitor Mounting Bracket. / Includes Bar mounted in righthand side of cab without Monitor
• *Less Armrest Monitor. / L/ARMEST MONITOR
• *Less Headland Control System / LESS HTS
• *Less Autoguidance / LESS AUTO GUIDANCE
• *ENG STG V W/BOOST / Elect. Fuel pump - 4 valves with Power Boost
• *STD ENG COOLING FAN / STANDARD ENGINE COOLING FAN
• *200 AMP_Alternator / Required for Suspended Cab w/htd screens 758480
• *Engine Speed Management / Constant Engine RPM (CERPM) Functions / Allows operator to set and switch between two engine RPM / set-points / Switches located on RH console
• *Grid_Heater + 110V Pack / Improves cold weather starting abilities; transmission heat / maintainer / 110V Electrical Plug in / Engine block heater includes 2 heaters: 1 for engine block heater / and 1 for transmission and hydraulic heat maintainer / Plugs located side by side, below door opening
• *Hvy Dty Bty Mech ISO / Includes mechanical battery isolator switch / Mechanical switch disconnects battery to prevent battery drainage
• *Std Fuel Tank+Guard / Includes fuel tank guards / Capacity - 210L (55.4 Gal)
• *40 KPH DCT FD PUMP / 23 Speed ActiveDrive 8 Transmission (DCT Style Transmission) up / to 8 Power Shifts per range over 3 ranges / Pushbutton shift, No need for mechanical range lever, No need / to clutch between ranges
• *BASIC AUTO FEATURE / Includes 392359 plus / Pedal Kick Down: Enhances acceleration while in autoshift mode / during transport applications / / AutoShift: Automates shifting of gears based on engine load / / Active Clutch II: Allows operator finite inching control by utilizing brake pedal on the tractor
• *Radar NAR / Provides more accurate speed readings and area measurements / Requires enhanced instrumentation / 758546 A Pillar CIH Enhanced Instru
• *L/ Pneumatic Trailer Brakes / L/PNEU TRAILER BRAKE
• *Less trailer brakes / LESS TRAILER BRAKE
• *Less Front Linkage / L/FRONT LINKAGE & PTO FOR STD FRONT AXLE
• *Std L/ 7P Plug On F / Front Implement Lighting Connector
• *LESS TUBES FOR FHPL
• *EDC Base Hydraulic Lift Cyl. / 3-Point Hitch Capacity with two 80mm lift cylinders / 6,990 lbs. (3,170 kg) OECD rated lift capacity / through the whole range per Nebraska Tractor Test
• *Cat II/III Flex Links / Telescopic link ends
• *CCLS Pump / Pressure Flow Compensating (PFC) Closed Center Load Sensing / Required for electronic rear remote valves and optional for / mechanical rear remote valves / / Max flow available @ remotes* (combined flow) or / power beyond (l/min)considering 90% efficiency- 35.6 gpm (134 l/m) /
• *3 Elect Hyd. Rear Remote Valve
• *Low-Pressure Return / Low pressure return line with 1/2" hydraulic quick coupler. / ISO 7241 Series A hydraulic quick coupler, non-flat face design. / Does not include load sense line / Requires male end on implement 83972881 (CNH Industrial Parts)
• *Auto PTO Management System / Allows PTO to automatically engage/disengage base on rear three-point hitch position. / Enabled via switch on RH console near RH C-pillar
• *Class 4 HD Std Axle / Class 4 Heavy Duty Axle / Includes multi-plate, fully locking differential for extra traction / in slippery conditions / Non-suspended
• *380/85(14.9)R28R1W HD-MIFITRCO / Brands: Trelleborg, Michelin, Firestone, Mitas / Requires: 460(18.4)R38 R1W
• *HD Bar Steel Multi-Diff / HD 98" (2,489 mm) Bar, Hydraulic, Steel Wheel Rims
• *460/85(18.4)R38 R1W-MIFITRCO / Brands: Trelleborg, Michelin, Firestone, Mitas
• *Fender Mounted Controls / Fender mounted switches for rear PTO and rear three-point hitch / for operation from outside cab
• *Front Fender 420mm Dynamic / Recommended for tire sizes less than 420/16.9" / Dynamic front fenders allow the fenders to turn with the tires
• *Standard Fenders
• *EHSTICK ADV +/- PROP / Enhanced Electronic Joystick with Proportional Rocker / Advanced +/- Buttons Enables Gear/Speed shifts / directly from Loader Joystick
• *2 Electronic MMV / 2 Electronic Mid-Mount Valves / Requires Electronic Joystick
• *NA LDR RDY+2MMV+ADV / Complete Loader Ready includes: / Advanced Joystick 759396: EHSTICK ADV +/- PROP / 2 Electronic MMV 743689 / TPS Mount Bracket Set (with Grill Guard) and / (Includes valve, joystick, cables, & hose kit)
• *Tow Hook-Only / Tow Hook 251 lbs/114 kg / Not allowed with Front hitch (743699 or 743700)
• *6X65KG Wheel Weight / Each weight weighs 143 lbs. (65 kg) / 3 weights are on each side on the rear / Total weight = 806 lbs. (389 kg) / Not Compatible with 650/60R38 (8907501 or 8907601)
• *Less electronic parkbrake lock / Less EPL will prevent full functionality of ISOBUS CL3 automation / There is no DIA kit to install this feature at a later date / EPL must be ordered from the factory
• *Extended-Life Brake Discs / Made of a carbon mesh material for a significantly longer life than / the standard brake packs / Recommended for haulage applications
• *ISO CL2+9PIN IN CAB / ISOBUS SOCKET CLASS 2 + IN CAB 9 PIN PLUG
• *Standard Toolbox / 5.5 in. x 12.5 in. (140 mm x 315 mm)
• *Base Color ISO / Includes High Visibility Roof Panel
• *Tire brands are subject to availability. / If the Tire Brand Preference Code is ordered, the plant will / install the brand selected. / / If no Tire Brand Preference is selected, a tire from existing / inventory will be installed. This will include one of the following brands in the chosen tire size: Michelin, Firestone, Trelleborg, Alliance, or Mitas. / / Availability of brands vary by size.
• *No Additional Operator Manual / No Spanish Operator Manual
• L105 loader
• New 84" High Volume Bucket
