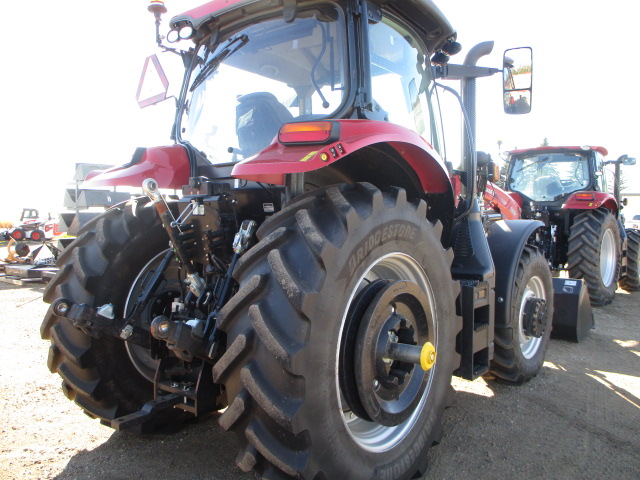

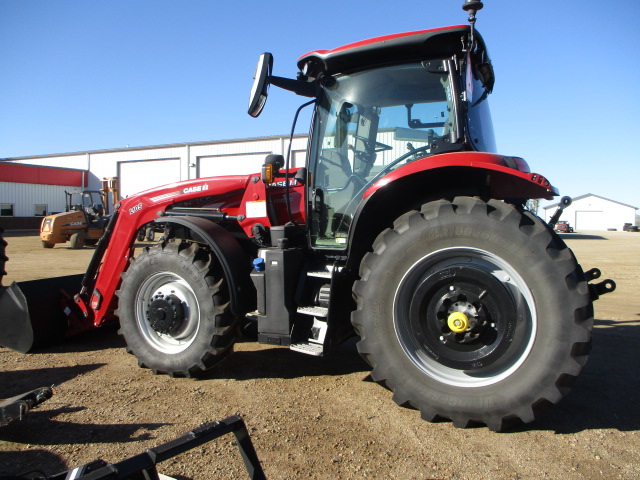

2023 Case IH MAXXUM 145HP ACTIVEDRIVE8 STGV Tractor

Usage

• Eng Hours: 925.8

Sizes

• Engine Horsepower: 145.0
• PTO Horsepower: 120.0

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

• *MAXXUM 145HP ACTIVEDRIVE8 STGV
• *AD8 HD Loader Pack / Includes: ENG STG V W/Boost, Vistonic Fan, Std Fuel / Tank+Guard OR Large Fuel Tank+Guard, 40 KPH DCT FD Pump, / Basic Auto Feature OR ADV Trans Auto Feat, HD Flange Multi- / Diff OR HID Bar Steel Multi-Diff, STD HD Brake Discs, Class 4 / HD STD Axle OR Class 4 Susp + Brake HYD Lock, End of Row / Function, A Pillar CIH Enhanced Instru, Deluxe Radio, EH Joystick, / 3 Electronic MMV, NA LDR RDY+3MMV+ADVmm, Less Front / Linkage, STD L/ 7P PLUG ON F, CCLS PUMP, 3 ELECT HYD / Re *AD8 HD Loader Pack / Includes: ENG STG V W/Boost, Vistonic Fan, Std Fuel / Tank+Guard OR Large Fuel Tank+Guard, 40 KPH DCT FD Pump, / Basic Auto Feature OR ADV Trans Auto Feat, HD Flange Multi- / Diff OR HID Bar Steel Multi-Diff, STD HD Brake Discs, Class 4 / HD STD Axle OR Class 4 Susp + Brake HYD Lock, End of Row / Function, A Pillar CIH Enhanced Instru, Deluxe Radio, EH Joystick, / 3 Electronic MMV, NA LDR RDY+3MMV+ADVmm, Less Front / Linkage, STD L/ 7P PLUG ON F, CCLS PUMP, 3 ELECT HYD / Rea
• *Suspended_Cab / Two shocks mounted in rear of cab increase operator comfort / Reduces shock loads transmitted to the tractor by up to 25% / When coupled with a suspended axle, the ultimate in ride comfort / is achieved / Includes tinted rear window
• *DELUXE MONIT.BRACKET / Deluxe monitor rail with harness guide and 2 USB Power Ports.
• *Less Armrest Monitor. / L/ARMEST MONITOR
• *DELUXE RADIO 743712 / Deluxe radio with blue tooth and high premium speakers
• *Deluxe Air Up/Down Head Rest / Deluxe Seat with Low Frequency Air Suspension
• *Instructional Seat with Belt / Includes seatbelt / Cloth/Leather will match operator seat
• *Less Rear Cab Storage Box / L/REAR STORAGE BOX
• *AIR CONDITIONING 392701 / AIR CONDITIONING
• *Rear Window Wiper / Includes a rear windshield wiper: Allows for easier rear window / cleaning, especially in dusty conditions with sharp sun angles into / the cab
• *Sunshade, Rear Window / Pull down perforated material sunscreen
• *Std Steering Wheel / Standard, non-leather steering wheel
• *Standard Steering
• *SMART SLF CANC STALK / SMART SELF CANCELLING STALKS
• *2 Tele/Heat/Rem Adj Mirror / 2 Telescopic, Heated, Remote Adjustable Mirrors: Shatter proof / with Large Head and Spotter 7.9" x 11.8" (200 x 300 mm)
• *A Pillar CIH Enhanced Instru / Includes oil, brake, PTO speed, hitch, reset, electronic remote flow / and timer (when equipped), engine hours, fault codes, egress light settings. / Also includes A-Post data display, slip control, area worked, tractor performance monitoring.
• *BASIC HOOD LIGHTS / New Grill Styling with updated hoodlights / 2 halogen roadlights 2 halogen worklights
• *8 LED High Power Hi-Roof / High Power LED lights 1950 Lumens / 4 front roof-mounted LED work lights / 4 rear roof-mounted LED work lights / 2 halogen road hood lights / 2 halogen work hood lights
• *High Headlight Righthand DIP / 2 Grab Rail-mounted headlights - remain on for road transport. / These lights assist in visibility during transport with a loader or / front 3-point hitch mounted implement.
• *Rotary Beacon Lefthand Side / Single Foldable LED Beacon on rear left of tractor.
• *LESS P&CM MODULE & H / LESS P&CM MODULE & HW
• *End of Row Function
• *LESS TELEMATICS
• *Less Autoguidance / LESS AUTO GUIDANCE
• *ENG STG V W/BOOST / Elect. Fuel pump - 4 valves with Power Boost
• *VISTRONIC FAN / Can vary speed independent of engine speed, based on the / demand for cooling
• *200 AMP_Alternator / Required for Suspended Cab w/htd screens 758480
• *Engine Speed Management / Constant Engine RPM (CERPM) Functions / Allows operator to set and switch between two engine RPM / set-points / Switches located on RH console
• *Grid_Heater + 110V Pack / Improves cold weather starting abilities; transmission heat / maintainer / 110V Electrical Plug in / Engine block heater includes 2 heaters: 1 for engine block heater / and 1 for transmission and hydraulic heat maintainer / Plugs located side by side, below door opening
• *Hvy Dty Bty Mech ISO / Includes mechanical battery isolator switch / Mechanical switch disconnects battery to prevent battery drainage
• *Std Fuel Tank+Guard / Includes fuel tank guards / Capacity - 210L (55.4 Gal)
• *40 KPH DCT FD PUMP / 23 Speed ActiveDrive 8 Transmission (DCT Style Transmission) up / to 8 Power Shifts per range over 3 ranges / Pushbutton shift, No need for mechanical range lever, No need / to clutch between ranges
• *BASIC AUTO FEATURE / Includes 392359 plus / Pedal Kick Down: Enhances acceleration while in autoshift mode / during transport applications / / AutoShift: Automates shifting of gears based on engine load / / Active Clutch II: Allows operator finite inching control by utilizing brake pedal on the tractor
• *LESS RADAR
• *L/ Pneumatic Trailer Brakes / L/PNEU TRAILER BRAKE
• *Less trailer brakes / LESS TRAILER BRAKE
• *Less Front Linkage / L/FRONT LINKAGE & PTO FOR STD FRONT AXLE
• *Std L/ 7P Plug On F / Front Implement Lighting Connector
• *LESS TUBES FOR FHPL
• *EDC Base Hydraulic Lift Cyl. / 3-Point Hitch Capacity with two 80mm lift cylinders / 6,990 lbs. (3,170 kg) OECD rated lift capacity / through the whole range per Nebraska Tractor Test
• *Cat II/III Flex Links / Telescopic link ends
• *CCLS Pump / Pressure Flow Compensating (PFC) Closed Center Load Sensing / Required for electronic rear remote valves and optional for / mechanical rear remote valves / / Max flow available @ remotes* (combined flow) or / power beyond (l/min)considering 90% efficiency- 35.6 gpm (134 l/m)
• *3 Elect Hyd. Rear Remote Valve
• *Low-Pressure Return / Low pressure return line with 1/2" hydraulic quick coupler. / ISO 7241 Series A hydraulic quick coupler, non-flat face design. / Does not include load sense line / Requires male end on implement 83972881 (CNH Industrial Parts)
• *540/1000 - Reversible / 540/1000 REVERSABLE SHAFT
• *Auto PTO Management System / Allows PTO to automatically engage/disengage base on rear three-point hitch position. / Enabled via switch on RH console near RH C-pillar
• *Class 4 HD Std Axle / Class 4 Heavy Duty Axle / Includes multi-plate, fully locking differential for extra traction / in slippery conditions / Non-suspended
• *380/85(14.9)R28R1W HD-MIFITRCO / Brands: Trelleborg, Michelin, Firestone, Mitas / Requires: 460(18.4)R38 R1W
• *HD Bar Steel Multi-Diff / HD 98" (2,489 mm) Bar, Hydraulic, Steel Wheel Rims
• *460/85(18.4)R38 R1W-MIFITRCO / Brands: Trelleborg, Michelin, Firestone, Mitas
• *Fender EDC/PTO/Rem Valv Contrl / Fender mounted switches for rear PTO, rear three-point hitch, and / third electronic rear remote.
• *Front Fender 420mm Dynamic / Recommended for tire sizes less than 420/16.9" / Dynamic front fenders allow the fenders to turn with the tires
• *Standard Fenders
• *EH JOYSTICK 763174 / Advanced EH joystick with "live" 3rd function switch. / Included gear shift w/F-R shuttle.
• *3 Electronic MMV / 3 Electronic Mid-Mount Valves / Requires Electronic Joystick
• *NA LDR RDY+3MMV+ADV / Complete Loader Ready includes / Advanced Joystick 763174: EHSTICK ADV +/- PROP / 3 Electronic MMV 743690 / TPS Mount Bracket Set (with Grill Guard) and / (Includes valve, Proportional joystick, cables, & hose kit)
• *NO EXTERNAL AIR LINE 393161 / NO EXTERNAL AIR LINE
• *Tow Hook-Only / Tow Hook 251 lbs/114 kg / Not allowed with Front hitch (743699 or 743700)
• *R WHL WEIGHTS 4X200 / REAR WHEEL WEIGHTS 4X200 KG
• *Less electronic parkbrake lock / Less EPL will prevent full functionality of ISOBUS CL3 automation / There is no DIA kit to install this feature at a later date / EPL must be ordered from the factory
• *Std. Heavy Duty Brake Discs / STD HEAVY DUTY BRAKE DISCS
• *ISO CL2+9PIN IN CAB / ISOBUS SOCKET CLASS 2 + IN CAB 9 PIN PLUG
• *Large Toolbox / 5.5 in. x 16.5 in. (140 mm x 420 mm) / Great for larger tools, like hammers and larger wrenches
• *Base Color ISO / BASE COLOUR ISO HIGH ROOF WITH VISIBILITY PANEL
• *Tire brands are subject to availability. / If the Tire Brand Preference Code is ordered, the plant will / install the brand selected. / / If no Tire Brand Preference is selected, a tire from existing / inventory will be installed. This will include one of the following brands in the chosen tire size: Michelin, Firestone, Trelleborg, Alliance, or Mitas. / / Availability of brands vary by size.
• *No Additional Operator Manual / No Spanish Operator Manual
• *NASO COLD CONFIG
• *NAR Configuration
• L105 Loader with new 84" bucket
