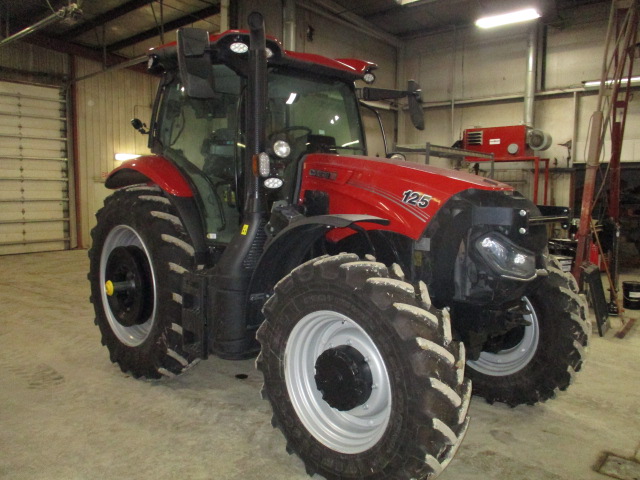

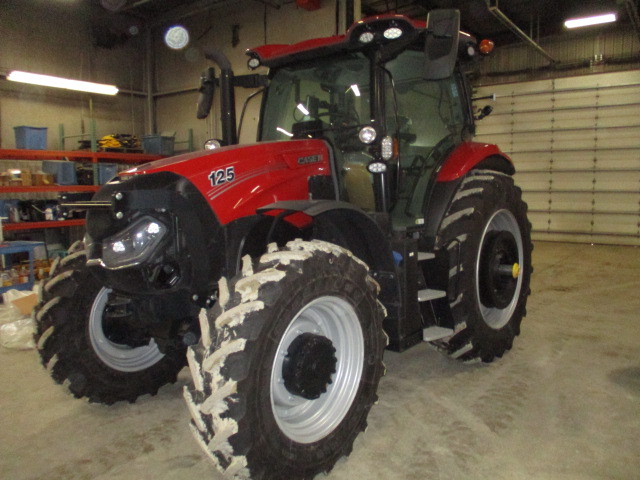

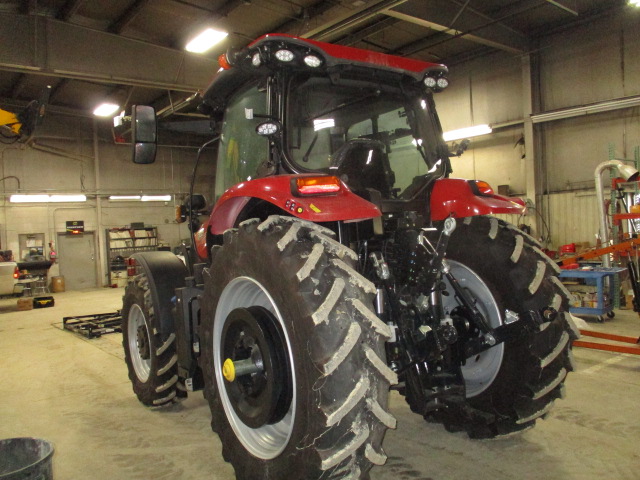

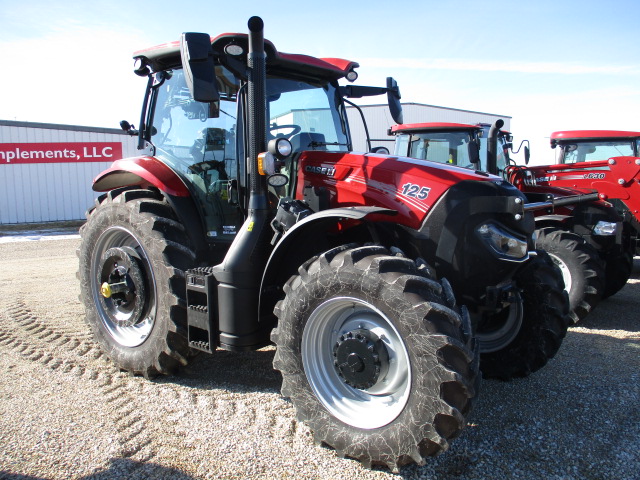

2024 Case IH MAXXUM 125HP ACTIVEDRIVE8 STGV Tractor

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

• TECHNICAL TYPE
• Includes: ENG STG V W/Boost, Vistronic Fan, Std Fuel<BR/> Tank+Guard OR Large Fuel Tank+Guard, Basic Auto Feature<BR/> OR ADV Trans Auto Feat, HD Flange Multi-Diff OR HID Bar<BR/> Steel Multi-Diff, STD. Heavy Duty Brake Discs, End of Row<BR/> Function, HD Battery 176AH OR HVY DTY BTY MECH ISO,<BR/> Less Radar, A Pillar CIH Enhanced Instru, Deluxe Radio,<BR/> STD L/ 7P PLUG ON F, CCLS PUMP, 3 ELECT HYD Rear<BR/> Remote Valve OR 4 ELECT HYD Rear Rem
• Two shocks mounted in rear of cab increase operator comfort<BR/> Reduces shock loads transmitted to the tractor by up to 25%<BR/> When coupled with a suspended axle, the ultimate in ride comfort<BR/> is achieved<BR/> Includes tinted rear window
• AFS PRO 700 PLUS TOUCHSCREEN INC ELECTRICAL<BR/> SOCKETS PHONE HOLDER ONE RAM MOUNT SPARE
• Less Armrest Monitor.
• Deluxe radio with blue tooth and high premium speakers
• Deluxe Seat with Low Frequency Air Suspension
• Includes seatbelt<BR/> Cloth/Leather will match operator seat
• Less Rear Cab Storage Box
• Air Conditioning
• Includes a rear windshield wiper: Allows for easier rear window<BR/> cleaning, especially in dusty conditions with sharp sun angles into<BR/> the cab
• Pull down perforated material sunscreen
• Standard, non-leather steering wheel
• Standard Steering
• Smart Self Cancelling Stalks
• 2 Telescopic, Heated, Remote Adjustable Mirrors: Shatter proof<BR/> with Large Head and Spotter 7.9" x 11.8" (200 x 300 mm)
• Includes oil, brake, PTO speed, hitch, reset, electronic remote flow<BR/> and timer (when equipped), engine hours, fault codes, egress light settings.<BR/> Also includes A-Post data display, slip control, area worked, tractor performance monitoring.

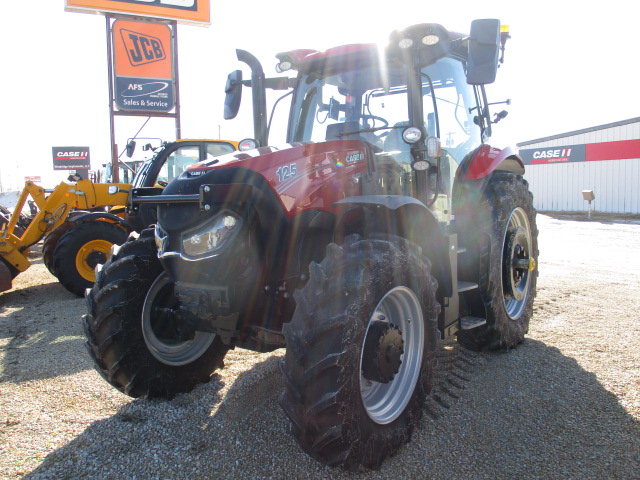

• New Grill Styling with LED High Spec Hood Lights<BR/> 2 halogen roadlights 4 led worklights 2 led signature lights
• High Power LED lights produce 1950 Lumens<BR/> 4 front roof-mounted LED work lights<BR/> 6 rear roof-mounted LED work lights<BR/> 2 front grab rail-mounted LED work lights<BR/> 2 rear post-mounted LED work lights<BR/> 2 halogen road hood lights<BR/> 2 halogen work hood lights
• High Headlight Righthand DIP. Easier to see with front implements<BR/> or a loader filled with material
• rotary beacon on Left cab roof side only
• Less P&CM Module & HW
• Basic Headland Turn System
• Less Telematics
• Less Autoguidance
• ENGINE STAGE 5 W/BOOST - ELECT. FUEL PUMP - 4 VALVES
• Can vary speed independent of engine speed, based on the<BR/> demand for cooling
• Required for Suspended Cab w/htd screens 758480
• Constant Engine RPM (CERPM) Functions<BR/> Allows operator to set and switch between two engine RPM<BR/> set-points<BR/> Switches located on RH console
• Grid heater and 110V engine and transmission block heaters<BR/> with plugs mounted behind cab entry steps
• Mechanical switch mounted outside above battery box on RH side<BR/> of tractor. Disconnects battery to prevent battery drainage.
• Large fuel tank with guards<BR/> Not compatible with 34" Rear Wheels<BR/> 69.4 US Gallons (263L) Capacity
• 24 Speed ActiveDrive 8 Transmission (DCT Style Transmission) up<BR/> to 8 Power Shifts per range over 3 ranges<BR/> Pushbutton shift, No need for mechanical range lever, No need<BR/> to clutch between ranges
• Target Speed Management (APM): Maintains set speed; similar<BR/> to Magnum
• Less Radar
• Less Pneumatic Trailer Brakes
• Less trailer brakes
• Less Front Linkage
• Front Implement Lighting Connector
• Less Tubes for FHPL

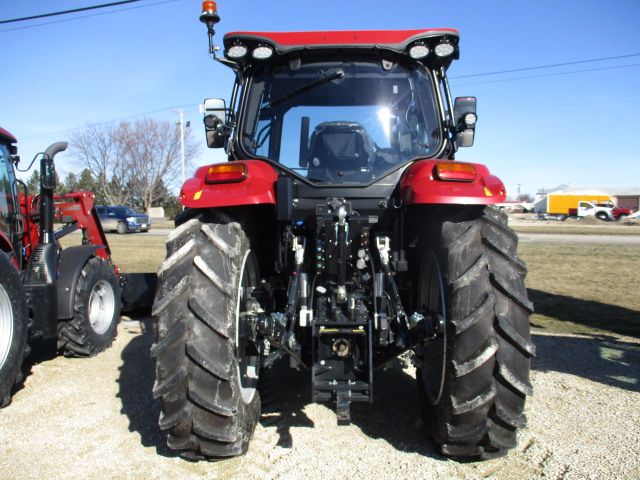

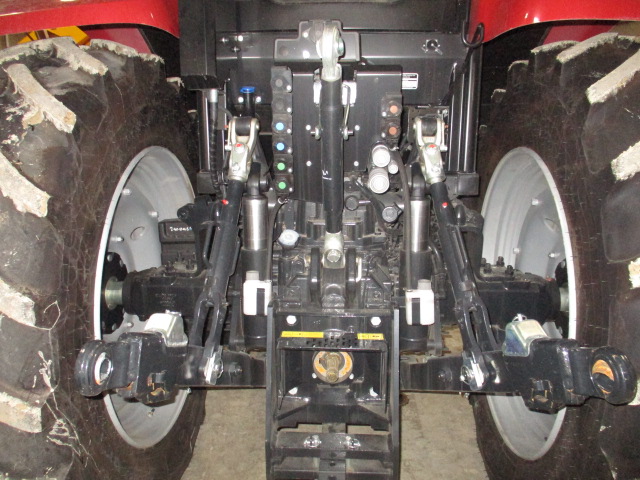

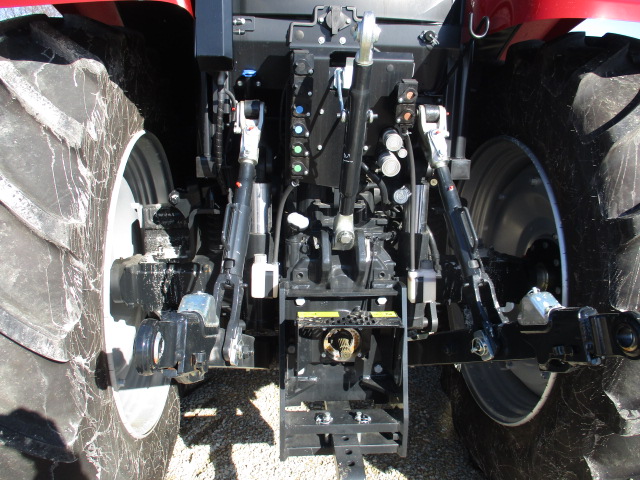

• 3-Point Hitch Capacity with two 80mm lift cylinders<BR/> 6,990 lbs. (3,170 kg) OECD rated lift capacity<BR/> through the whole range per Nebraska Tractor Test
• Rear hitch with North American style link ends for lower and top link
• Pressure Flow Compensating (PFC) Closed Center Load Sensing<BR/> Required for electronic rear remote valves and optional for<BR/> mechanical rear remote valves<BR/> <BR/> Max flow available @ remotes* (combined flow) or<BR/> power beyond (l/min)considering 90% efficiency- 35.6 gpm (134 l/m)
• 4 electro hydraulic rear remotes are controlled by paddles on the armrest, power beyond ready
• Low pressure return line with 1/2" hydraulic quick coupler.<BR/> ISO 7241 Series A hydraulic quick coupler, non-flat face design.<BR/> Does not include load sense line<BR/> Requires male end on implement 83972881 (CNH Industrial Parts)
• 540/1000 - Reversible Shaft
• Allows PTO to automatically engage/disengage base on rear<BR/> three-point hitch position.<BR/> Enabled via switch on RH console near RH C-pillar
• Class 4 Heavy Duty Axle<BR/> Includes multi-plate, fully locking differential for extra traction<BR/> in slippery conditions<BR/> Non-suspended
• Requires 18.4R42 R1W
• HD bar rear axle with Multi diff lock used with steel wheels
• Brands: Alliance, Mitas, Michelin<BR/> Matching Front Tire - 14.9R30 R1W<BR/> - 8258404 (Class 3 Axle)<BR/> Compatible with 31 MPH (50 KPH)<BR/> Adjustable Rims<BR/> - 8258704 (Class 4 Axle)<BR/> Compatible with 31 MPH (50 KPH)<BR/> Adjustable Rims
• Fender mounted switches for rear PTO, rear three-point hitch, and<BR/> third electronic rear remote.
• Less front fender
• Standard Fenders
• Electro-hydraulic advanced joystick with gear and shuttle shifting capability
• 3 Electronic Mid-Mount Valves<BR/> Requires Electronic Joystick

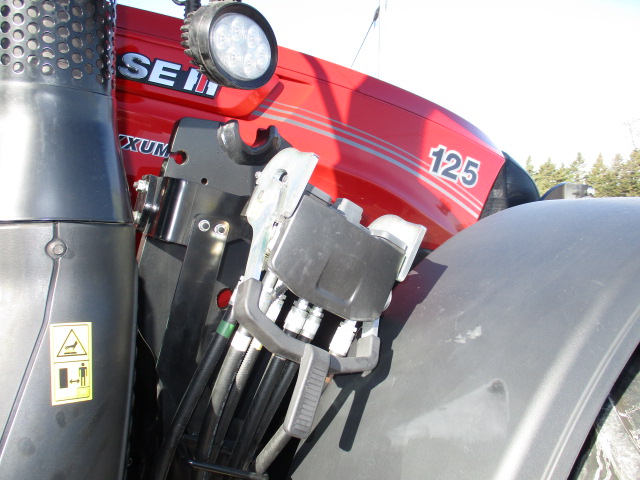

• Complete Loader Ready includes<BR/> Advanced Joystick 763174: EHSTICK ADV +/- PROP<BR/> 3 Electronic MMV 743690<BR/> TPS Mount Bracket Set (with Grill Guard) and<BR/> (Includes valve, Proportional joystick, cables, hose kit,<BR/> and Single_Lever Hyd Coupler System SL6U)
• No External Air Line
• Tow Hook 251 lbs/114 kg<BR/> Not allowed with Front hitch (743699 or 743700)
• Total weight 1760 lbs.
• Electronic Park Lock is require for ISOBUS CL3 automation
• Made of a carbon mesh material for a significantly longer life than<BR/> the standard brake packs<BR/> Recommended for haulage applications
• ISO Class 2+9 Pin In Cab
• 5.5 in. x 16.5 in. (140 mm x 420 mm)<BR/> Great for larger tools, like hammers and larger wrenches
• High Roof Tractor with Visibility Panel
• Tire brands are subject to availability.<BR/> If the Tire Brand Preference Code is ordered, the plant will<BR/> install the brand selected.<BR/> <BR/> If no Tire Brand Preference is selected, a tire from existing<BR/> inventory will be installed. This will include one of the following brands in the chosen tire size: Michelin, Firestone, Trelleborg, Alliance, or Mitas.<BR/> <BR/> Availability of brands vary by size.
• Extra Operators Manual
• Less ABS
• Command Arm Mechanical Remote
• ICP Switch Panel
• Mechanical Armrest Adjustment
• Independent Swinging Drawbar L/Clevis
• Less Front Drawbar
• Mechanical Stabilizer
• L/ID-Sticker
• Less LP Less SMV EM W/7 Pin
• SMV Emblem, Low-Position
• NASO COLD CONFIG
• Less Cesar Security Option
• Standard MGVW
• NAR Configuration
• Less Fire Ext Bracket-Exit Ham
• Less Set Of Tools
• No Plant PDI
• Less Tire Package
• Less Welcome Package
• L/FORESTRY EQUIPMENT
• 200 AMP ALTERNATOR
• TO ADJUST PRICING
• MATERIAL SURCHARGE
