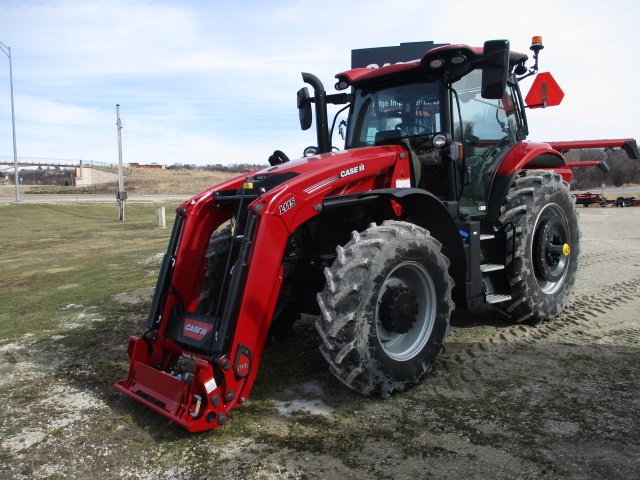

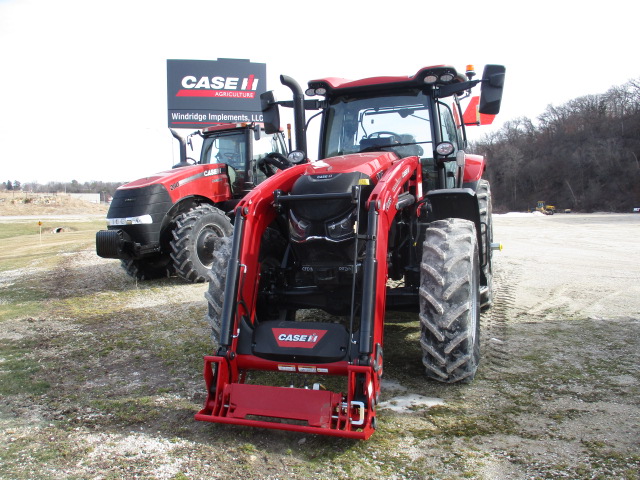

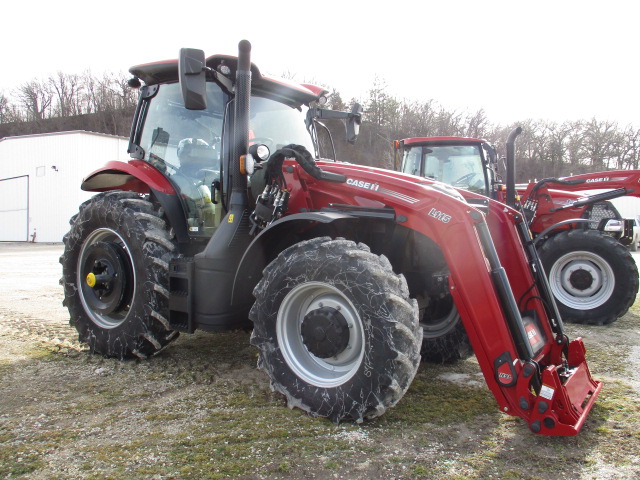

2025 Case IH MAXXUM 125HP ACTIVEDRIVE8 STGV Tractor

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

• TECHNICAL TYPE

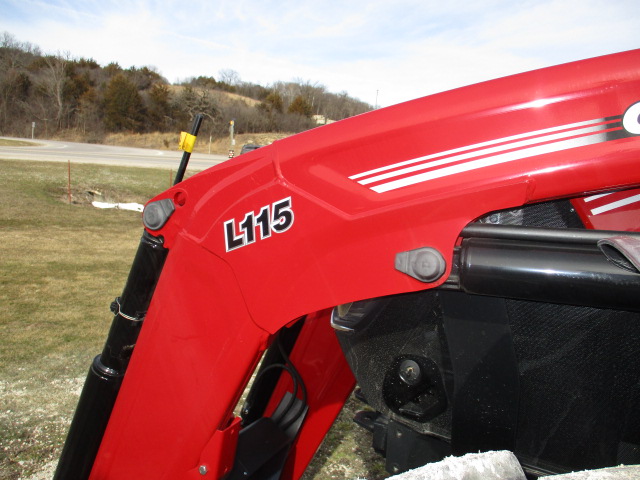

• AD8 HD LOADER PACK CIH LUXURY
• Two shocks mounted in rear of cab increase operator comfort<BR/> Reduces shock loads transmitted to the tractor by up to 25%<BR/> When coupled with a suspended axle, the ultimate in ride comfort<BR/> is achieved<BR/> Includes tinted rear window
• Deluxe monitor rail with harness guide and 2 USB Power Ports.
• Less Armrest Monitor.
• Deluxe radio with blue tooth and high premium speakers
• Deluxe Seat with Low Frequency Air Suspension
• Includes seatbelt<BR/> Cloth/Leather will match operator seat
• Less Rear Cab Storage Box
• Air Conditioning
• Includes a rear windshield wiper: Allows for easier rear window<BR/> cleaning, especially in dusty conditions with sharp sun angles into<BR/> the cab
• Pull down perforated material sunscreen
• Standard, non-leather steering wheel
• Standard Steering
• Smart Self Cancelling Stalks
• 2 Telescopic, Heated, Remote Adjustable Mirrors: Shatter proof<BR/> with Large Head and Spotter 7.9" x 11.8" (200 x 300 mm)
• Includes oil, brake, PTO speed, hitch, reset, electronic remote flow<BR/> and timer (when equipped), engine hours, fault codes, egress light settings.<BR/> Also includes A-Post data display, slip control, area worked, tractor performance monitoring.
• New Grill Styling with LED High Spec Hood Lights<BR/> 2 halogen roadlights 4 led worklights 2 led signature lights
• 8 LED HI PWR HI ROOF
• 2 Grab Rail-mounted headlights - remain on for road transport.<BR/> These lights assist in visibility during transport with a loader or<BR/> front 3-point hitch mounted implement.
• Single LED rotary beacon on Left cab roof side only
• Less P&CM Module & HW
• Basic Headland Turn System
• Less Telematics
• Less Autoguidance
• ENGINE STAGE 5 W/BOOST - ELECT. FUEL PUMP - 4 VALVES
• Can vary speed independent of engine speed, based on the<BR/> demand for cooling
• 170A ALTERNATOR
• Constant Engine RPM (CERPM) Functions<BR/> Allows operator to set and switch between two engine RPM<BR/> set-points<BR/> Switches located on RH console
• Grid heater and 110V engine and transmission block heaters with plugs mounted behind cab entry steps
• Heavy Duty Battery MECH ISO
• Standard fuel tank with guard - 57.5 US Gallons (218L)<BR/> Required for use with 34" rear wheels
• 24 Speed ActiveDrive 8 Transmission (DCT Style Transmission) up<BR/> to 8 Power Shifts per range over 3 ranges<BR/> Pushbutton shift, No need for mechanical range lever, No need<BR/> to clutch between ranges
• Pedal Kick Down: Enhances acceleration while in autoshift mode<BR/> during transport applications<BR/> <BR/> AutoShift: Automates shifting of gears based on engine load<BR/> <BR/> Active Clutch II: Allows operator finite inching control by utilizing brake pedal on the tractor
• Less Radar
• Less Pneumatic Trailer Brakes
• Less trailer brakes
• Less Front Linkage
• Front Implement Lighting Connector
• Less Tubes for FHPL
• 3-Point Hitch Capacity with two 80mm lift cylinders<BR/> 6,990 lbs. (3,170 kg) OECD rated lift capacity<BR/> through the whole range per Nebraska Tractor Test
• Rear hitch with North American style link ends for lower and top link
• Pressure Flow Compensating (PFC) Closed Center Load Sensing<BR/> Required for electronic rear remote valves and optional for<BR/> mechanical rear remote valves<BR/> <BR/> Max flow available @ remotes* (combined flow) or<BR/> power beyond (l/min)considering 90% efficiency- 35.6 gpm (134 l/m)
• 3 electronic rear remotes are controlled by remote paddles on armrest
• Low pressure return line with 1/2" hydraulic quick coupler.<BR/> ISO 7241 Series A hydraulic quick coupler, non-flat face design.<BR/> Does not include load sense line<BR/> Requires male end on implement 83972881 (CNH Industrial Parts)
• 540/1000 - Reversible Shaft
• Allows PTO to automatically engage/disengage base on rear three-point hitch position.<BR/> Enabled via switch on RH console near RH C-pillar
• CLASS 4 HD STANDARD AXLE
• 380/85(14.9)R28R1W HD-MIFITRCO
• HD bar rear axle with Multi diff lock used with steel wheels
• Brands: Trelleborg, Firestone, Mitas, Michelin
• Fender mounted switches for rear PTO, rear three-point hitch, and<BR/> third electronic rear remote.
• Recommended for tire sizes less than 420/16.9"<BR/> Dynamic front fenders allow the fenders to turn with the tires
• Standard Fenders
• Electro-hydraulic advanced joystick with gear and shuttle shifting capability
• 3 ELECTRONIC MMV
• LDR READY 3 EHMMV+ADVPROJJOY SL6
• No External Air Line
• Tow Hook 251 lbs/114 kg<BR/> Not allowed with Front hitch (743699 or 743700)
• Total weight 1760 lbs.
• Electronic Park Lock is require for ISOBUS CL3 automation
• Made of a carbon mesh material for a significantly longer life than<BR/> the standard brake packs<BR/> Recommended for haulage applications
• ISO Class 2+9 Pin In Cab
• 5.5 in. x 16.5 in. (140 mm x 420 mm)<BR/> Great for larger tools, like hammers and larger wrenches
• High Roof Tractor with Visibility Panel
• Firestone
• Extra Operators Manual
• Less ABS
• Command Arm Mechanical Remote
• ICP Switch Panel
• Mechanical Armrest Adjustment
• Independent Swinging Drawbar L/Clevis
• Less Front Drawbar
• Mechanical Stabilizer
• L/ID-Sticker
• Less LP Less SMV EM W/7 Pin
• SMV Emblem, Low-Position
• NASO COLD CONFIG
• Less Cesar Security Option
• Standard MGVW
• NAR Configuration
• Less Fire Ext Bracket-Exit Ham
• Less Set Of Tools
• No Plant PDI
• Less Tire Package
• Less Welcome Package
• L/FORESTRY EQUIPMENT
