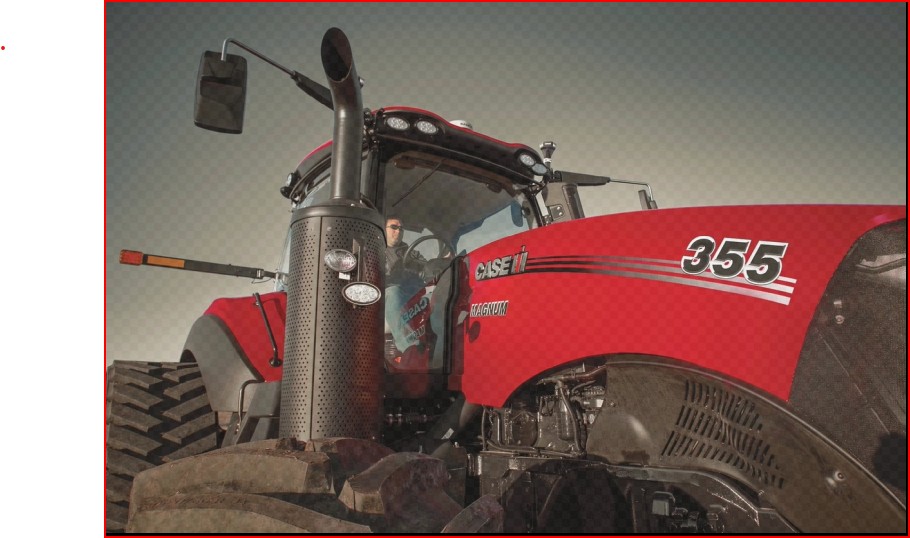

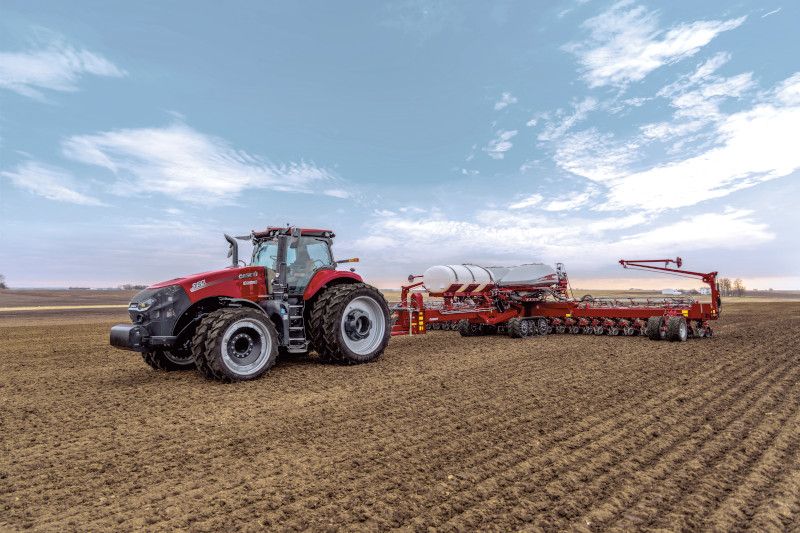

2026 Case IH MAGNUM 355 PS Tractor

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

• TECHNICAL TYPE
• Selecting a Package will remove Custom premium price<BR/> <BR/> Includes:<BR/> <BR/> Powershift Transmission, Engine Compression Brake, Engine/<BR/> Trans heater, Wide Rear Fenders, True Ground Speed Radar,<BR/> CIH Pro 1200, Telematics and File Transfer/Lifetime,<BR/> Powerbeyond, Dual Beacon, 360 Work Lamp Package,<BR/> Brake Assist Steering<BR/> <BR/> Selectable Options: *Some selections are Limited for choice*<BR/>
• Pricing is reflected in option level selections<BR/> <BR/> Precision Technology Package – Advanced Package<BR/> Full AccuGuide with 3 years of NTRIP, Dual Display,<BR/> ISOBUS CL3 AccuTurn and AccuSync
• Factory installed unlock for Automatic End of Row Turn<BR/> capabilities for the life of the Pro 1200 display, along<BR/> with in-field data sharing for the life of the connectivity<BR/> device (P&CM)
• Case IH VectorPro – High Unlocked - GPS Receiver<BR/> With 3-years NTRIP subscription included. Receiver<BR/> capable of running radio or cellular based RTK<BR/> correction signals.
• Dual Case IH Pro 1200. 2 12" Displays, Display on<BR/> Armrest and 2nd Display on headliner
• P&CM Connectivity Included for Pro1200 (Telematics,<BR/> Firmware Over The Air Software Update, File Transfer,<BR/> Agronomic Data, Remote Display View) for the lifetime<BR/> of modem hardware
• PCM3
• Factory installed unlock for ISOBUS Class III for 3rd<BR/> party control of speed, steering, hitch, PTO, Hydraulic<BR/> Remote (EHR)

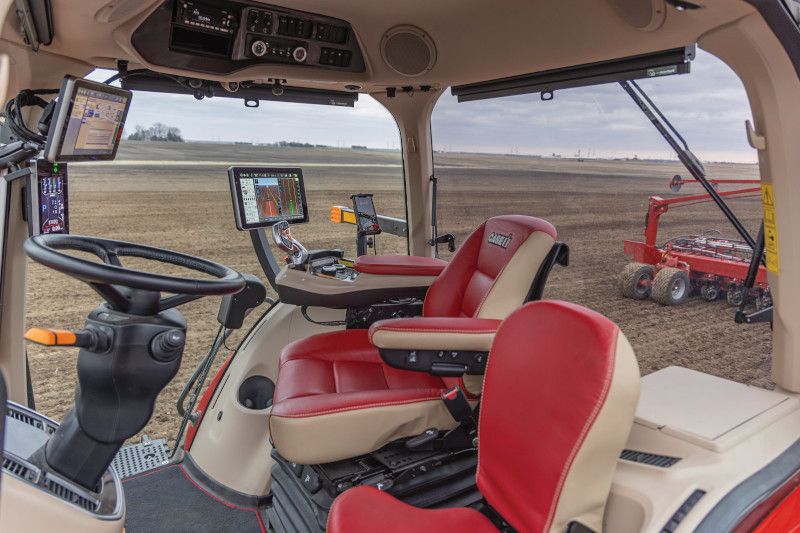

• Deluxe Cab Equipment | Cab Suspension | Tinted Rear<BR/> Glass | Multi-Power strip | Carpet | Leather Semi-Active Heated<BR/> and Ventilated Operator Seat | Leather Instructor Seat | Radio<BR/> Delphi AM/FM/XM Weatherband with CD and Bluetooth |<BR/> Business Band Antenna | 2-way Armrest Adjust | Front, RH,<BR/> and Rear Sunshades | Electronic Telescoping/adjustment External<BR/> Mirrors with Heat | Camera Ready with front and rear Cameras |<BR/>
• Brake assisted steering<BR/>
• Halogen hood lights with LED cab lights<BR/> 8 Cab Roof (1400 lumens) LED lights (2 per corner) and<BR/> 2 Beltline (2500 lumens) LED Lights (1 per side)<BR/> 2 Rear Fender (5000 lumens) LED lights (1 per rear fender)<BR/> Two "360" side (2500 lumen) lights (1 per side)<BR/> <BR/> 360 Work lamp Hood Lights<BR/> 2 LED hood mounted Road Lights<BR/> 6 LED hood mounted Work lights (2 forward spots and<BR/> 4 side flood Lights)<BR/>
• Standard less high mount road lights<BR/>
• 120V
• 400HP
• Optional with full powershift transmissions only. Standard equipment<BR/> with CVT transmission and cannot be ordered with CVT models.
• Hydraulic trailer brake
• Adj. Drawbar with 2.0"/50mm auto-pin hammerstrap<BR/> with hitch pin 11,000lb / 4990 kg max tongue weight
• Note: Front PTO cannot be field installed later with this selection.
• Includes quick coupler<BR/> Quick coupler cannot achieve Cat 3N setting<BR/> Lift Capacity 19,900 lb/ 9,026 kg OECD
• Twin pump configuration supplies 56 gpm to the left<BR/> stack of couplers and 30 gpm to the right stack of<BR/> couplers – configure implement hook-ups to utilize all<BR/> available flow
• 6 EHR levers on the armrest
• Electronic control actuation<BR/> In-cab electronic flow controls with selectable functions<BR/> Includes 6 paddles when 429247 Electronic joystick is not selected<BR/> OR 3 paddles when 429247 Electronic joystick is ordered
• 3/4 in. motor return valve and 3/8 in. case drain
• 1000 RPM, 1-3/4 in. diameter<BR/> 1000 RPM, 1-3/8 in. diameter<BR/> 540 RPM, 1-3/8 in. diameter
• Front axle with electronic differential lock, 12 bolt hub.<BR/> Capable of 120 in./3 m tread spacing for controlled traffic<BR/> farming. May have tire or weight limitations.<BR/> See Dealer Portal.
• Assumes duals are ordered<BR/> Cannot be ordered with No Front Duals (XT4942X)<BR/> <BR/> Match Tires to Intended Application - refer to applicable tire manufacturer's handbook for load carrying capacities and<BR/> additional application information. Tire Brand Preference or<BR/> No Tire Brand Preference option MUST BE SELECTED FROM<BR/> OTHER EQUIPMENT SECTION.
• Goodyear, Firestone, Michelin, Mitas
• AXLE, 120-5 INCH (127MM)
• Assumes duals are ordered<BR/> Cannot be ordered with No Rear Duals (XT4952X)<BR/> <BR/> Match Tires to Intended Application - refer to applicable tire manufacturer's handbook for load carrying capacities and<BR/> additional application information. Tire Brand Preference or<BR/> No Tire Brand Preference option MUST BE SELECTED FROM<BR/> OTHER EQUIPMENT SECTION.
• Goodyear, Firestone, Michelin, Mitas, Trelleborg
• Required with 480 and narrower tires
• Includes Auto PTO function and fender-mounted hitch<BR/> and PTO controls with hitch option
• 962kg/2116.4lbs
• inner 2 x 1000 lb.
• Firestone<BR/>
• Tire pressure Readout on Pro 1200 display, 8 sensors
• Less Rear Wheel Spacers
• 16 inch front wheel cast spacer<BR/>
• North American English
• MODEL YEAR 2026
• Includes control system and factory Installed engine brake
• Less Auxiliary Fuel Filter
• Tire brands are subject to availability.<BR/> <BR/> If a Tire Brand Preference Code is ordered, the plant will<BR/> install the brand selected.<BR/> <BR/> If no Tire Brand Preference is selected, a tire from existing<BR/> inventory will be installed. Availability of brands vary by size.
• No Front Maneuvering Wheels
• No Rear Maneuvering Wheels
• 240 AMP ALTERNATOR
• Standard drawbar less hitch
• Standard Stabilizer
• Less Back-Up Alarm
• L/ IMMOBILIZER
• Standard Color (see model contents)
• Less factory tour<BR/>
• NO TRANSIT COATING
• NO CHOICE
• NO SELECTION
