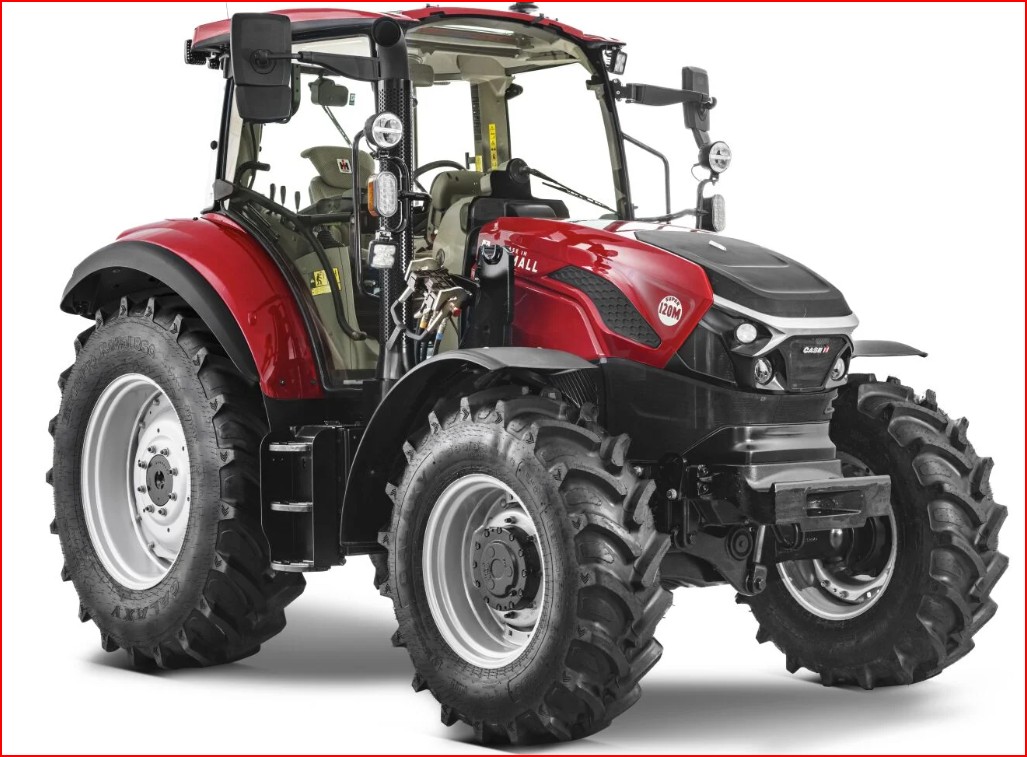

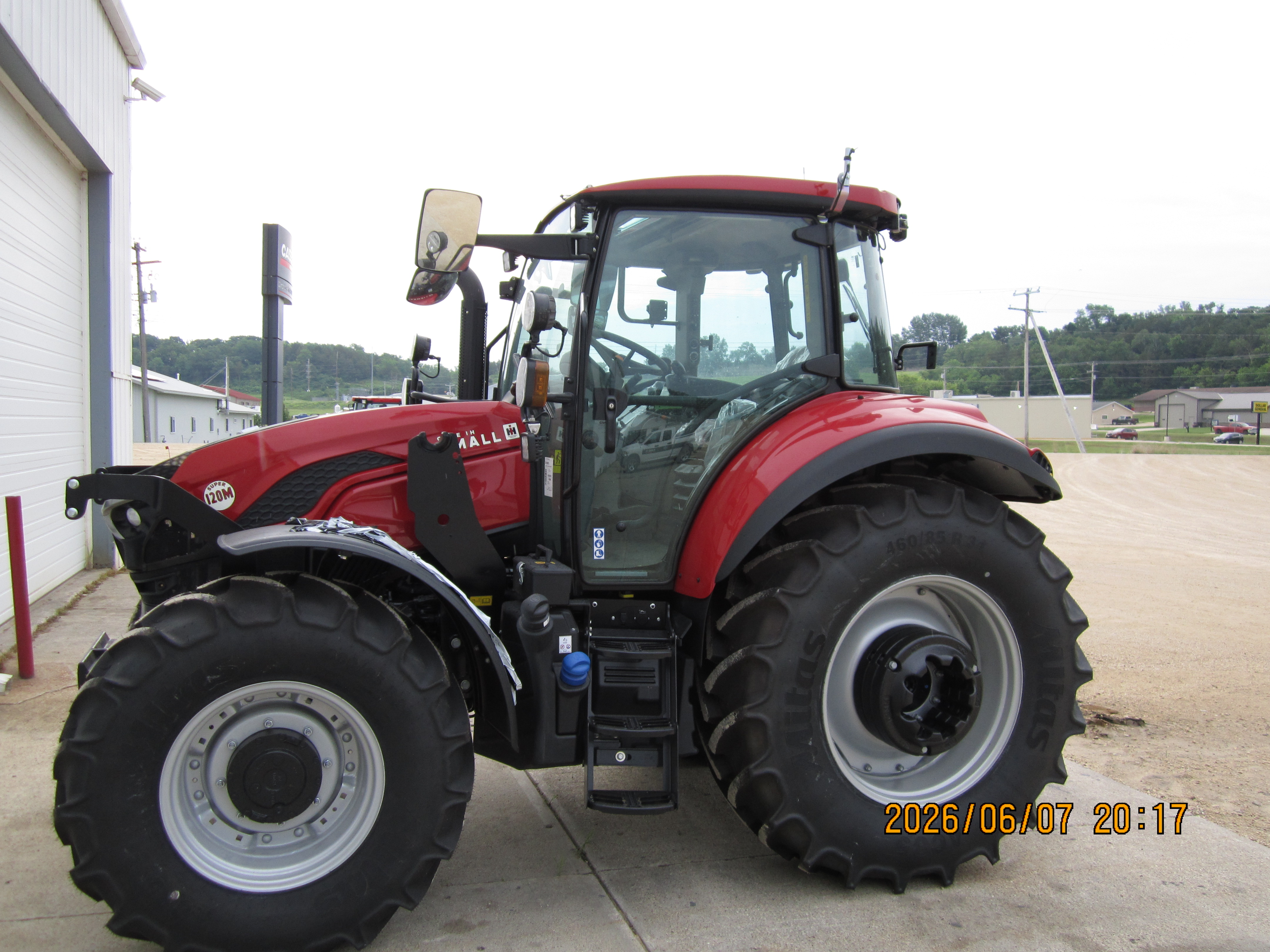

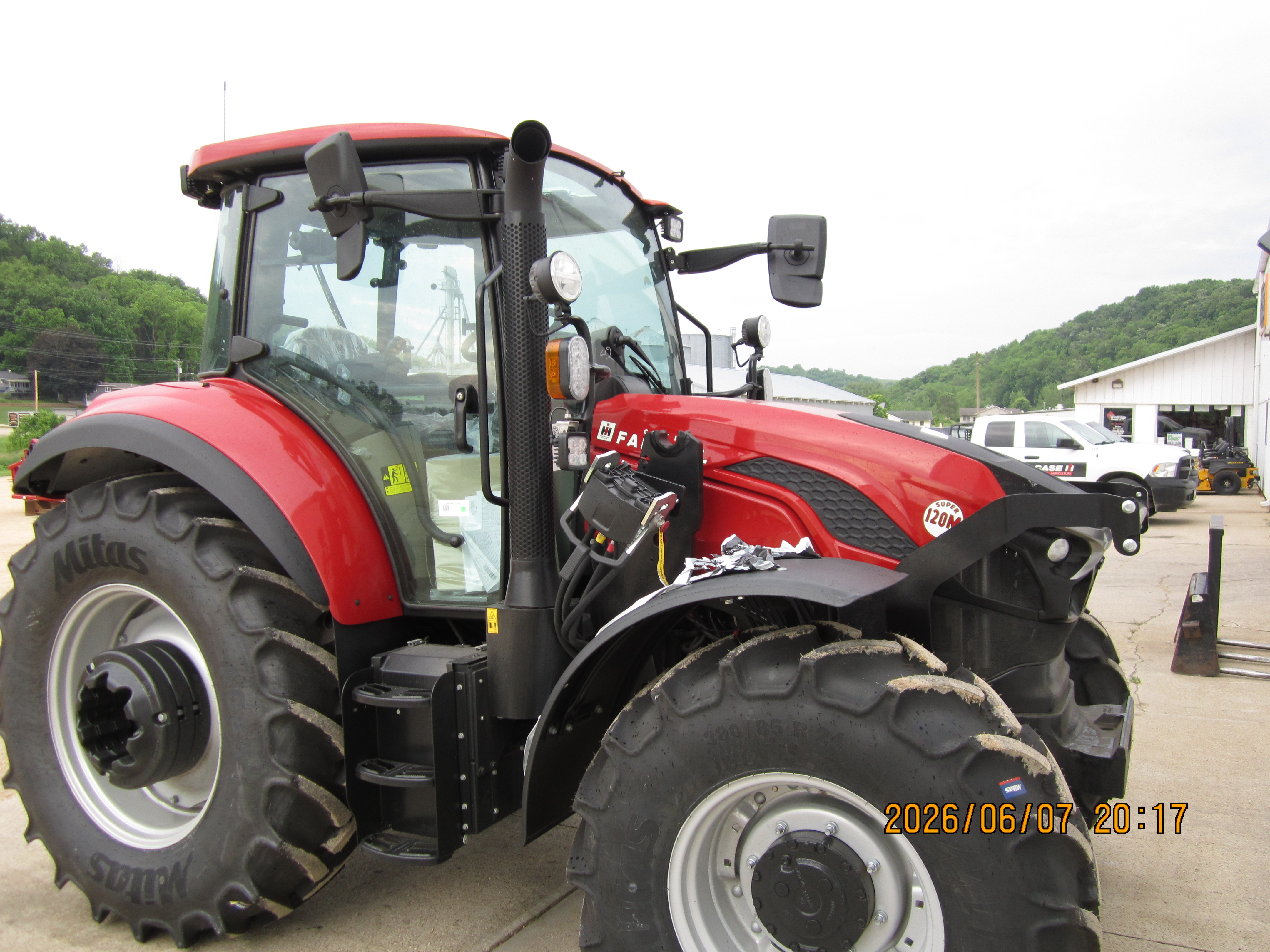

2026 Case IH FARMALL 120 SUPER M Tractor

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

• TECHNICAL TYPE
• <BR/>
• CM1X BASE TELEMATICS LIFETIME SUBSCR
• NOT FOR CANADIAN MARKETS<BR/> <BR/> PCM 4G USA<BR/> 4G P&CM controller for USA Market<BR/> Verizon SIM<BR/> This device provides optimal coverage in a large majority of<BR/> the USA, however, for areas with poor or no Verizon cellular<BR/> coverage order 763950
• - Cab suspension<BR/> - Open side windows<BR/> - Hi vis panel<BR/> - Interior mirror<BR/> - Rear wiper<BR/> - A/C system
• 2 Telescopic Rear Wide Angle Mirrors With Mechanical Adjustment
• 2 Front + 4 Rear Led roof worklights + 2 Led Low/High<BR/> Beam RoadLights Grabrail mounted + 2 Led worklights<BR/> grab rail mounted
• Rotary beacon LED

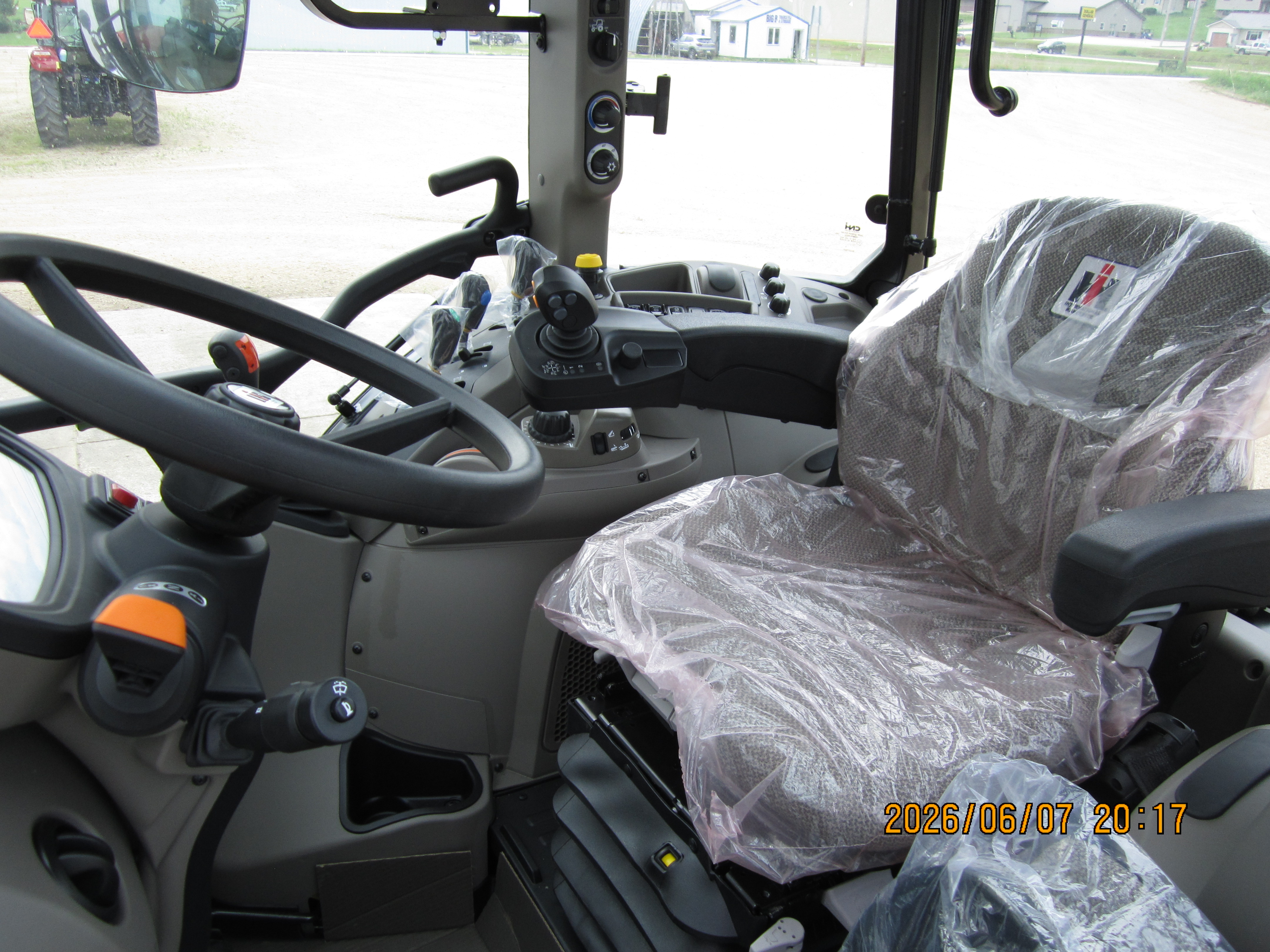

• Optional on 110M<BR/> Standard on 120 Super M<BR/> <BR/> Cloth Seat with Low Frequency Air Suspension<BR/> - Heated cushion<BR/> - Document storage pouch<BR/> - Vertically adjustable headrest<BR/> - Operator Presence Switch<BR/> - Fore and Aft Isolation<BR/> - Mechanical Adjustable Lumbar Support

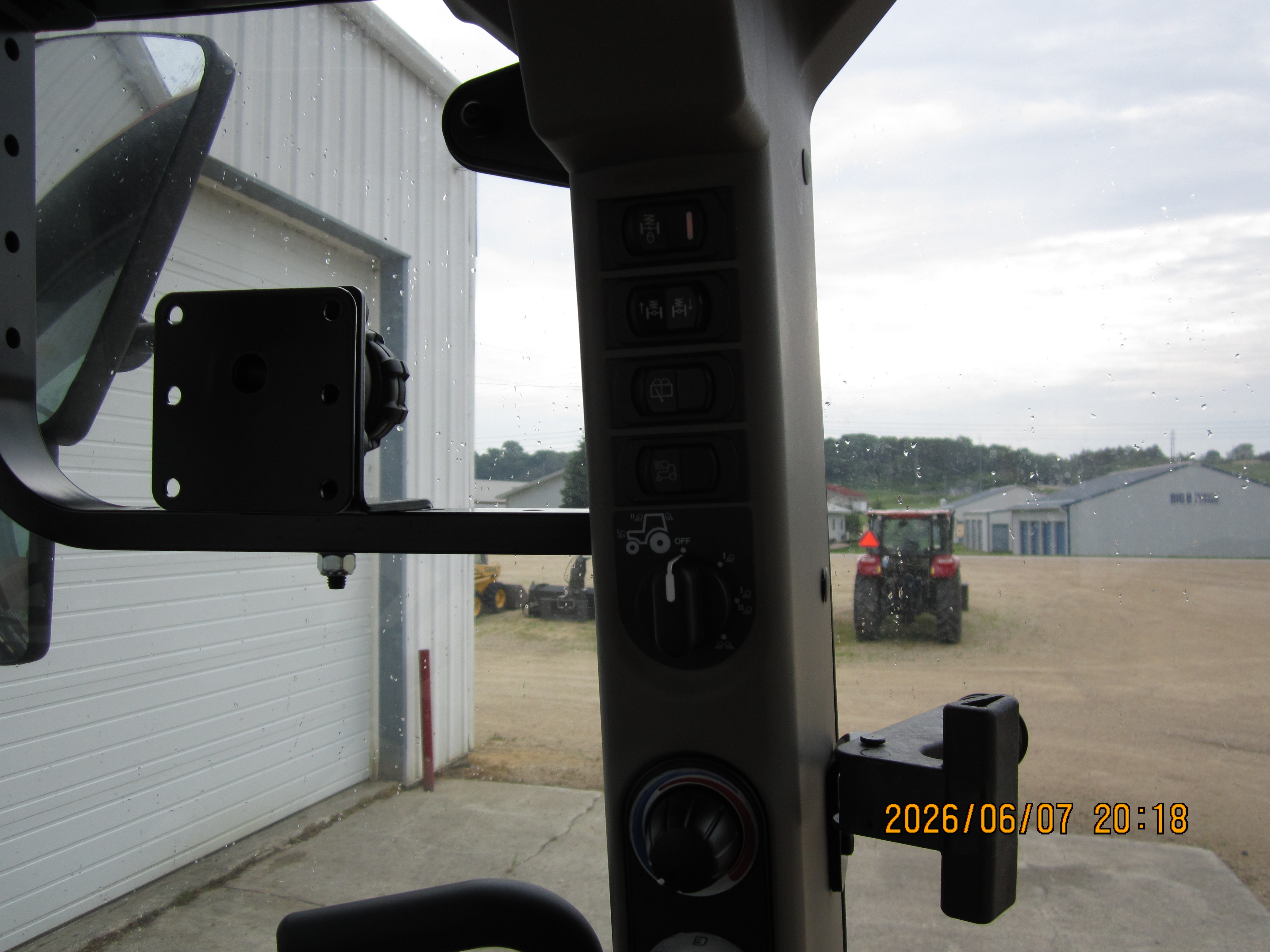

• Bracket for mounting equipment monitor
• Less ISOBUS Socket
• - Engine block heater<BR/> - Transmission oil heater
• 16x16 Electro Command with Auto Function<BR/> 4-speed semi-powershift<BR/> Top speed: 25 mph (40 kph) ECO<BR/> Minimum speed: 1.4 mph (2.2 kph)
• Standard less alarm
• EXT EDC/PTO CONTROLS
• DRAWBAR NAFTA
• Less FHPL - Less PTO with multi carrier
• STD L/ 7P PLUG ON FHPL SUPP.& 3P POW.SOCK.40AMP
• EDC W/2 EXTERNAL CYLINDERS
• -9,998 lb. lift cap (OECD, 90% psi at 24"<BR/> rear of lower link balls)<BR/> -Category II flexible lower link ends<BR/> -Telescopic stabilizers

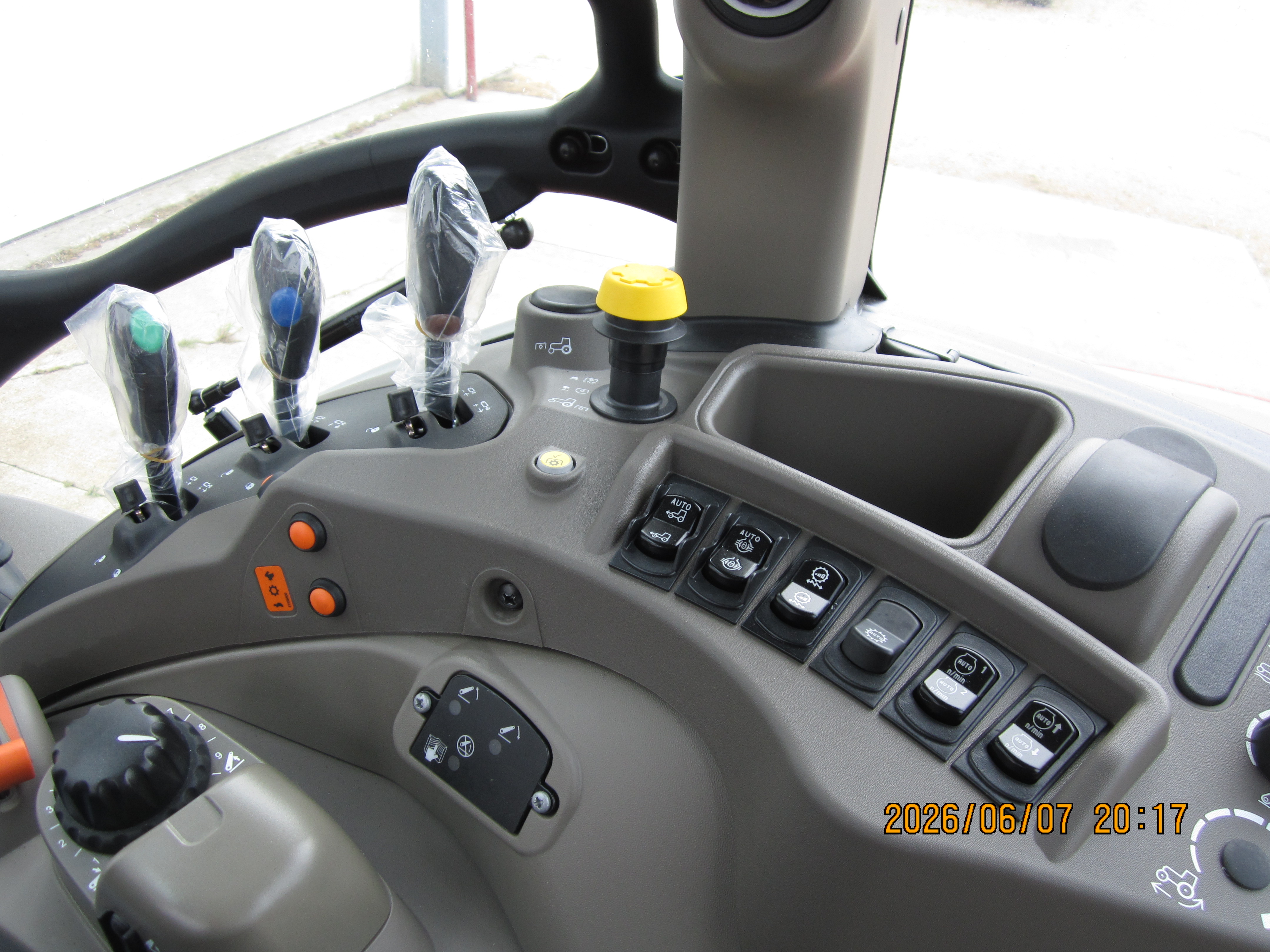

• 3 mechanical rear hydraulic remote valves,<BR/> 2 with configurable detents and 1 with<BR/> non-configurable detent

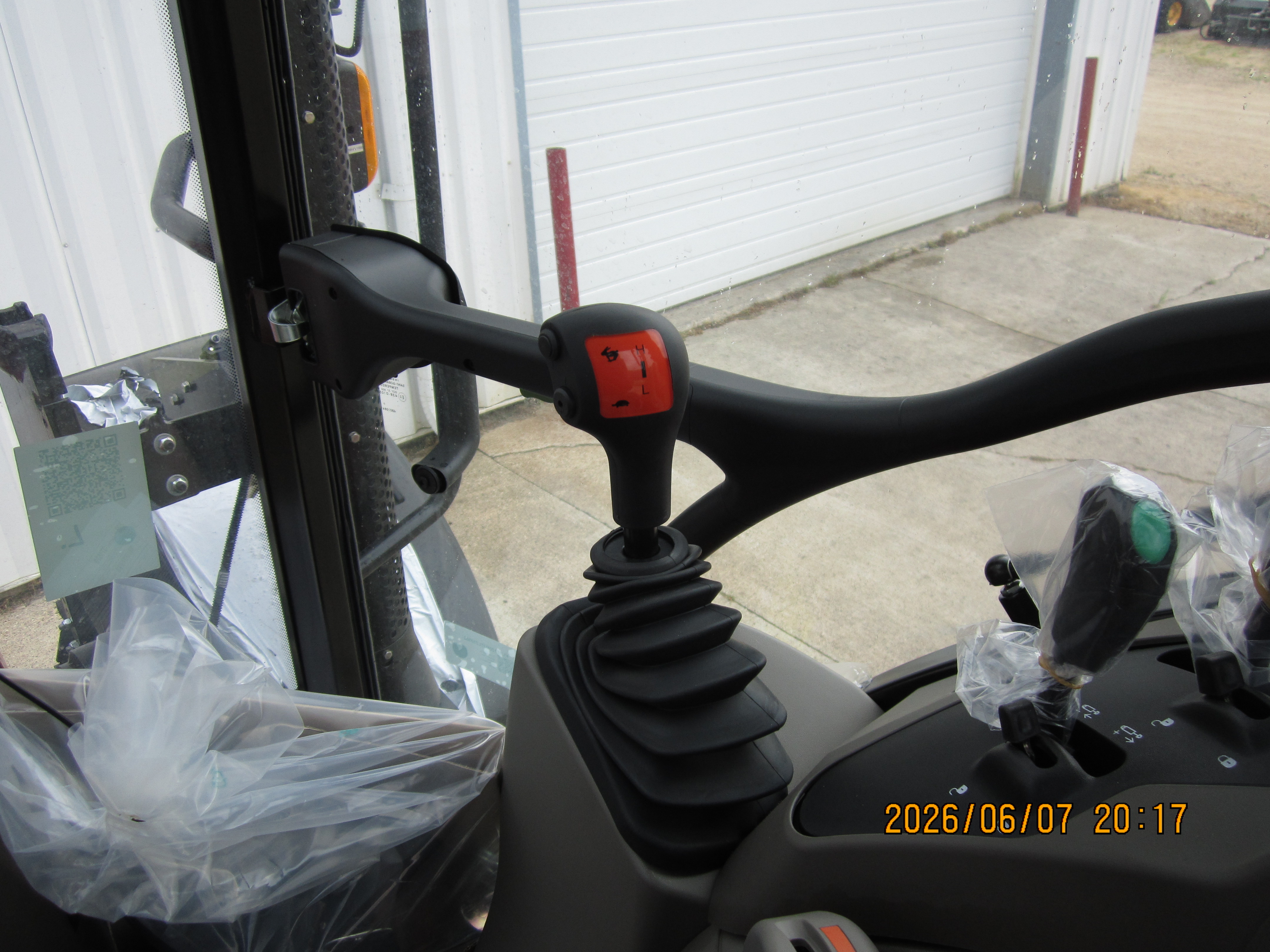

• 2 Closed Centre Mid-Mount Valves with Electro-Hydraulic Joystick<BR/> - With Gear change and de-clutch feature<BR/> - Requires Premium Air Seat (758312)
• 2 SPEED 540/1000 rpm INTERCHANGEABLE PTO SHAFT L/GROUND SPEED PTO
• Suspended front axle<BR/> Electro-Hydraulic 4WD engagement and differential lock<BR/> Gross Vehicle Weight (GVW): 17,637 lbs (8,000 kg)<BR/> Flange-to-flange distance: 70.47 in (1,790 mm)<BR/> Inter-axle ratio: 1.352 (dimensionless
• Firestone
• 14.9R24 (380/85R24) A8 Heavy-Duty Rims<BR/> Alliance, Firestone, Galaxy, Michelin, Mitas, or Trelleborg
• Heavy duty wide rear axle<BR/> Flange-to-flange distance: 70.47 in (1,790 mm)<BR/> - inter axle ratio = 1.352
• Wet differential and 4WD engagement clutches<BR/> Gross Vehicle Weight (GVW): 17,637 lbs (8,000 kg)<BR/> Flange-to-flange distance: 70.47 in (1,790 mm)
• 18.4R34 (460/85R34) with ADJUSTABLE RIMS<BR/> Alliance, Firestone, Galaxy, Michelin, Mitas, or Trelleborg
• 18.9 inch (480 mm) dynamic front fenders
• Standard rear fenders with small extensions
• Complete loader ready<BR/> Includes:<BR/> - Complete TPS mounting brackets<BR/> - Hose kit from mid mount valve to vertical brackets<BR/> - Multi-coupler base
• Required for all 120 Super M models<BR/> For 120 HP only.
• Standard less front ballast<BR/> DO NOT EXCEED TIRE OR AXLE CAPACITY
• 6 Rear Wheel Weights<BR/> 6, 110 lb. (50 kg.) rear disc weights<BR/> totaling 661 lb. (300Kg)
• USA english config

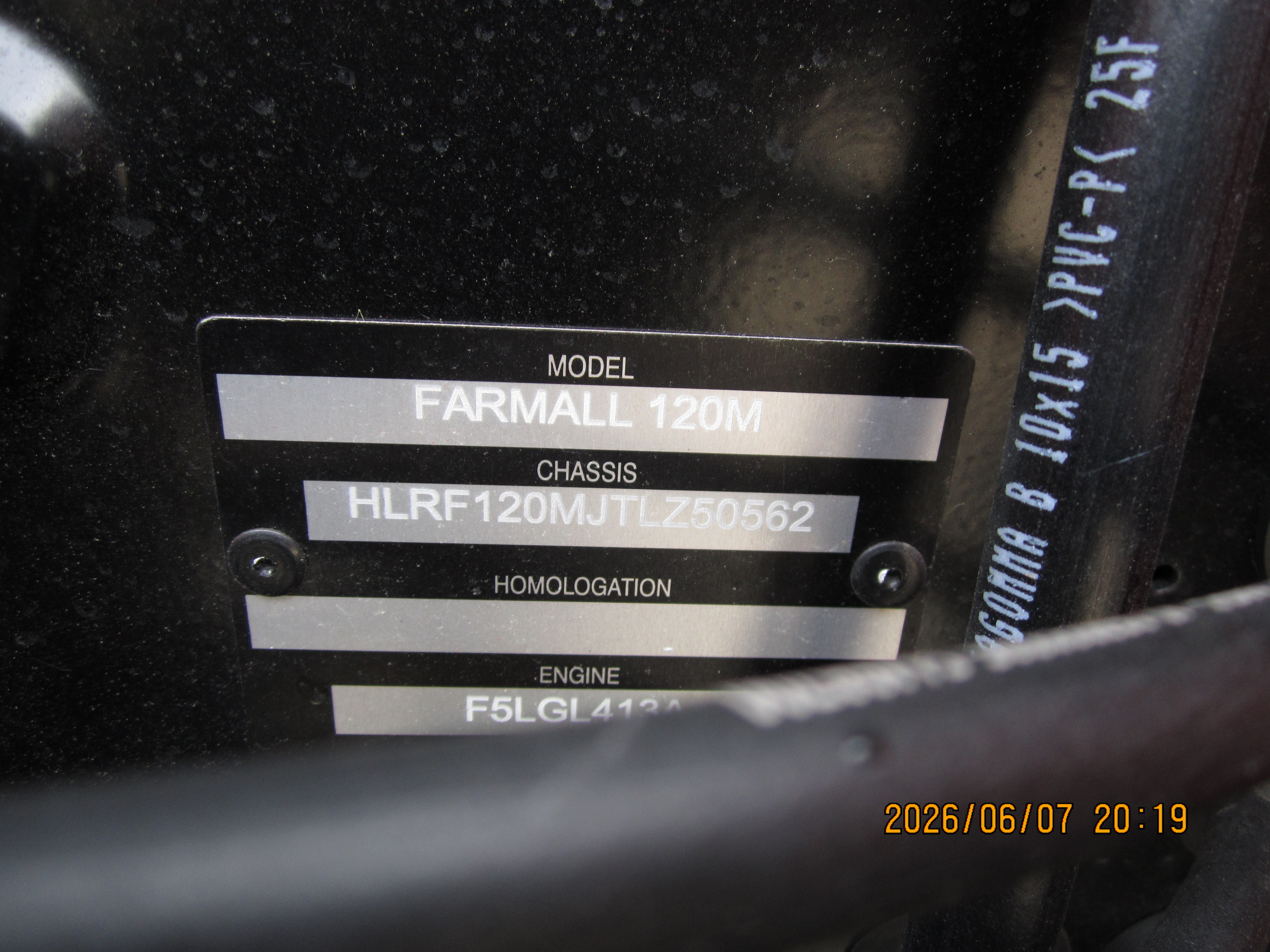

• F5C ENGINE STAGE V
• 120 Amp Alternator
• 46-gallon (174 L) diesel fuel tank<BR/> 3.65-gallon (13.8 L) DEF tank<BR/> Compatible with up to 7% biodiesel (B7) fuel blend
• Dual Element dry air cleaner with pre cleaner system
• Hand Brake (left side of seat)
• STANDARD HD BRAKE DISCS
• Less ABS
• L/WATERPROOF TRANSMISSION
• 8A+40A NAR CONNECTOR
• L/HYDRAULIC BRAKES - L/AIR BRAKES
• 140AH BATTERY

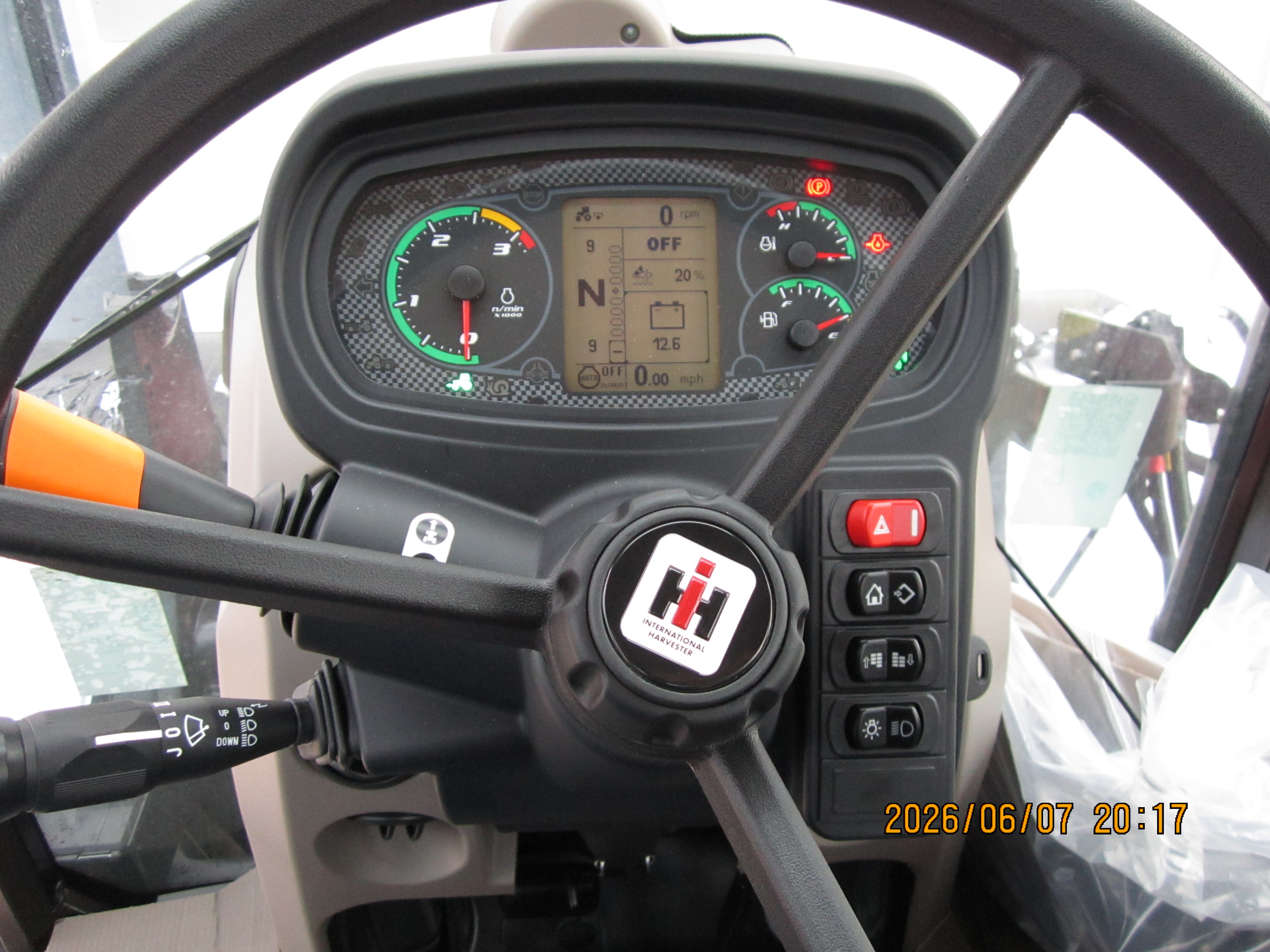

• INFO DISPLAY
• DELUXE RADIO W/ BLUETOOTH HIGH PERF SPEAKER
• GEAR PUMP 80 L/MIN
• FABRIC PASSENGER SEAT
• L/OPERATOR AREA PACK
• L/TRANSMISSION PACK
• L/FRONT AXLE PACK
• L/LOADER PACK
• L/COLD WEATHER PACK
• L/PERFORMANCE PACK
