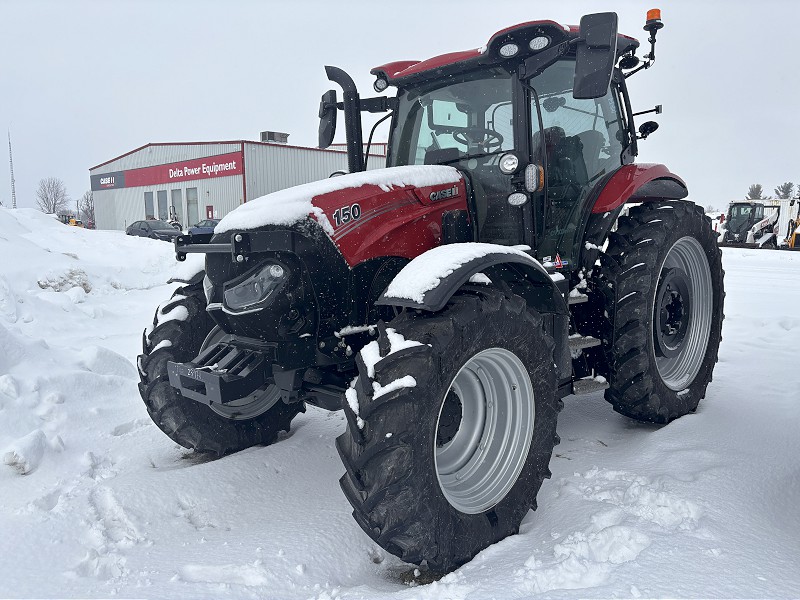

2024 Case IH Puma 150 Tractor

Usage

• Eng Hours: 935.0

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

• PUMA 150HP POWERDRIVE STG V
• SWB PS Cash Crop Pkg / Cash Crop Package / / Selecting a Package will remove Custom premium price / / Includes: 4 Electronic Remotes, 40 KPH 18x6 FPS, Class 4 / Suspended Front Axle, Std HD Brakes, Elc/htd Side Mirrors, 200 / Amp Alternator, Fuel Tank w/Guards, 120V Engine/Transmission / Heater, 540/1000 Rear PTO, 29 or 39 GPM Hydraulic Pump, / Power Beyond, Headland Management, Fender Mounted / Controls, Std Drawbar, Dual Beacons, Bluetooth Radio, LH / Door, RH Window Monitor Bar, Cab Suspen
• 20 LED WORK LIGHT / 2 Halogen hood mounted road lights / 6 LED hood mounted work lights / 4 front roof-mounted LED work lights / 6 rear roof-mounted LED work lights / 2 front post- mounted LED work lights / 2 rear post -mounted LED work lights / CIH Signature lights (LED band)
• High Mount Roadlight / Low-beam headlights mounted to the grab rail, which remain on / for road transport / These lights assist in visibility during transport when equipped / with a loader or a front 3-point hitch mounted implement
• LH and RH Rotary Beacons / Dual Foldable LED Beacons mounted on rear corners of cab.
• DISPLAY READY W/ EL / Included Deluxe Monitor Bracket Prewired for Pro 700 Plus display
• PREDISP.FOR ARMREST / MultiControl armrest complete with mounting bracket and / pre-wired to mount an optional AFS Pro 700 Plus Display / No display included
• Bluetooth Radio / AM/FM, Micro SD Card Slot, USB Port, Aux Input / Bluetooth capable to stream music from a device into the radio, / and take/receive phone calls with an integrated noise cancelling microphone
• Mechanical cab suspension / Two adjustable rear shocks which can be adjusted based on / operator weight and cab payload to increase comfort / Reduces shock loads transmitted to the tractor by 25% / When coupled with a suspended axle, the ultimate in ride comfort / is achieved / Includes tinted rear window / Not available with 520/85/R46 tires
• ACTIVE LEATHER COMFO / Active Leather Seat, Electric Armrest, Gray Leather Instructor Seat, Leather Steering Wheel, Auto Climate (A/C), Rear Sunshade, Case / IH Carpet
• High Vis Roof with Htd Glass / High Visibility Roof: / Allows increased safety and productivity during / loader work / Allows the operator to more easily view the loader when it / is fully raised / Includes a sliding shade over to block out the sun when not in use / Heated Front and Rear Glass: / Similar to heated glass found in the automotive industry / Operated via switch on right hand C-pillar when tractor’s / engine is running / Aids in visibility in damp and freezing conditions by eva
• 2 Tele/Heat/Rem Adj Mirror / Includes wide angle mirrors / Electrically adjusted and heated mirrors / 7.9" x 11.8" (200 x 300mm)
• Standard Steering
• PCM4G CANADA / PCM 4G Canada 4G P&CM controller for Canadian or / LIMITED USA Market AT&T SIM This device is the / only option for Canadian markets, and should also / be ordered for USA markets that have poor or no V / erizon cellular coverage
• CL 3 ISO BUS W/Stop / For full functionality, requires the following: / - Electronic Parking Brake (758034) / - Electronic Remotes Valves / - Required when using baler automation features / - AFS Pro 700 Plus Display- This can be purchased new with / the Tractor (758156 or 758150) or you can use your own / AFS Pro 700 Plus
• Basic HMC / End of Row functionality programmed through the tractor’s / A-Post display / If equipped, sequences may be stored in the AFS Pro 700 / Plus Display
• LESS GUIDANCE COMPLE / Order with 759185 for Autoguidance Ready
• 1 Year Telematics Subs / P&CM Advanced 1 year Telematics (Includes File Transfer)
• ST5 ENGINE VISTR FA / Visctronic fans can vary their speed independently of the engine / speed, based on the demand for cooling
• 200-Amp Alternator. / Required for heated front & rear glass option
• 120V engine block/transmission / Provides for faster warm up of the transmision/hydraulic fluid / oil when operating in low ambient temperatures / Utilizes cables to plug in at two sockets at lefthand step area / Preheats engine and transmission
• Less Engine Exhaust Brake
• MAIN TANK W/GUARD / 71 Gallon (270 L) Fuel Tank with Guards / 16 Gallon (60 L) Auxillary Fuel Tank
• 18 X 6 40Kph Full-Powershift / 18 x 6 40kph (25 mph) full-powershift
• LESS TRAILER BRAKES
• 2X90mm Cyl -Cat 2/3-Tele Links / Category 2/3 / 90mm lift cylinders / Capacity = 8,050 lbs. (3,651 kg)
• HIGH FLOW PUMP / 150L/Min 39 GPM
• L/JOYSTICK 758301 / L/JOYSTICK
• Four Electronic Rear Remotes / Requires 758033 Fender Mounted EDC/PTO/ERRV#3 / Bosch Remotes
• Predisposition Comp Lrd Rdy / Predisposition for Complete Loader Ready (CLR) / Required for CLR option codes 758353 & 758354
• Low Pressure Return - QC - ISO / Requires 3 or 4 electronic rear remotes / Power beyond is used in situations where the implement controls / how much hydraulic flow it demands, such as applications running / orbital motors / The load sense line adjusts the swash plate, varying the flow of oil / out of the Power side of the circuit / Includes 3 female, flat-face quick couplers (ISO 16028): Return, / Power, and / Load Sense / Implement requires the following matching, male couplers (CNH / Industri
• Fender Mounted EDC/PTO/ERRV#3 / Requires Electronic Ream Remotes
• Class 4 Suspended MFD Axle / Includes multi-plate, fully locking front differential for extra traction inslippery conditions / Double accumulator suspension for improved performance, / dampening movements both when the cylinder extends and / retracts / Max permissible operating weight on front axle: 8,455 lbs. (3835 kg)

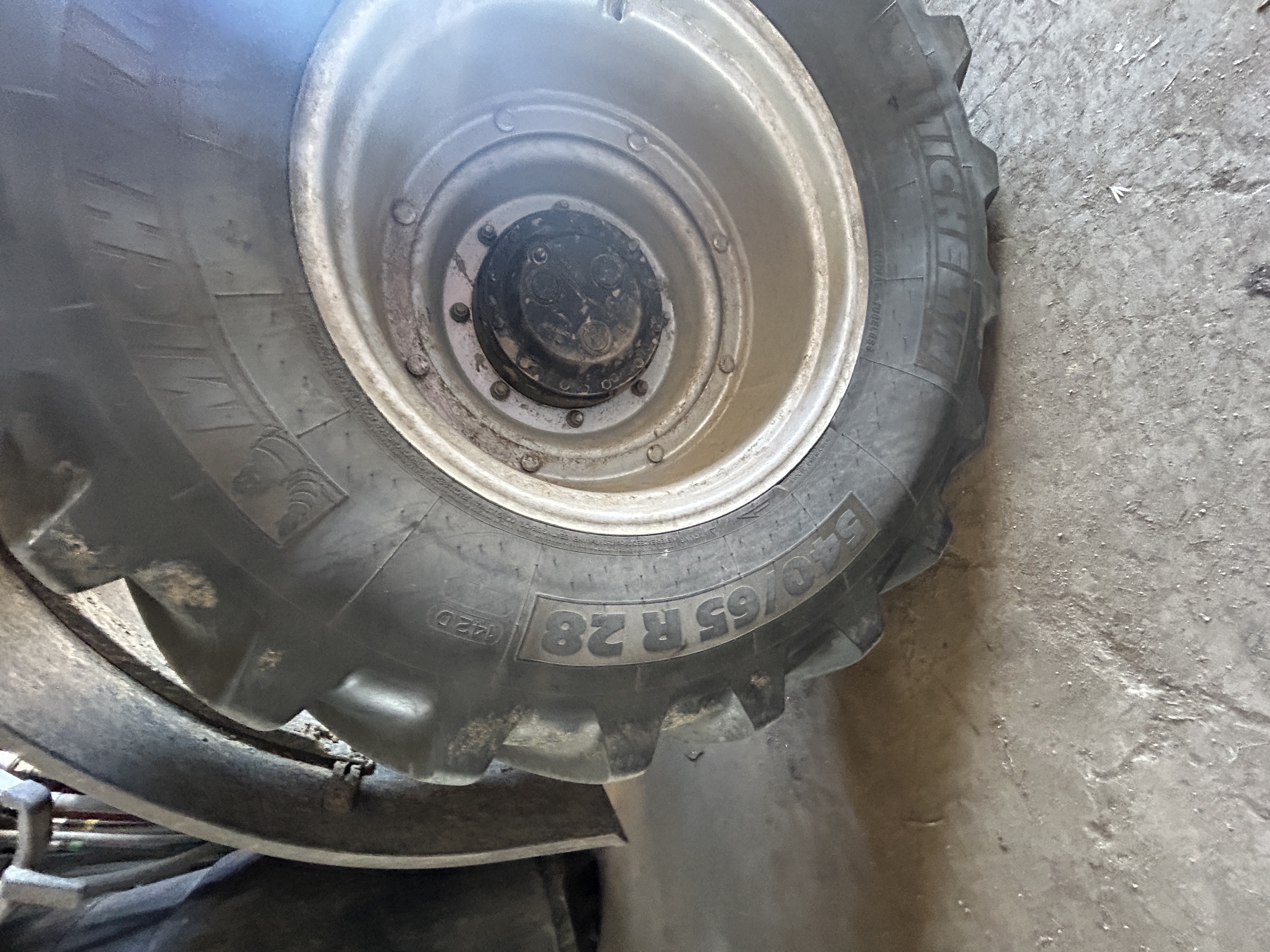

• 540/65R28 R1W - MI, FI, TR, CO / Brands: Michelin, Firestone, Trelleborg, Mitas
• Bar Axle 98 in. / 2489 mm

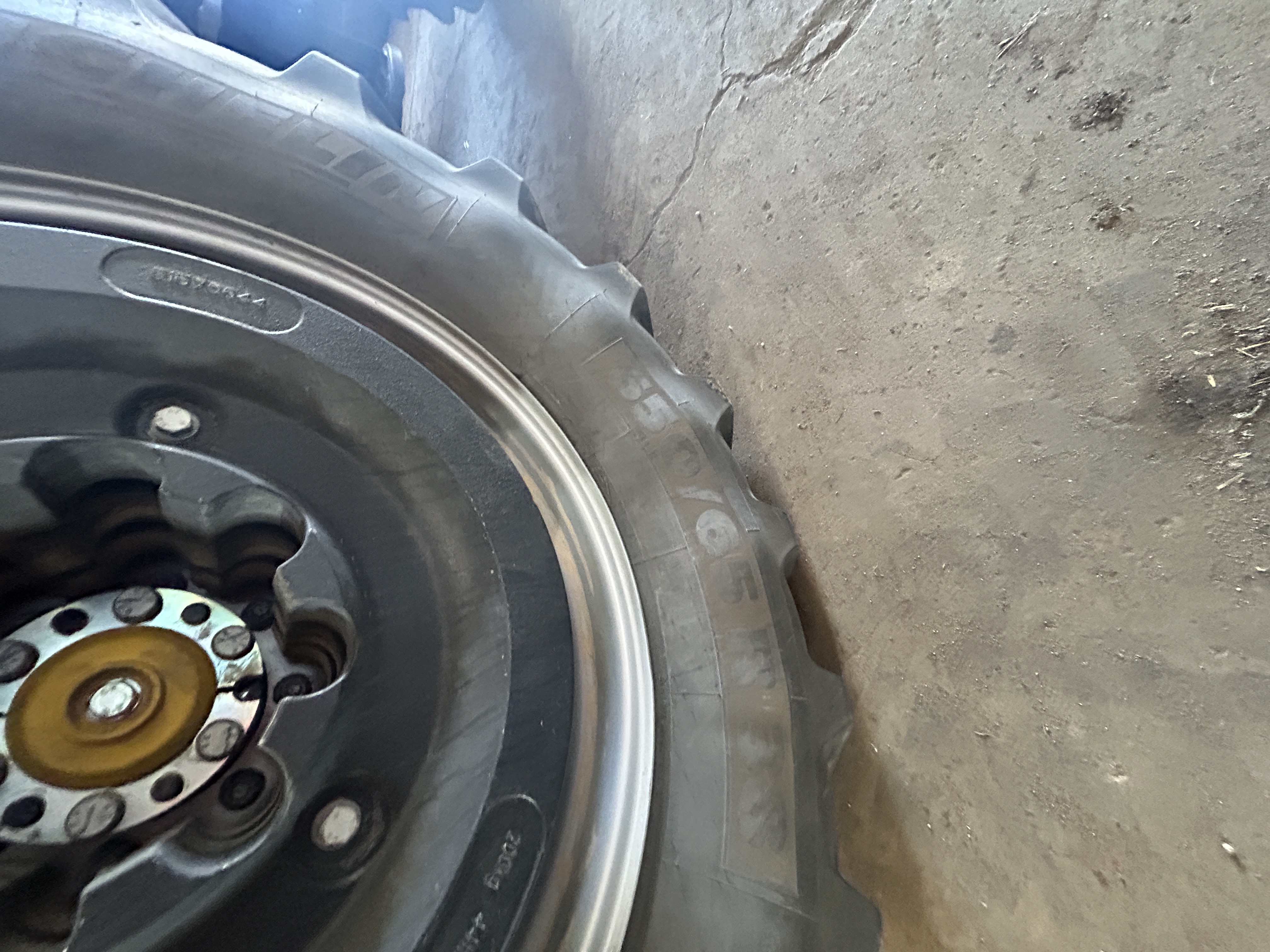

• 650/65R38 A8 R1W FI/MI/TR/CO / Brands: Trelleborg, Michelin, Firestone, Mitas
• 540MM Dyn Fr Fenders / Recommended for tire sizes less than 540 mm/21.3" wide / Dynamic front fenders allow the fenders to turn with the / tires until the fender stop contacts the tractor, to keep mud / and debris off of the tractor and operator area without / compromising on turning raises
• Wide, Full Cover Fenders / WIDE FENDERS
• NA LDR RDY W/3 EHMMV / Complete Loader Ready – 3 Function Electronic / TPS Mount Bracket Set (with Grill Guard), / 3 Function MMV and Advanced Joystick, / Single-Lever Hyd. Coupler System SL6, / (Includes valve, joystick, harness, & hose kit)
• EPL Electronic parkbrake75803 / Electronic Park Lock is required for ISOBUS CL3 automation
• Less ABS
• Michelin /
• Tow Hook-Only
• No Front Weight Carrier / No front weights or front weight carrier
• 6X200KG RR WHEEL WGT / Total weight 2640 lbs.
• Less Add'l Operator Manual / LESS ADDITIONAL OPERATOR MANUAL
• NORTH AMERICA
• L106 loader YMWLR5047
• Does not have hammer strap shown in pictures.
