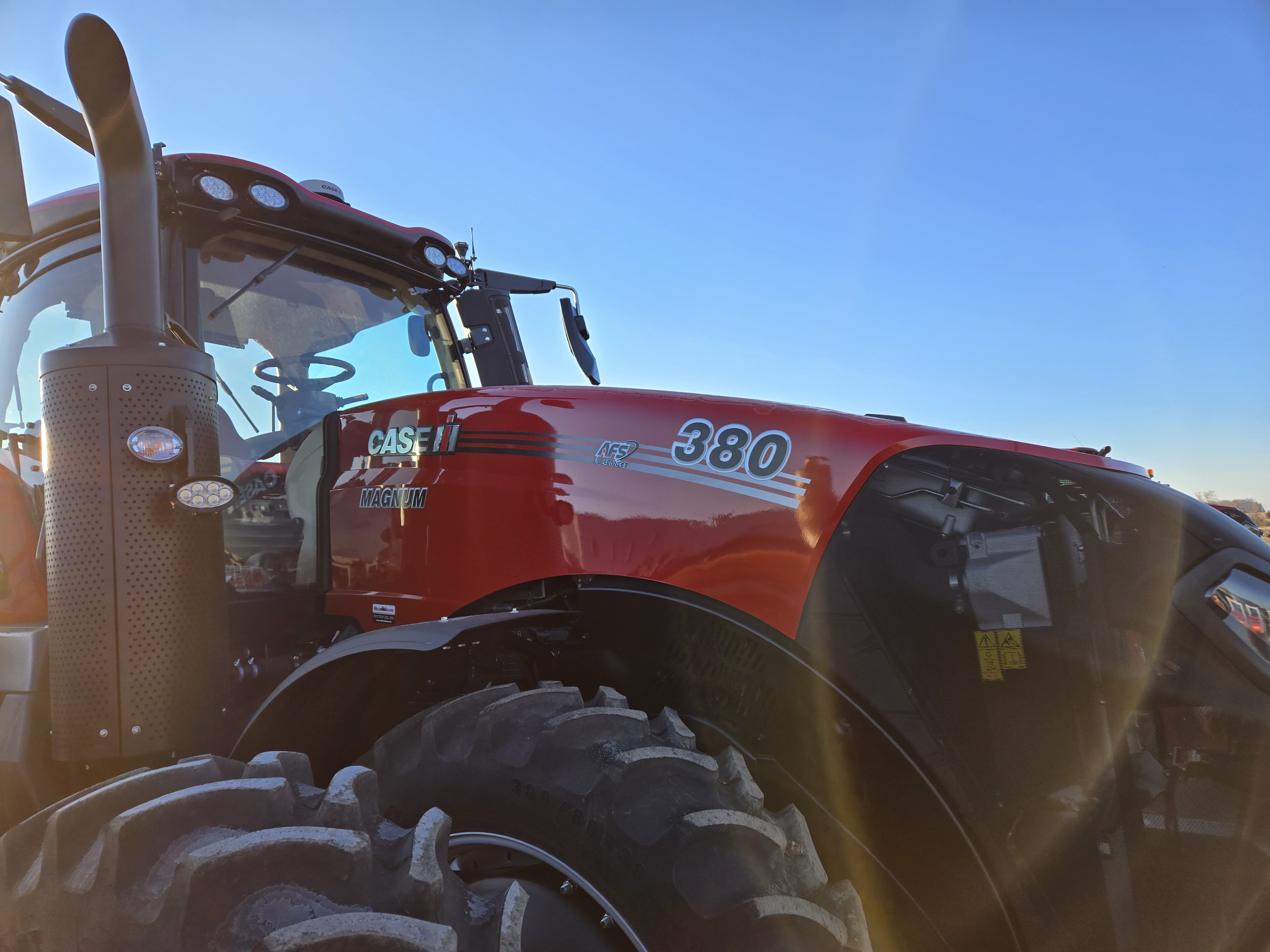

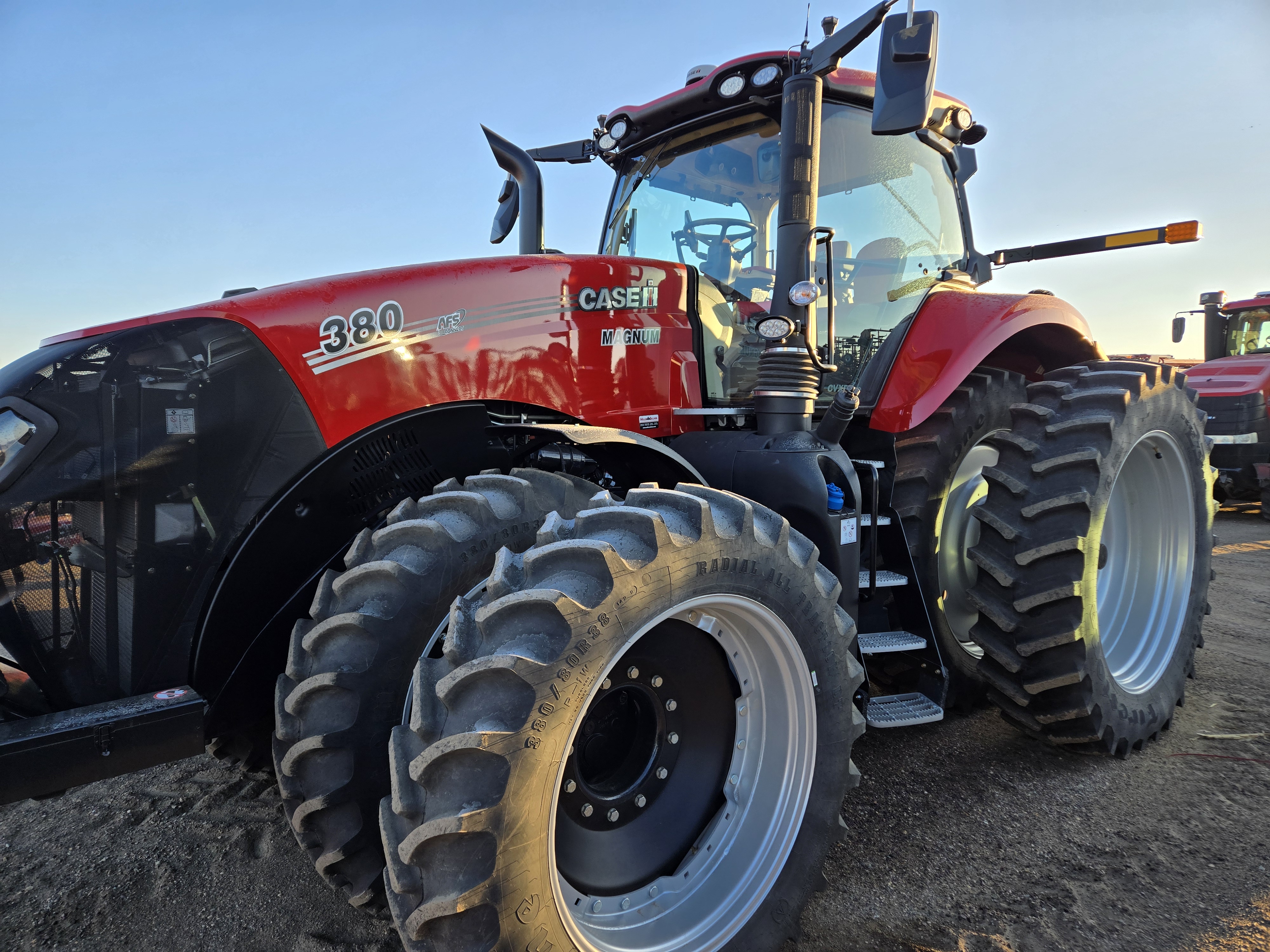

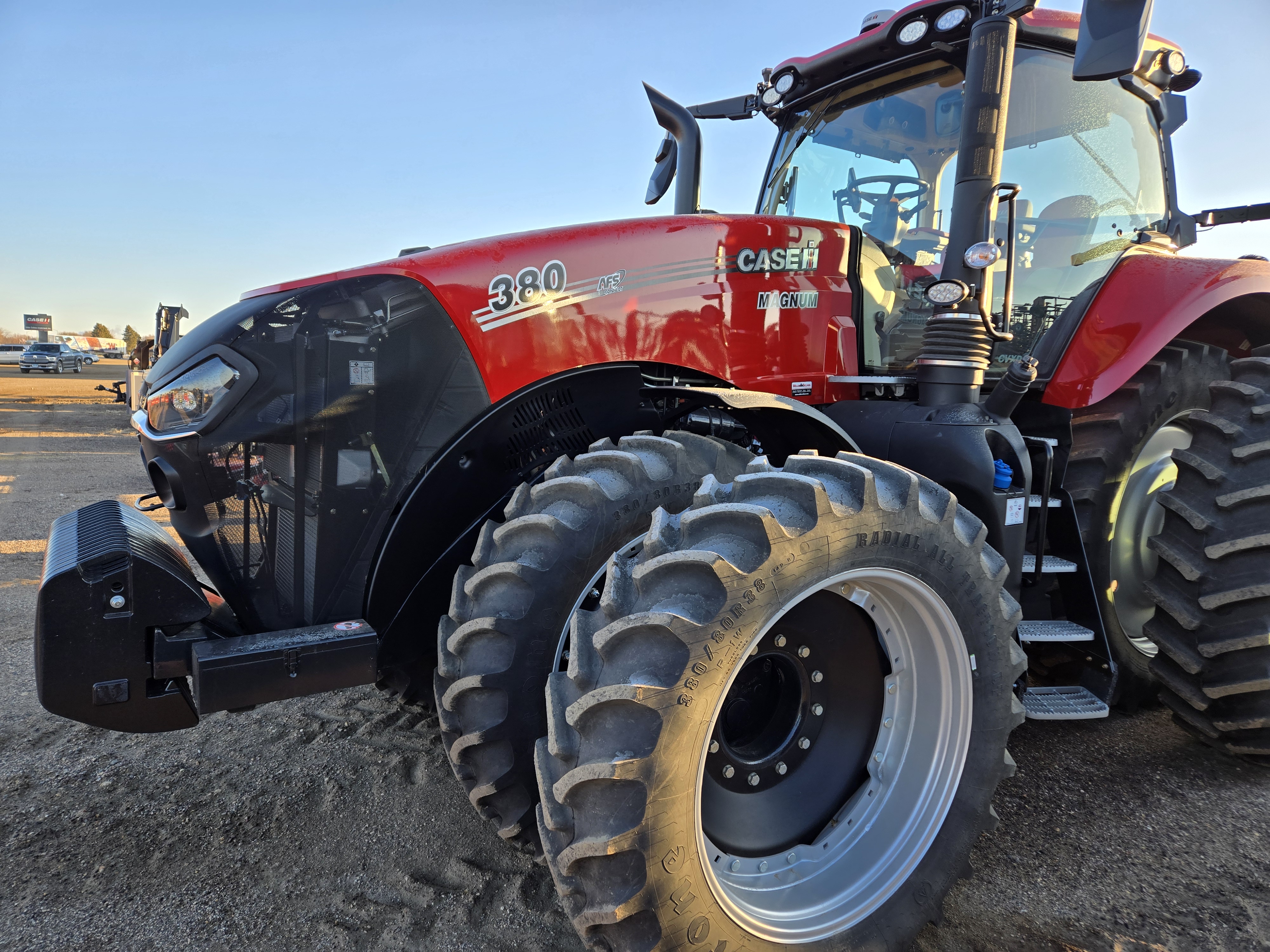

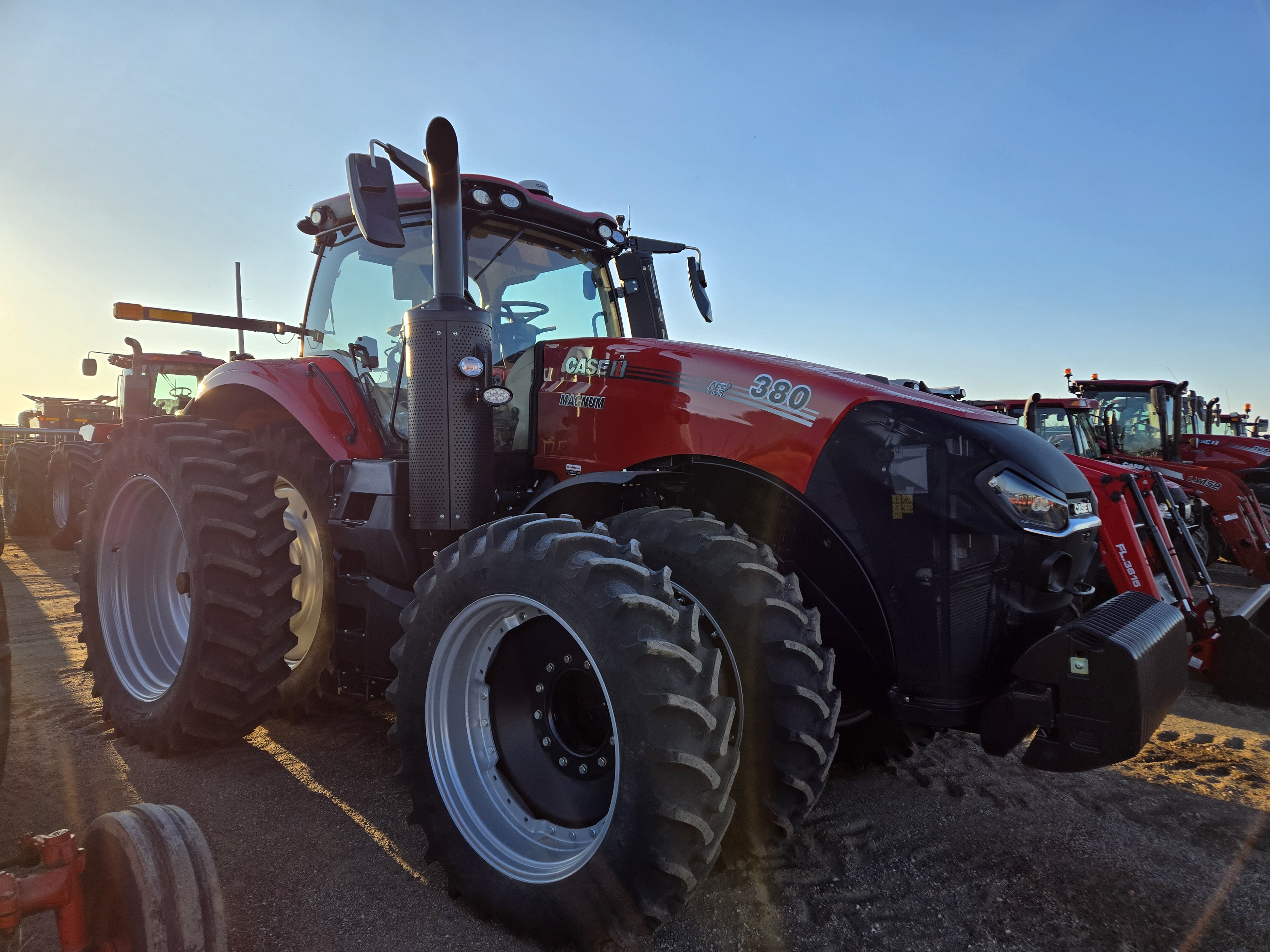

2024 Case IH MAGNUM 380 CVT AFS C. Tractor

Sizes

• PTO Horsepower: 315.0

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

• WHL, CVT, LuxCab, Pack / Selecting a Package will remove Custom premium price / / Includes: / / CVT Transmission Engine Compression Brake, Engine/Trans / heater, Wide Rear Fenders, True Ground Speed Radar, / AFS Pro 1200 Double Mount, AFS CONCT 5ADV FT, / Powerbeyond, Dual Beacon, Cat 4 Drawbar, 360 Lights Work / Lamp Package, 6 Paddles, ISO Bus Class 2, Brake Assist Steering / / Selectable Options: *Some selections are Limited for choice* / Luxury Cab/LUX Semi Active Cab, Front Axle, Rear A
• AFS VECTORPRO High, With NTRIP / AFS VectorPro High, w/NTRIP - GPS Receiver / includes High accuracy upgrade capable of running radio or / cellular based RTK correction signals / Radio RTK and NTRIP is capable of receiver accuracy / level of sub-inch accuracy / 1 year NTRIP subscription included to run choice of cellular correction
• AFS Pro 1200, Mount / AFS Pro 1200 - 12" Display on Armrest / with 2nd display harnessing to headliner connection / Primary Display - Machine Ctrl, AFS Connect Ready
• Telematics 5 YR FT Ready / AFS connect advanced telematics / 5 year advanced/professional + file transfer
• ISO BUS Class II is ISO BUS III capable, requires unlock
• PCM 4G USA / 4G P&CM controller for USA Market / Verizon SIM / This device provides optimal coverage in a large majority of / the USA, however for areas with poor or no Verizon cellular / coverage order 469468. NOT FOR CANADIAN MARKETS

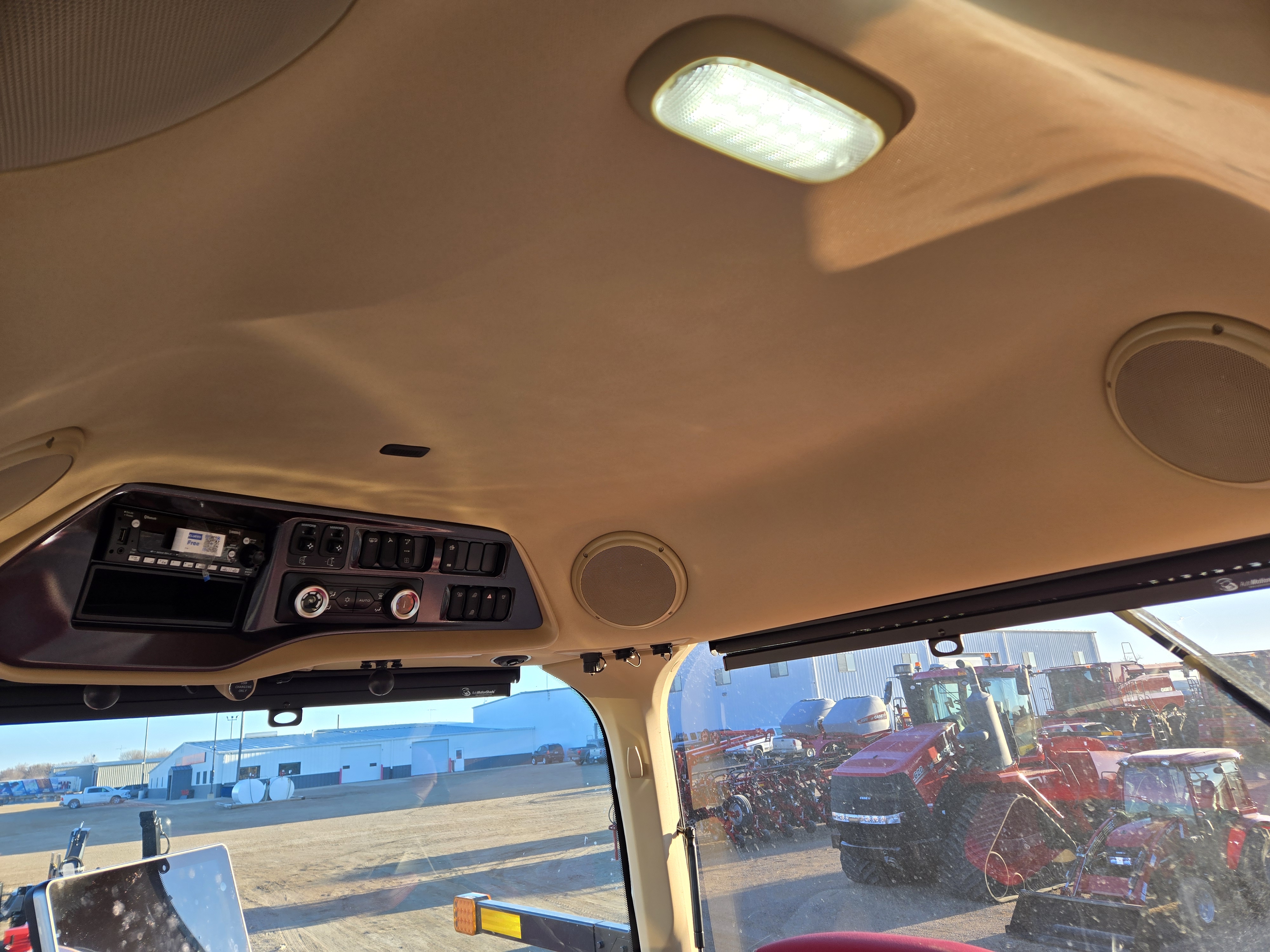

• LUX Semi Active Cab Suspension / Active Cab Suspension | Luxury Cab Equipment | / Tinted Glass | Multi-Power strip | Carpet | Leather Semi-Active / Heated and Ventilated Operator Seat | Leather Instructor Seat | / Radio Delphi AM/FM/XM Weatherband with CD and Bluetooth | / Business Band Antenna | 2-way Armrest Adjust | Front, RH, and / Rear Sunshades | Electronic Telescoping/adjustment External / Mirrors with Heat | Camera Ready with front and rear Cameras | / Additional power ports | Accent lig
• Brake Assist Steer / Brake assisted steering
• 360 Work Lamp Package / Halogen hood lights with LED cab lights / 8 Cab Roof (1400 lumens) LED lights (2 per corner) and / 2 Beltline (2500 lumens) LED Lights (1 per side) / 2 Rear Fender (5000 lumens) LED lights (1 per rear fender) / Two "360" side (2500 lumen) lights (1 per side) / / 360 Work lamp Hood Lights / 2 LED hood mounted Road Lights / 6 LED hood mounted Work lights (2 forward spots and / 4 side flood Lights) / 2 LED signature Lights
• Std L/HI Mount Road Lights / STD L/HIGH MOUNT ROAD LIGHTS
• Dual Beacon Light / two beacon lights, mounted on the LH and RH sides / with backup alarm
• Engine Block, Trans Heater / 120V
• 40 KPH Economy CVT / 4 Range CVT - Economy, 25 mph/40 kph capable, / with reduced engine speed
• True Ground Speed Sensor / Optional with full powershift transmissions only. Standard equipment / with CVT transmission and cannot be ordered with CVT models.
• No hydraulic trailer brakes
• Cat IV High Capacity Drawbar / Adj. Drawbar with 2.0"/50mm auto-pin hammerstrap / with hitch pin 11,000lb / 4990 kg max tongue weight
• Less Front Hitch and PTO / No Front Hitch, Front Remotes. or PTO. Hitch, PTO, or / Remotes can be added later but field installation is / labor intensive.

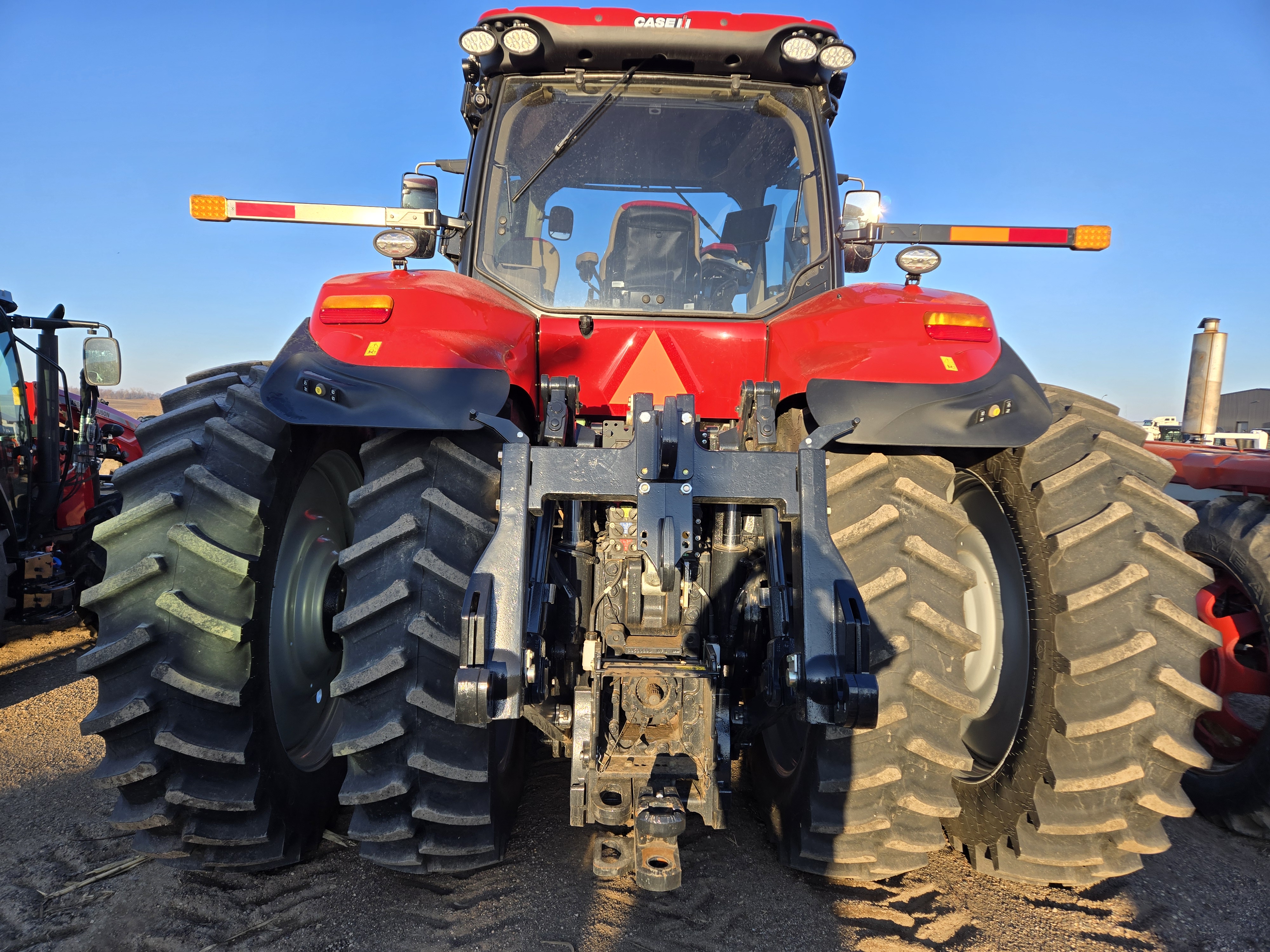

• HD Cat 4N/3 Manual Adjust / Includes quick coupler / Quick coupler cannot achieve Cat 3N setting / Lift Capacity 19,900 lb/ 9,026 kg OECD

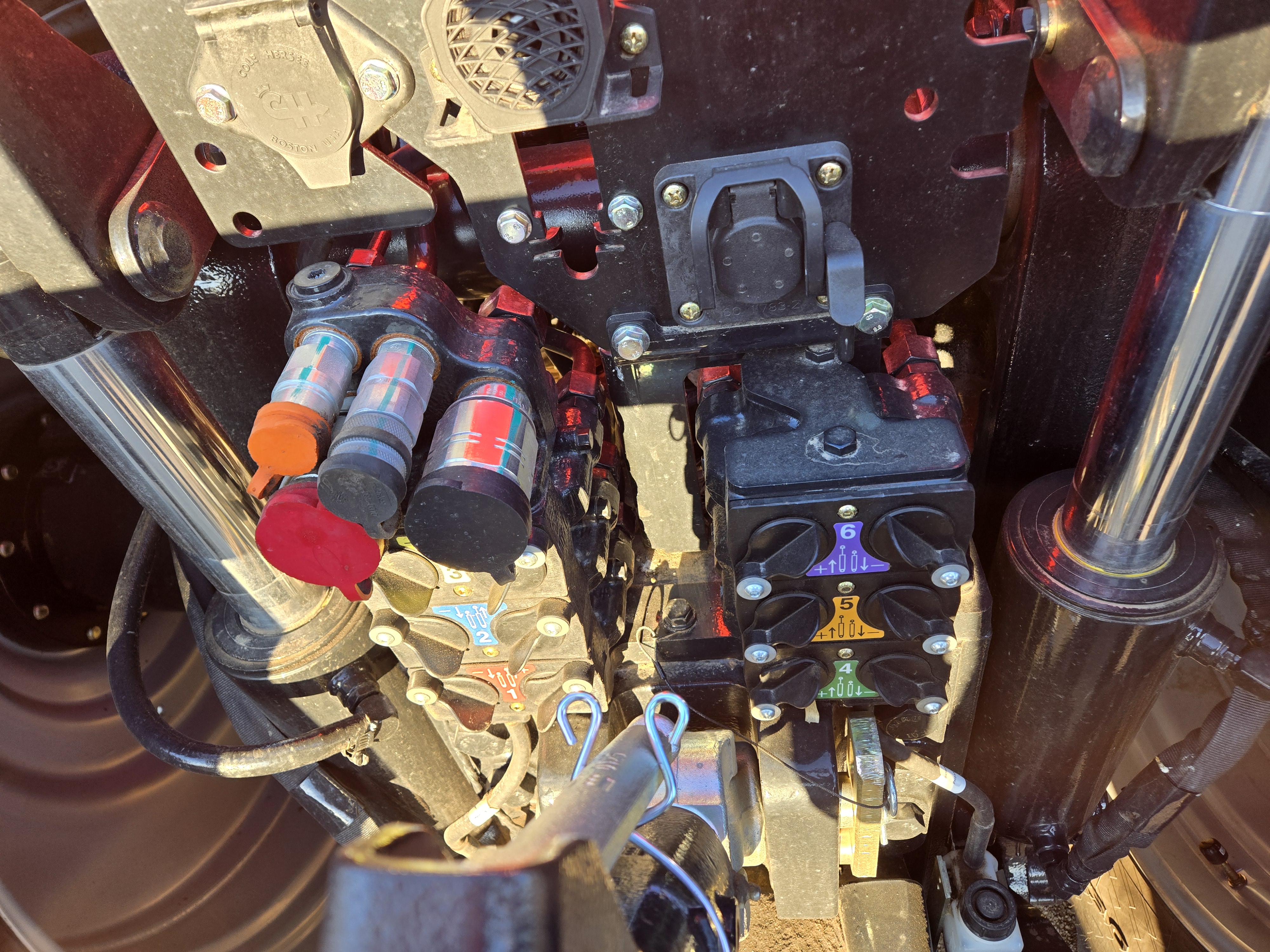

• MEGA Flow 2 Hyd System / Twin pump configuration supplies 56 gpm to the left / stack of couplers and 30 gpm to the right stack of / couplers – configure implement hook-ups to utilize all / available flow

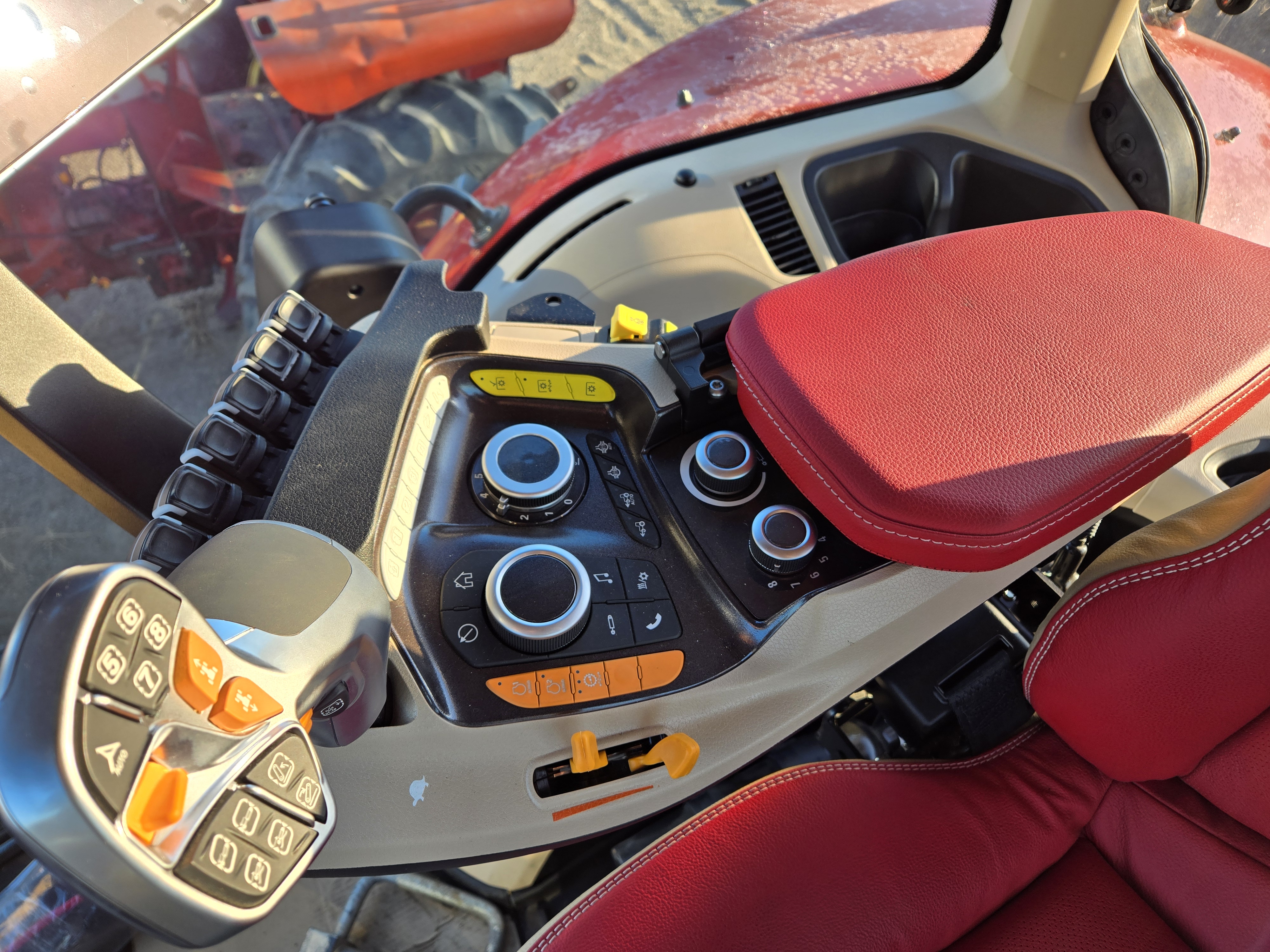

• 6 EHR Paddles / 6 EHR levers on the armrest
• 6 Electric Remotes _ / Electronic control actuation / In-cab electronic flow controls with selectable functions / Includes 6 paddles when 429247 Electronic joystick is not selected / OR 3 paddles when 429247 Electronic joystick is ordered
• Power Beyond/Motor Return Valv / 3/4 in. motor return valve and 3/8 in. case drain
• 540 1000 RPM PTO 1-3/8" / 1000 RPM, 1-3/4 in. diameter / 1000 RPM, 1-3/8 in. diameter / 540 RPM, 1-3/8 in. diameter
• Class 5 Suspended Axle / Front axle with electronic differential lock, 12 bolt hub. / Capable of 120 in./3 m tread spacing for controlled traffic / farming. May have tire or weight limitations. / See Dealer Portal.
• No Singles Ordered / Assumes duals are ordered / Cannot be ordered with No Front Duals (XT4942X) / / Match Tires to Intended Application - refer to applicable tire manufacturer's handbook for load carrying capacities and / additional application information. Tire Brand Preference or / No Tire Brand Preference option MUST BE SELECTED FROM / OTHER EQUIPMENT SECTION.

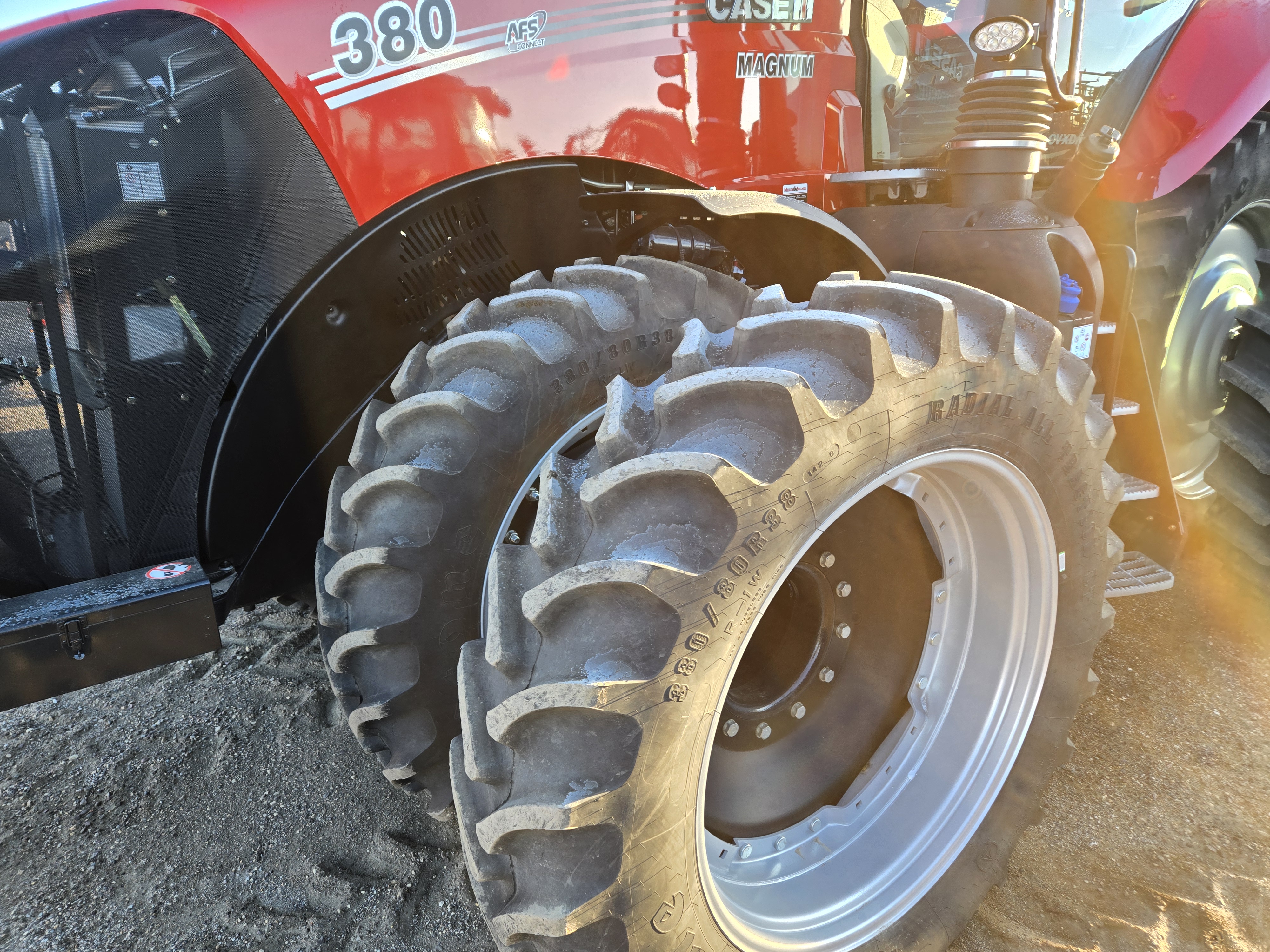

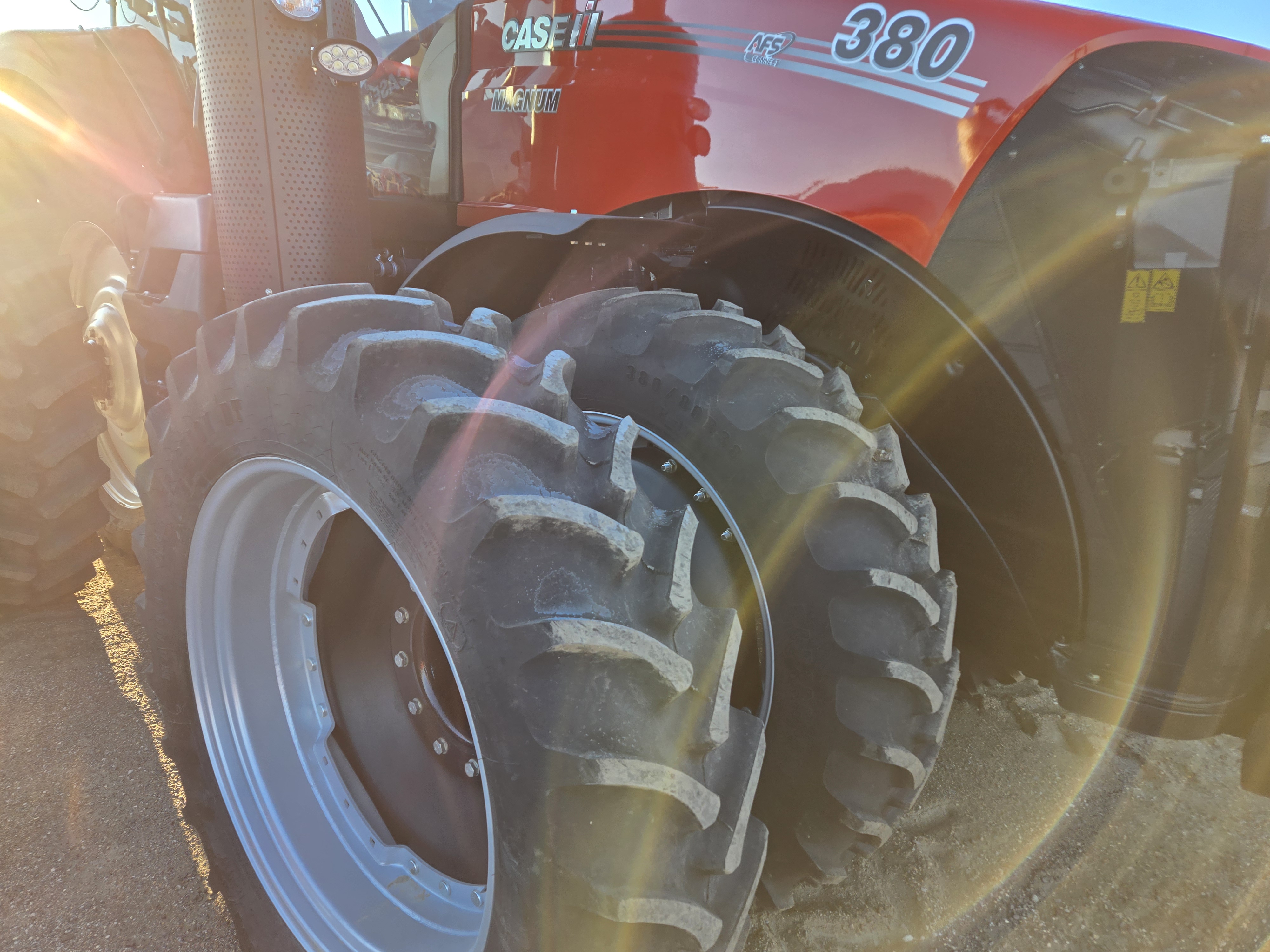

• D 380/80R38 R1W / Goodyear, Firestone, Michelin, Mitas, Titan, Trelleborg
• Rear Axle 5 in. dia. X120 in. / Axle, 120-5 INCH (127MM)
• No Singles / Assumes duals are ordered / Cannot be ordered with No Rear Duals (XT4952X) / / Match Tires to Intended Application - refer to applicable tire manufacturer's handbook for load carrying capacities and / additional application information. Tire Brand Preference or / No Tire Brand Preference option MUST BE SELECTED FROM / OTHER EQUIPMENT SECTION.

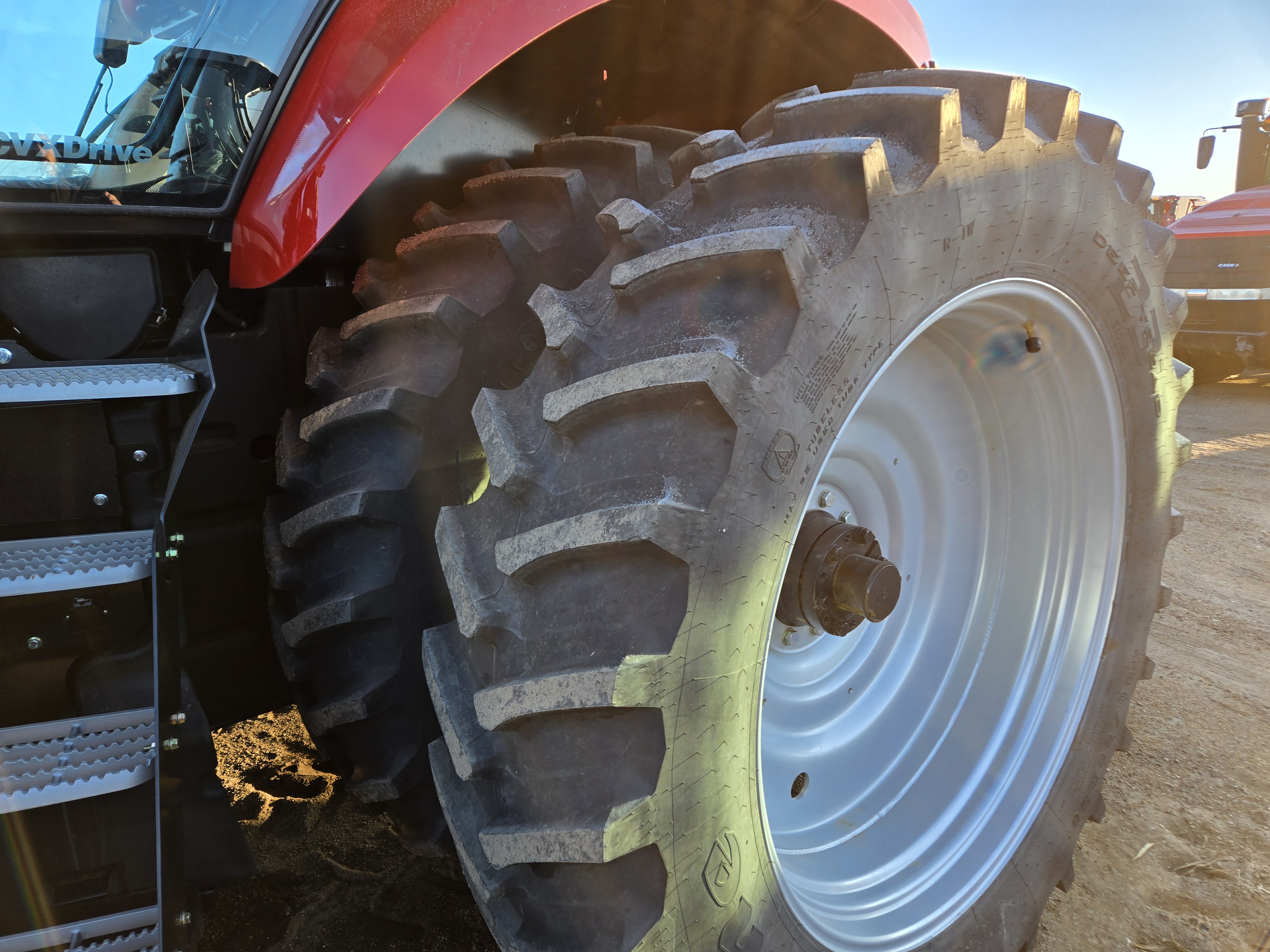

• D 480/80R50 R1W / Goodyear, Firestone, Michelin, Mitas, Titan, Trelleborg
• MFD Front Narrow Fenders / Required with 480 and narrower tires
• Wide 100.4 in./2550 mm / Includes Auto PTO function and fender-mounted hitch / and PTO controls with hitch option

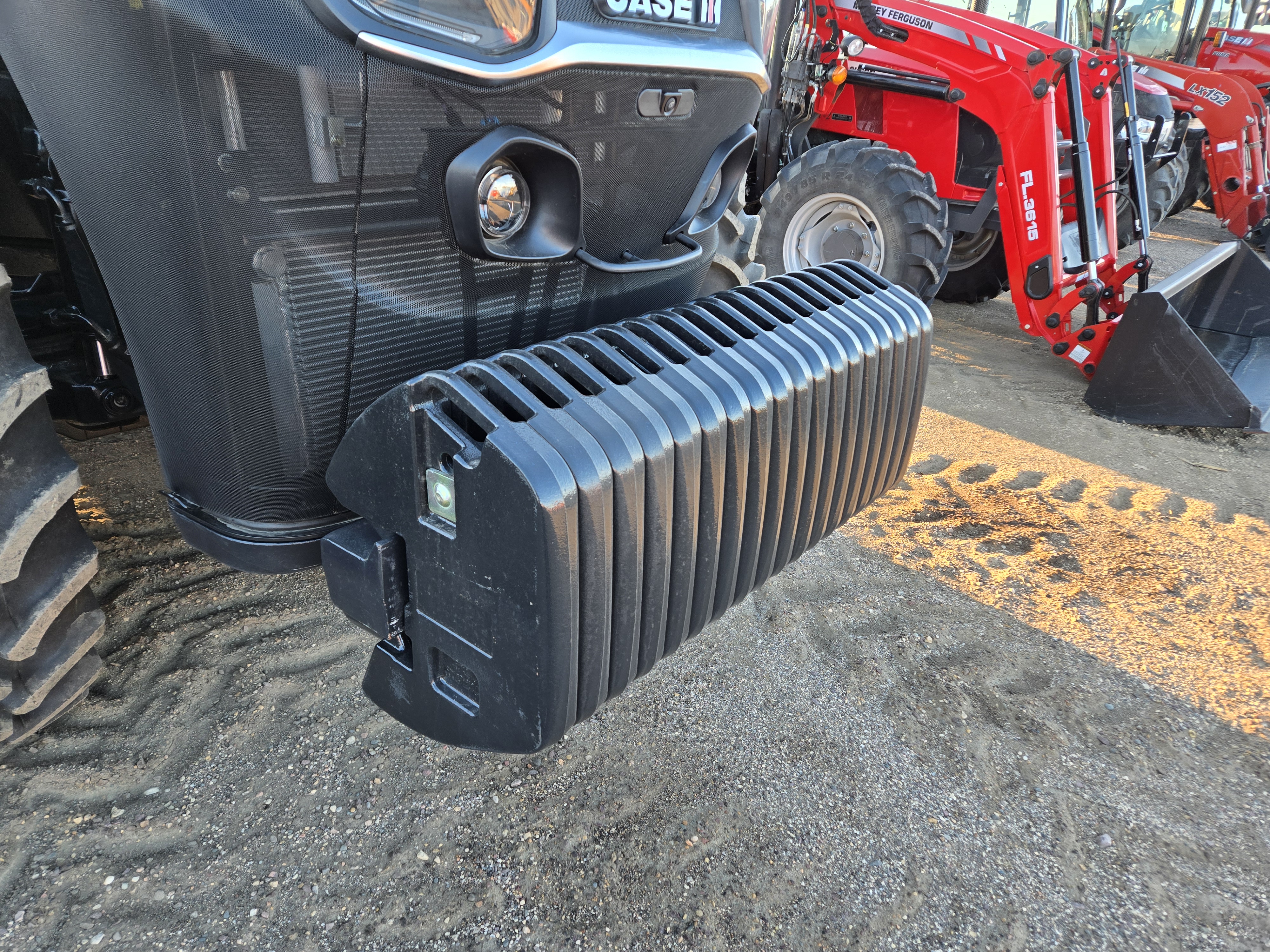

• FWF and 18x120 Front Weights / Large front weight frame and 18-120 lb/54 kg front weights. / Only available with Class 5 front Axles
• Rear Wheel Weights - 2000 lbs / with duals only / inner 2 x 1000 lb. Use weights stock number 10219L.
• Less Rear Wheel Spacers
• Tire Pressure Monitor_ / Tire pressure Readout on Pro 1200 display, 8 sensors
• Firestone /
• 16 IN Front Wheel Spacer / 16 inch front wheel cast spacers
• No transit coating
• North American English
• Rear weights 2000lbs. stock number 10219L $2031.26 net and $2638 list.
• Engine Number 24H00498595
• Transmission Number AJB0650689
