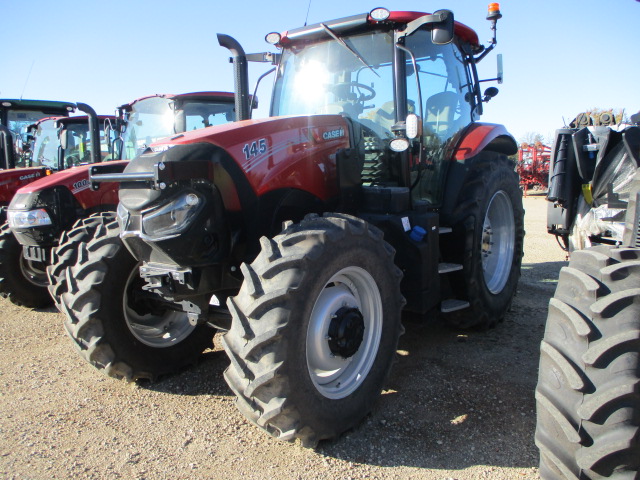

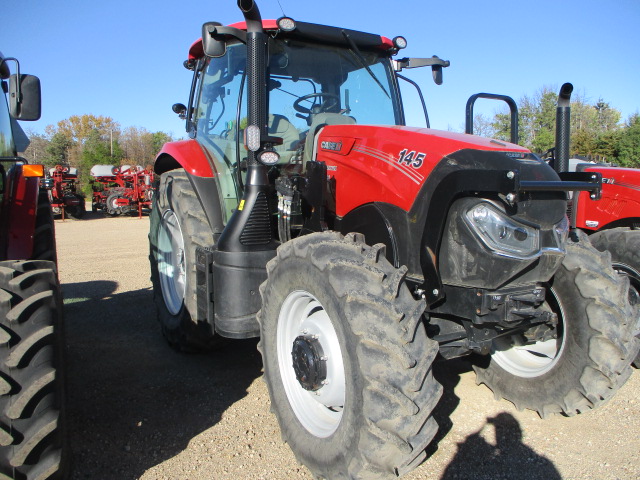

2023 Case IH MAXXUM 145 ACTIVEDRIVE4 ST5 Tractor

Usage

• Eng Hours: 852.0

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

• *MAXXUM 145 ACTIVEDRIVE4 ST5
• *AD4 Economy Package / Includes: ENG STG V W/Boost, STD ENG Cooling Fan, 150 AMP / Alternator, Std Fuel Tank+Guard, Engine Speed Management, 40KPH_16X16_L/Autoshift OR 40KPH_16X16_W/Autoshift, / HD Flange Multi-Diff Rear Axle, Std. Heavy Duty Brake Discs, / Class 3 L/Brakes, Less Advanced Processor, Standard Steering, / Less Trailer Brakes, L/Pneumatic Trailer Brake, STD DTY / MECH ISOLAT, Less Radar, Enhanced Inst w/ ISO Socket, / Bluethooth Radio, 80L/MIN Fixed Displacement PMP, Low- / Pressur *AD4 Economy Package / Includes: ENG STG V W/Boost, STD ENG Cooling Fan, 150 AMP / Alternator, Std Fuel Tank+Guard, Engine Speed Management, 40KPH_16X16_L/Autoshift OR 40KPH_16X16_W/Autoshift, / HD Flange Multi-Diff Rear Axle, Std. Heavy Duty Brake Discs, / Class 3 L/Brakes, Less Advanced Processor, Standard Steering, / Less Trailer Brakes, L/Pneumatic Trailer Brake, STD DTY / MECH ISOLAT, Less Radar, Enhanced Inst w/ ISO Socket, / Bluethooth Radio, 80L/MIN Fixed Displacement PMP, Low- / Pressure
• *Cab w/Fixed Front Screen / Standard Cab - Does not include Cab Suspension
• *DELUXE RADIO 743712 / Bluetooth Radio including: AM, FM, Micro SD, USB, AUX, and / Bluetooth with noise cancelling microphone. Includes speakers / and wiring.
• *Instructional Seat with Belt / Includes seatbelt / Cloth will match operator seat
• *Less Rear Cab Storage Box / L/REAR STORAGE BOX
• *AIR CONDITIONING 392701 / Standard A/C
• *Rear Window Wiper / Includes a rear windshield wiper: Allows for easier rear window / cleaning, especially in dusty conditions with sharp sun angles into / the cab
• *No Rear Window Sunshade
• *Std Steering Wheel / Standard, non-leather steering wheel
• *Standard Steering / Factory Installed Autoguidance is not available on / Active Drive 4 MaxxumTractors
• *Self-Cancel + Audible Turn / Cancels automatically with the turn of the steering wheel / Sound and dash light indicates turn signal active
• *2 Std Mirrors / 2 Standard Mirrors: 6.3" x 10.4" (160 x 263 mm)
• *Enhanced Inst w/ ISO Socket / Required with radar / Includes 7-pin DIN/ISO 11786 socket in RH console to power / implement monitors / Includes ground speed, rear PTO speed, and rear 3-point position & / work status / Includes functionality for Area accumulator, odometer, PTO speed / display, and wheel slip on dashboard instrument cluster.
• *BASIC HOOD LIGHTS / New Grill Styling with updated headlights / 2 halogen road lights 2 halogen work lights
• *8 LED High Power Low-Roof / High power 1950 Lumens LED work lamps / 2 front roof-mounted LED work lights / 2 rear roof-mounted LED work lights / 2 grab rail LED work lights (redesigned structures) / 2 rear post-mounted LED work lights / 2 halogen road hood lights / 2 halogen work hood lights
• *Less High Mounted Headlamp / L/HIGH MOUNTED HEADLAMPS
• *Rotary Beacon
• *LESS TELEMATICS
• *DELUXE MONITOR BRACKET WITH ELECTRICAL SOCKETS + / PHONE HOLDER (+ ONE RAM MOUNT SPARE)
• *LESS P&CM MODULE & H / LESS P&CM MODULE & HW
• *Less Advanced Processor
• *ENG STG V W/BOOST / ENGINE STAGE 5 W/BOOST - ELECT. FUEL PUMP - 4 VALVES
• *STD ENG COOLING FAN / STANDARD ENGINE COOLING FAN
• *150 AMP_Alternator / 150AMP ALTERNATOR
• *Engine Speed Management / Constant Engine RPM (CERPM) Functions / Allows operator to set and switch between two engine RPM / set-points / Switches located on RH console
• *Grid_Heater / -18F (-10C) to -32.4F (-18C)
• *STD DTY MECH ISOLAT / Standard Duty Battery (140AH) Mech Isolator
• *Std Fuel Tank+Guard / Includes fuel tank guards / Capacity - 55.4 Gal (210L)
• *40KPH_16X16_L/Autoshift / 25 MPH (40 KPH) / Does not include autoshift functionality
• *LESS RADAR
• *L/ Pneumatic Trailer Brakes / L/PNEU TRAILER BRAKE
• *Less trailer brakes / LESS TRAILER BRAKE
• *Less Front Linkage / L/FRONT LINKAGE & PTO FOR STD FRONT AXLE
• *STD L/ 7P PLUG ON FHPL SUPP.& 3P POW.SOCK.40AMP
• *LESS TUBES FOR FHPL
• *EDC Base Hydraulic Lift Cyl. / 3-Point Hitch Capacity with two 80mm lift cylinders / 6,990 lbs. (3,170 kg) OECD rated lift capacity / through the whole range per Nebraska Tractor Test
• *Cat II/III Flex Links / Telescopic link ends
• *80L/Min Fixed Displacement Pmp / Fixed Displacement Pump / / Max flow available @ remotes (combined flow) or / power beyond (l/min) considering 90% efficiency- 19.3gpm (73 l/m)
• *2 Mech Rear Remote Valves (2C) / 2 mechanical; configurable rear remotes
• *Low-Pressure Return / Low pressure return line with 1/2" hydraulic quick coupler. / ISO 7241 Series A hydraulic quick coupler, non-flat face design. / Does not include load sense line / Requires male end on implement 83972881 (CNH Industrial Parts)
• *Less Auto PTO / L/AUTO PTO
• *Class 3, L/Brakes / Class 3 less brakes
• *380/85(14.9)R28 A8 / Brands: Mitas, Firestone, Michelin, Trelleborg / Requires 460(18.4)R38 R1W
• *HD Flange Multi-Diff / Axle: HD Flange- 56.3"-84" (1430 mm - 2134 mm) / Differential: Hydraulic / Wheel: Steel Wheel Rims
• *460/85(18.4)R38 R1W-MIFITRCO / Brands: Trelleborg, Bridgestone, Firestone, Mitas
• *Fender Mounted Controls / Fender mounted switches for rear PTO and rear three-point hitch / for operation from outside cab
• *Less front fender
• *Standard Fenders / 85.4 in (2170 mm) overall width
• *Loader Ready + 2Mech MMV +Joy / Complete Loader Ready includes / TPS Mount Bracket Set (with Grill Guard) and / Mid Mounted Valve - 2 function mechanical / (Includes valve, mech joystick, cables, & hose kit)
• *BASIC MECH JOYSTICK
• *2 MECH MMV / 2 SLICE MECH MMV
• *Tow Hook-Only / Tow Hook 251 lbs/114 kg / Not allowed with Front hitch (743699 or 743700)
• *L/Wheel Weights
• *Std. Heavy Duty Brake Discs / STD HEAVY DUTY BRAKE DISCS
• *Less ISOBUS Socket / L/ISOBUS SOCKET
• *Large Toolbox / 5.5 in. x 16.5 in. (140 mm x 420 mm) / Great for larger tools, like hammers and larger wrenches
• *Less Headland Control System / LESS HTS
• *Tire brands are subject to availability. / If the Tire Brand Preference Code is ordered, the plant will / install the brand selected. / / If no Tire Brand Preference is selected, a tire from existing / inventory will be installed. This will include one of the following brands in the chosen tire size: Michelin, Firestone, Trelleborg, Alliance, or Mitas. /
• *No Additional Operator Manual / No Spanish Operator Manual
• *NASO COLD CONFIG
• *NAR Configuration
