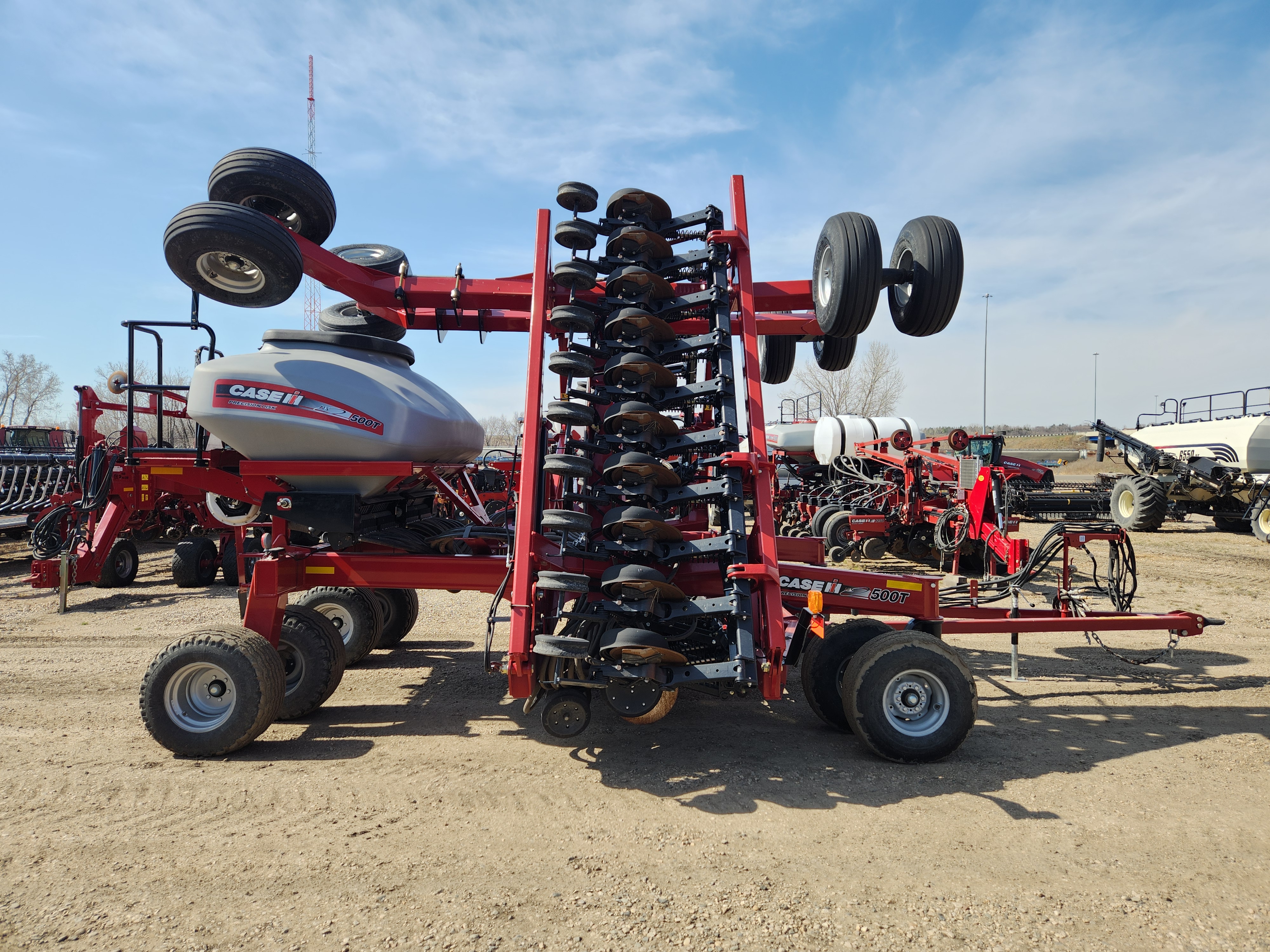

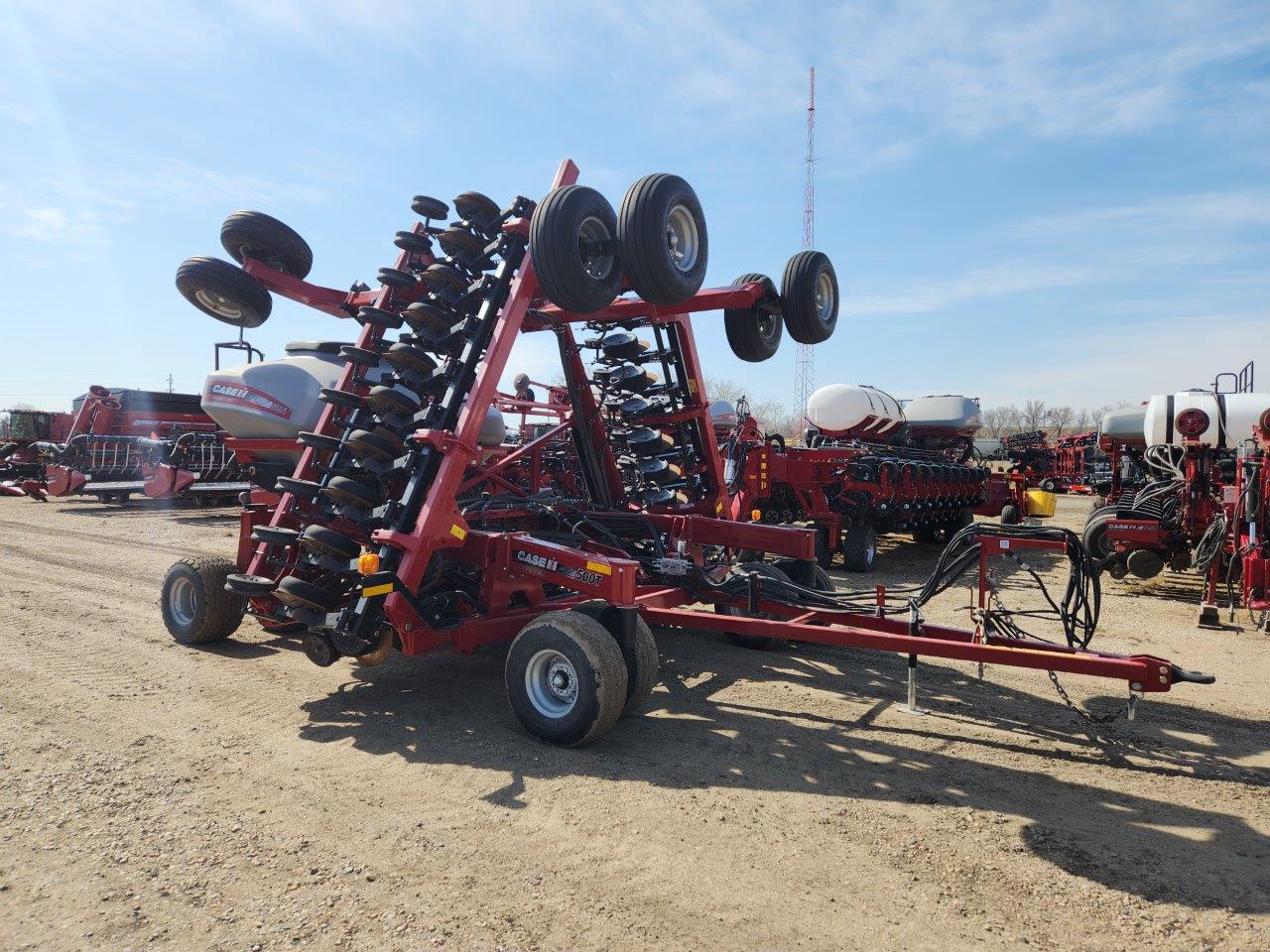

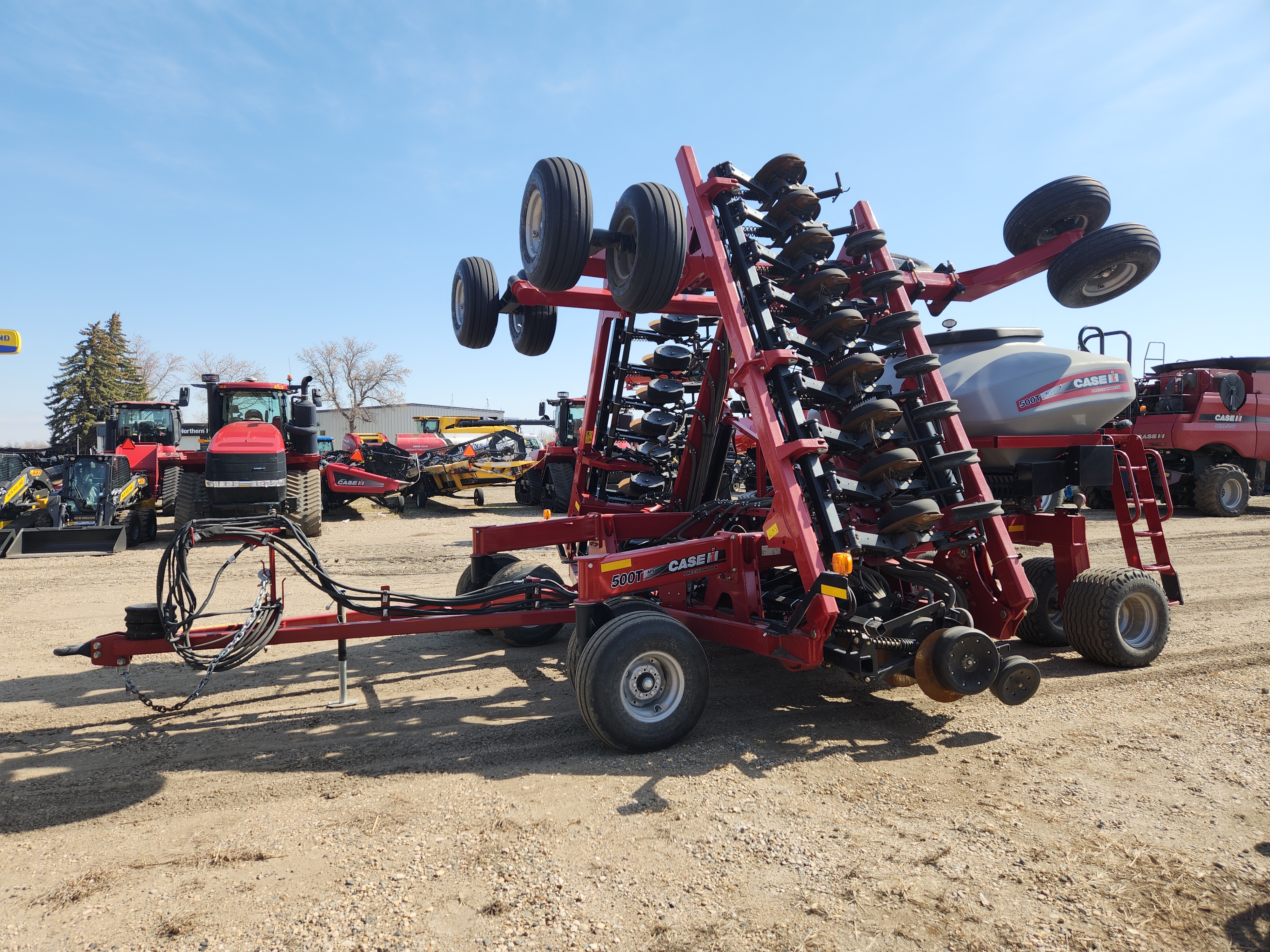

2022 Case IH PD500T Air Drill

$172,000.00 USD
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill
2022 Case IH PD500T Air Drill

Usage

  • Acre Meter: 2720.0

Sizes

  • Width in Feet: 40.0 '
  • Row Spacing in Inches: 15.0 "
  • Tank Size in Bushels: 100.0 bu

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

  • *PREC DISK 500T
  • *MT-15 / 15 inch Spacing package / / package includes: / high floatation tires, in-cab downpressure, tank fill lights, / standing calibration, coarse meter rolls, weight brackets, / and hydrauilc work switch / / Selectable Options: / Weigh scales, display, closing wheels, press wheels, / scrapers, and setup location
  • *Weigh Scale / weight viewed from the cab and platform display
  • *7.5 in. spacing w/4S GPS Mtr / Note: Pro 700 Requires AFS Activation Fee, Order thru Parts: / 47441493 – Software, ISO Task Controller UNLOCK NAR / In order to use the 4 Section GPS-based overlap control, three / things are needed external to the disk drill: / - GPS receiver must be installed on the tractor / - The in-cab display must be loaded with the precision farming / software (PF DLL and ASApplied DLL) as well as the / TaskController software (TaskController DLL) / - USB flashdrive
  • *High Flotation for 30 - 40 ft. / Stubble resistant tires all locations. 18L x 16.1 dual wheels on / walking tandems for rear of mainframe. 12.5 x 15 dual wheels on / walking tandems for front of mainframe, front and rear of each / wing. Qty 16 total.
  • *In-cab downpressure adjust / Down pressure is set via in-cab display (Pro700) and electronically adjusted to maintain set point; in-operation down pressure / adjustment capable.
  • *SCRAPERS
  • *Hydraulic work switch / Recommended. Automatically switches meters on/off when / row units are raised out of the ground.
  • *Weight brackets / Wing section two brackets / Note: Order weights through Parts (#86988727) / Maximum allowed 1200 lbs. Total; 600 lbs. on each wing
  • *No display monitor
  • *Coarse - 1 / Order additional meter roll assemblies in Factory Supplied / Accessories
  • *100BU 4Sec stnding calibration / Stationary Calibration package includes switch and shielding / needed for performing calibration without operating the / unit in the field. For 4-section overlap control Precision / Disk 500T, 40 ft. machines.
  • *TANK FILL LIGHTS
  • *STD GAUG WHL 15IN SP / STANDARD GAUGE WHEEL 15IN SP
  • *STD PRES WHL 15IN SP / STANDARD PRESS WHEEL 15IN SP
  • *40 ft. 7.5 in. 4 Sect XFine Ro / 1
