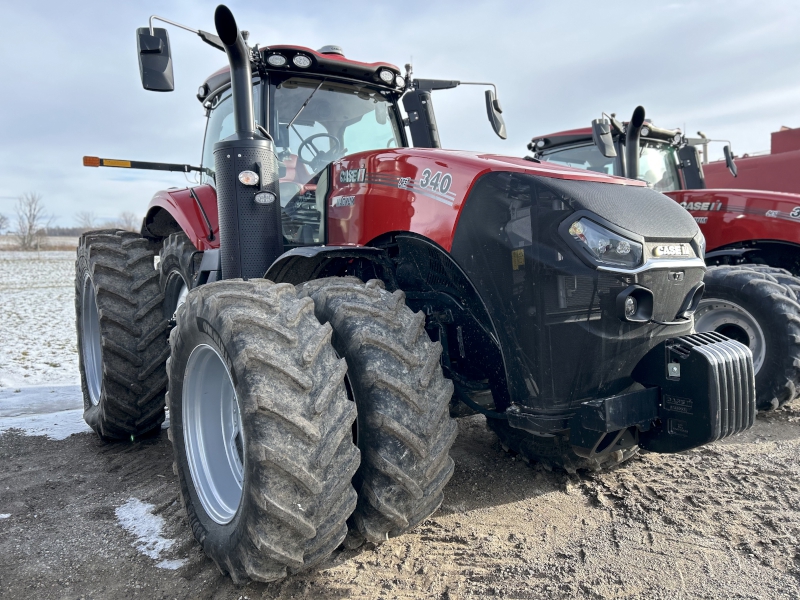

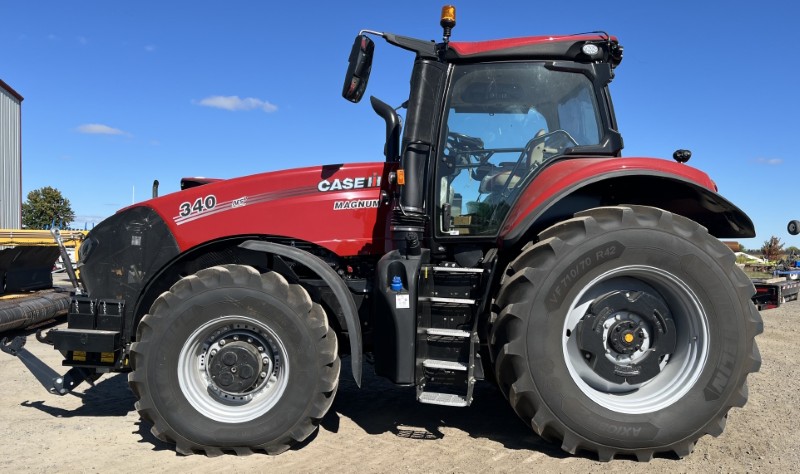

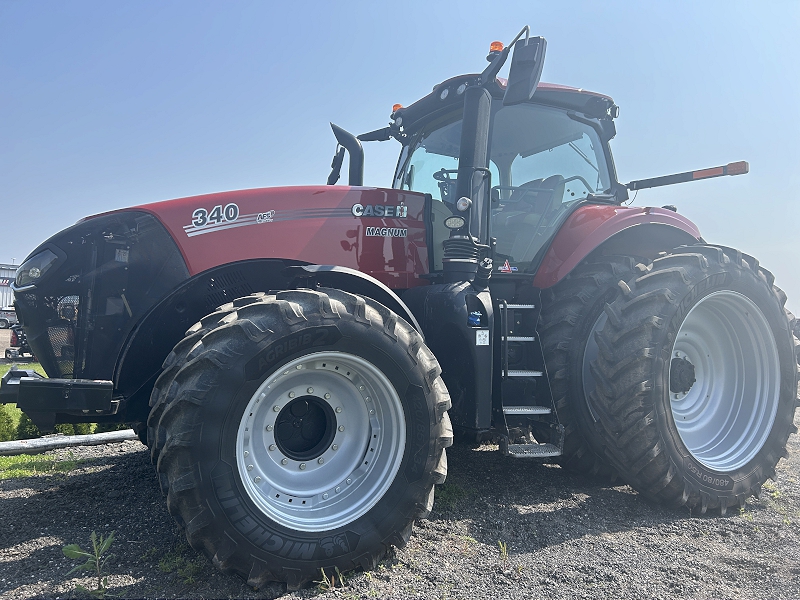

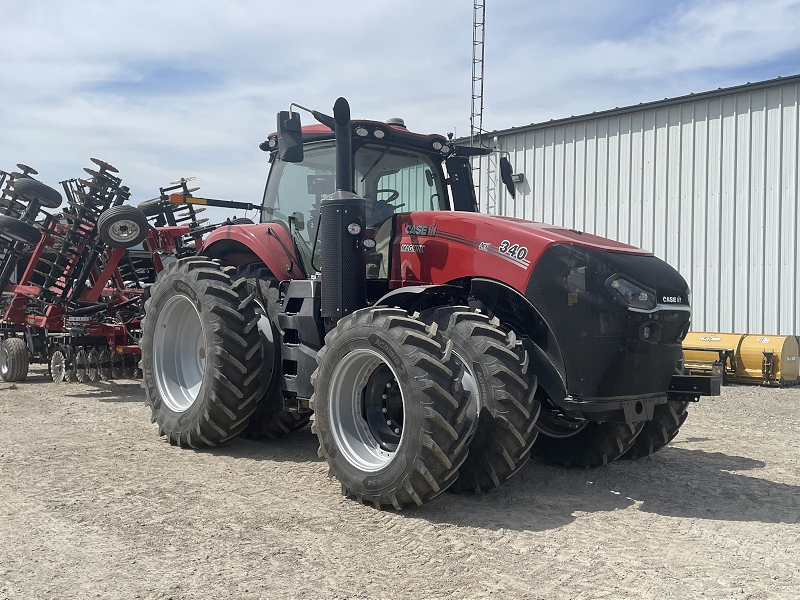

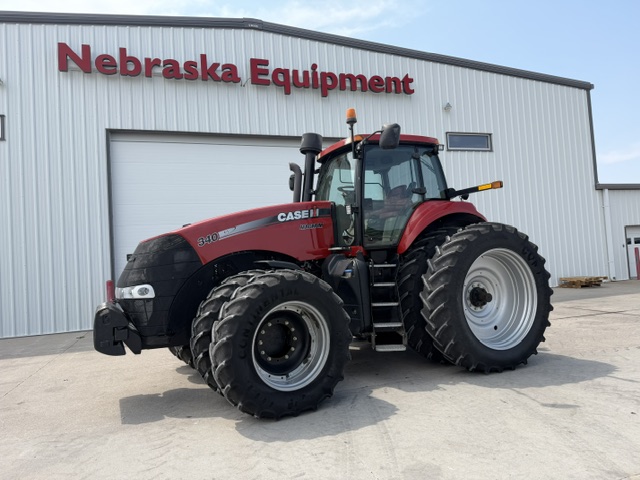

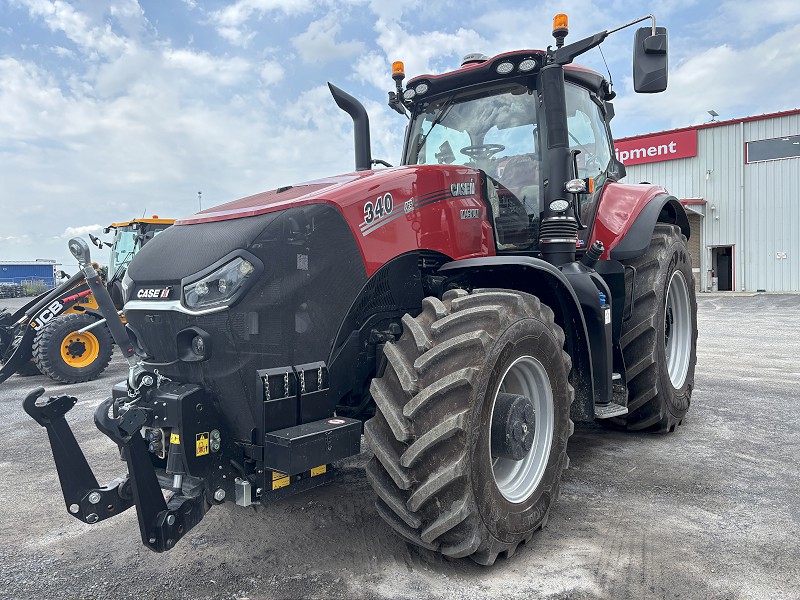

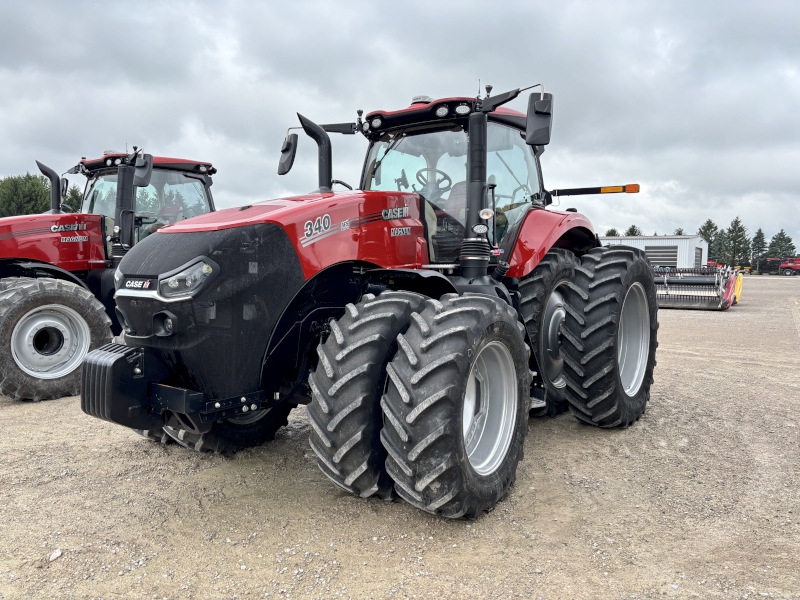

2022 Case IH MAGNUM 340 Tractor

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

• RT, LuxCab, PS / Selecting a Package will remove Custom premium price / / Included: / / Powershift Transmission, Engine Compression Brake, Engine/ / Trans heater, Undercarriage Scrapers, Wide Rear Fenders, Less / Front Fenders, True Ground Speed Radar, AFS Pro 1200 Double / Mount, AFS CONCT 5ADV FT, Autoguide Ready, Powerbeyond, / Cat 4 Drawbar, Dual Beacon, 360 LED Lights, Electric Adjust / Mirrors, 6 Paddles, ISO Bus Class 2 / / Selectable Options: *Some selections are Limited for choice* /
• AFS VectorPro High, w/NTRIP - GPS Receiver / includes High accuracy upgrade capable of running radio or / cellular based RTK correction signals / 1 year NTRIP subscription included to run choice of cellular Correction
• AFS Pro 1200, Double Mount / AFS Pro 1200 - 12" Display on Armrest / with 2nd display harnessing to headliner connection / Primary Display - Machine Ctrl, AFS Connect Ready
• TEL 5YR SUB FT RDY / AFS CONNECT ADVANCED TELEMATICS - / 5 YR ADVANCED/PROFESSIONAL + FILE TRANSFER
• ISO BUS Class II is ISO BUS III capable, requires unlock
• PCM 4G USA / 4G P&CM controller for USA Market / Verizon SIM / This device provides optimal coverage in a large majority of / the USA, however for areas with poor or no Verizon cellular / coverage order 429554. NOT FOR CANADIAN MARKETS
• LUX Semi Active Cab Suspension / Active Cab Suspension | Luxury Cab Equipment | / Tinted Glass | Multi-Power strip | Carpet | Leather Semi-Active / Heated and Ventilated Operator Seat | Leather Instructor Seat | / Radio Delphi AM/FM/XM Weatherband with CD and Bluetooth | / Business Band Antenna | 2-way Armrest Adjust | Front, RH, and / Rear Sunshades | Electronic Telescoping/adjustment External / Mirrors with Heat | Camera Ready with front and rear Cameras | / Additional power ports | Accent lig
• BRAKE ASSIST STEER / BRAKE ASSISTED STEERING
• 360 Work Lamp Package / Halogen hood lights with LED cab lights / 8 Cab Roof (1400 lumens) LED lights (2 per corner) and / 2 Beltline (2500 lumens) LED Lights (1 per side) / 2 Rear Fender (5000 lumens) LED lights (1 per rear fender) / Two "360" side (2500 lumen) lights (1 per side) / / 360 Work lamp Hood Lights / 2 LED hood mounted Road Lights / 6 LED hood mounted Work lights (2 forward spots and / 4 side flood Lights) / 2 LED signature Lights
• STD L/HI MNT RD LGHT / STD L/HIGH MOUNT ROAD LIGHTS
• Dual Beacon Light / two beacon lights, mounted on the LH and RH sides / with backup alarm
• Engine Block, Trans Heater / 120V
• 18F Speed Full Powershift / 4R - 25 mph / 40 kph capable / Not compatible with row spacing 136”spacing and wider
• True Ground Speed Sensor / Optional with full powershift transmissions only. Standard equipment / with CVT transmission and cannot be ordered with CVT models.
• No hydraulic trailer brakes
• Cat IV High Capacity Drawbar / Adj. Drawbar with 2.0"/50mm auto-pin hammerstrap / with hitch pin 11,000lb / 4990 kg max tongue weight
• Less Front hitch and PTO / Note: Front PTO cannot be field installed later with this selection.
• HD Cat 4N/3 HydTop Link / Includes quick coupler and Hydraulic Top Link / Quick coupler cannot achieve Cat 3N setting / Lift Capacity 19,900 lb/ 9,023 kg OECD
• MEGA FLOW 2 HYD SYS / Twin pump configuration supplies 56 gpm to the left / stack of couplers and 30 gpm to the right stack of / couplers – configure implement hook-ups to utilize all / available flow
• 6 EHR Paddles on the armrest
• Power Beyond/Motor Return Valv / 3/4 in. motor return valve and 3/8 in. case drain
• 1000 RPM PTO Shaft / 1000 RPM, 1-3/4 in. diameter
• Class 5 Wide Suspended Axle / 12 bolt hub front axle with electronic differential lock / Compatible with single tires spaced at 72” to 120” (spacers may be required) / NOT Compatible with dual tires / NOT compatible with REAR track spacing greater than 120”
• Michelin /
• VF650/65R34 R1W
• No duals / Assumes singles are ordered / Cannot be ordered with No Front Singles (XT4940X) / / FRONT DUAL WHEELS REQUIRE SPACER SELECTION IN / OTHER EQUIPMENT SECTION / Match Tires to Intended Application - refer to applicable tire manufacturer's handbook for load carrying capacities and / additional application information.
• Standard Rear Axle (see model contents)
• 24" Camso 3500 / 24 INCH REAR TRACK SYSTEM - WIDE CS
• Standard less front fenders
• Wide 100.4 in./2550 mm / Includes Auto PTO function and fender-mounted hitch / and PTO controls with hitch option
• NO TIRE PRESSURE MONITOR SYSTEM
• FWF and 18x120 front wts / Large front weight frame and 18-120 lb/54 kg front weights. / Not recommended with use of 120" and wider spacing
• 120" Track Spacing Single / Used for Fitment of Single Front Tires / Provides Factory Installed Rear Spacers for 120” Tread Spacing / Compatible with 16”, 18”, 21" and 24” Tracks / Requires Class 5 Wide Axle code 429379 or 429380 / Ships with Front Axle Spacers and Wide Marker Lights
• Less Rear Tread Spacing / STD L/REAR TREAD SPACERS
• NO SELECTION
• North American English
